Power Mirror Circuit Diagram

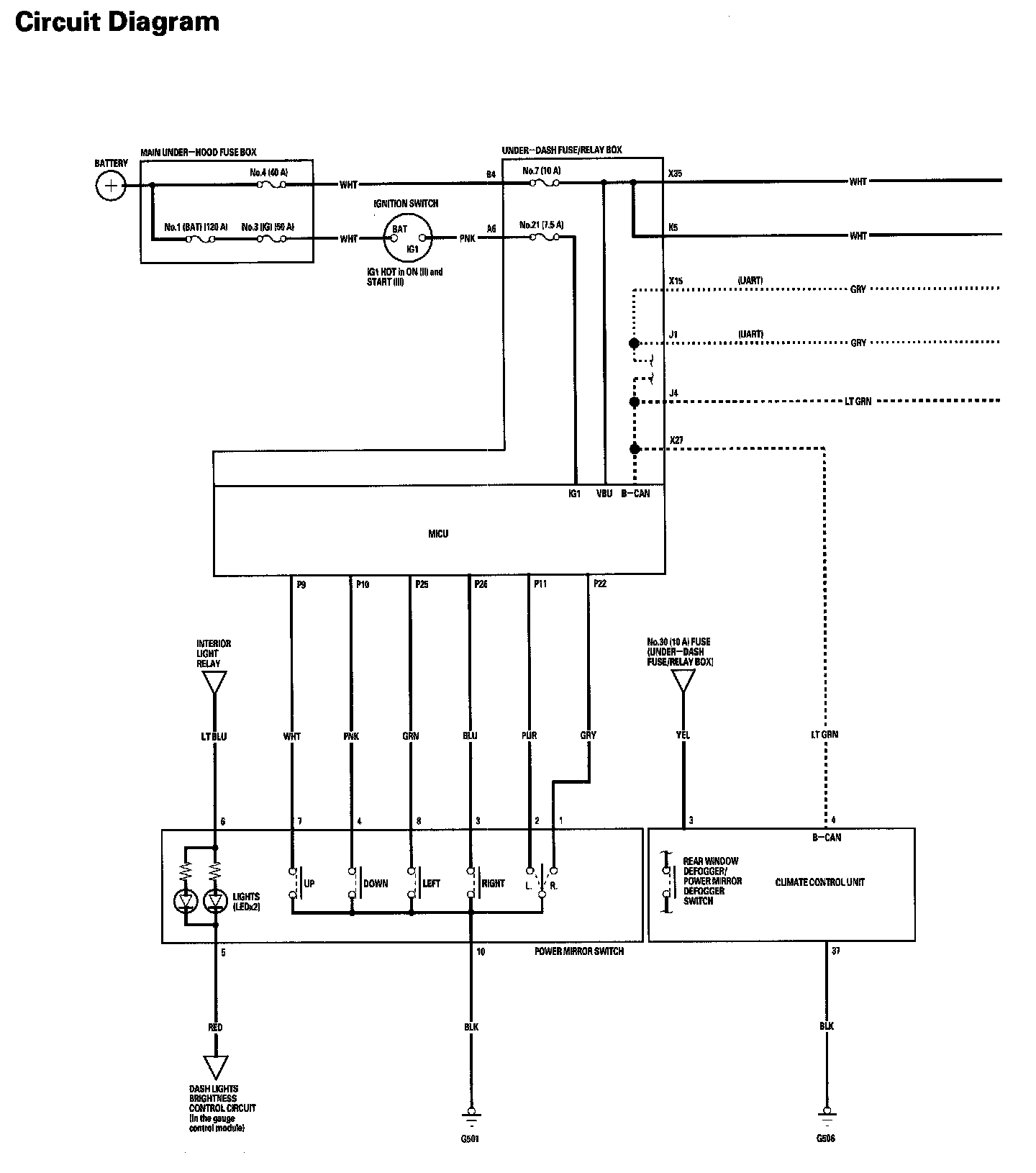

Power Mirrors Circuit Diagram Part 1:

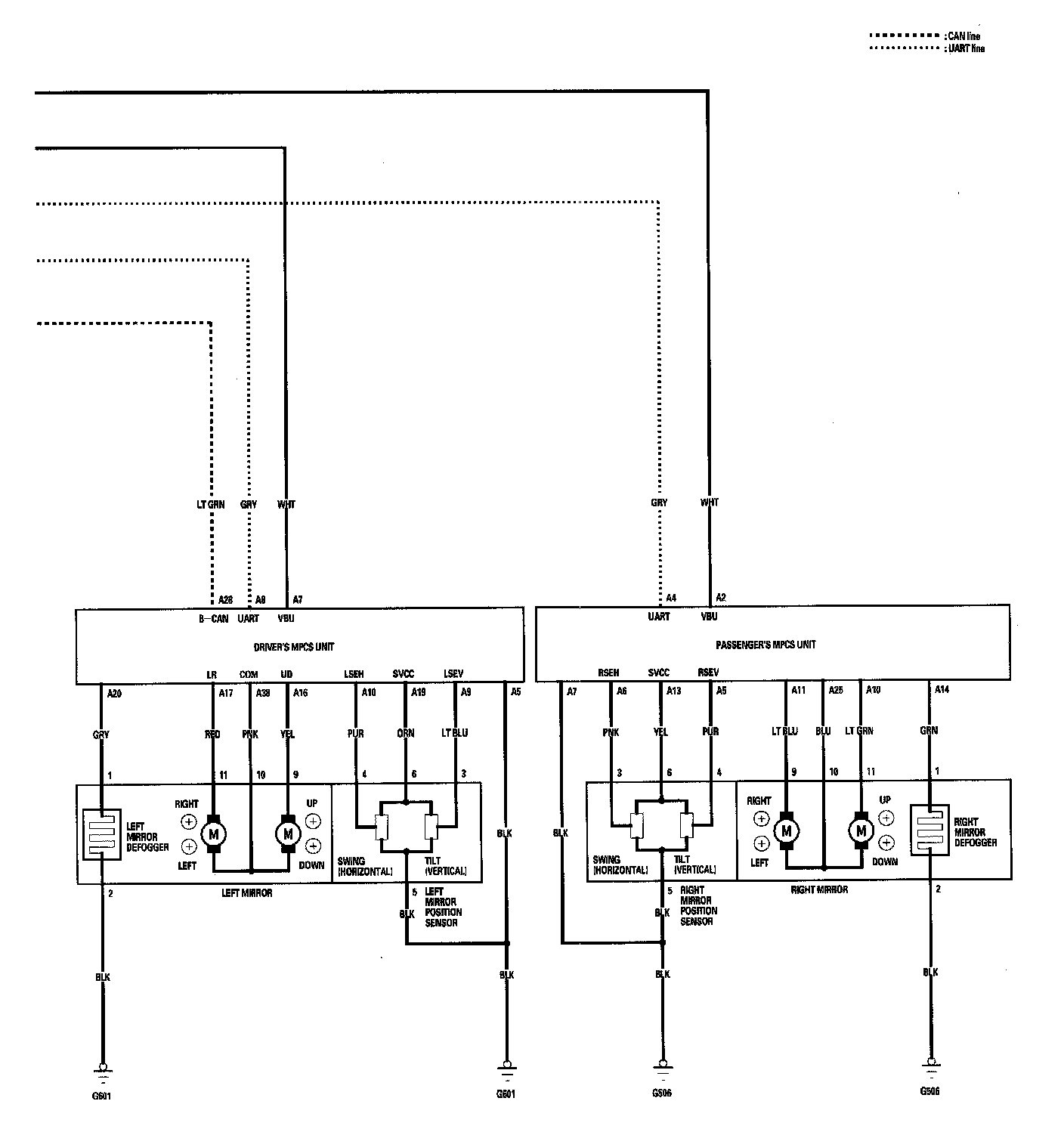

Power Mirrors Circuit Diagram Part 2:
