Entry Lights Control System Control Diagram

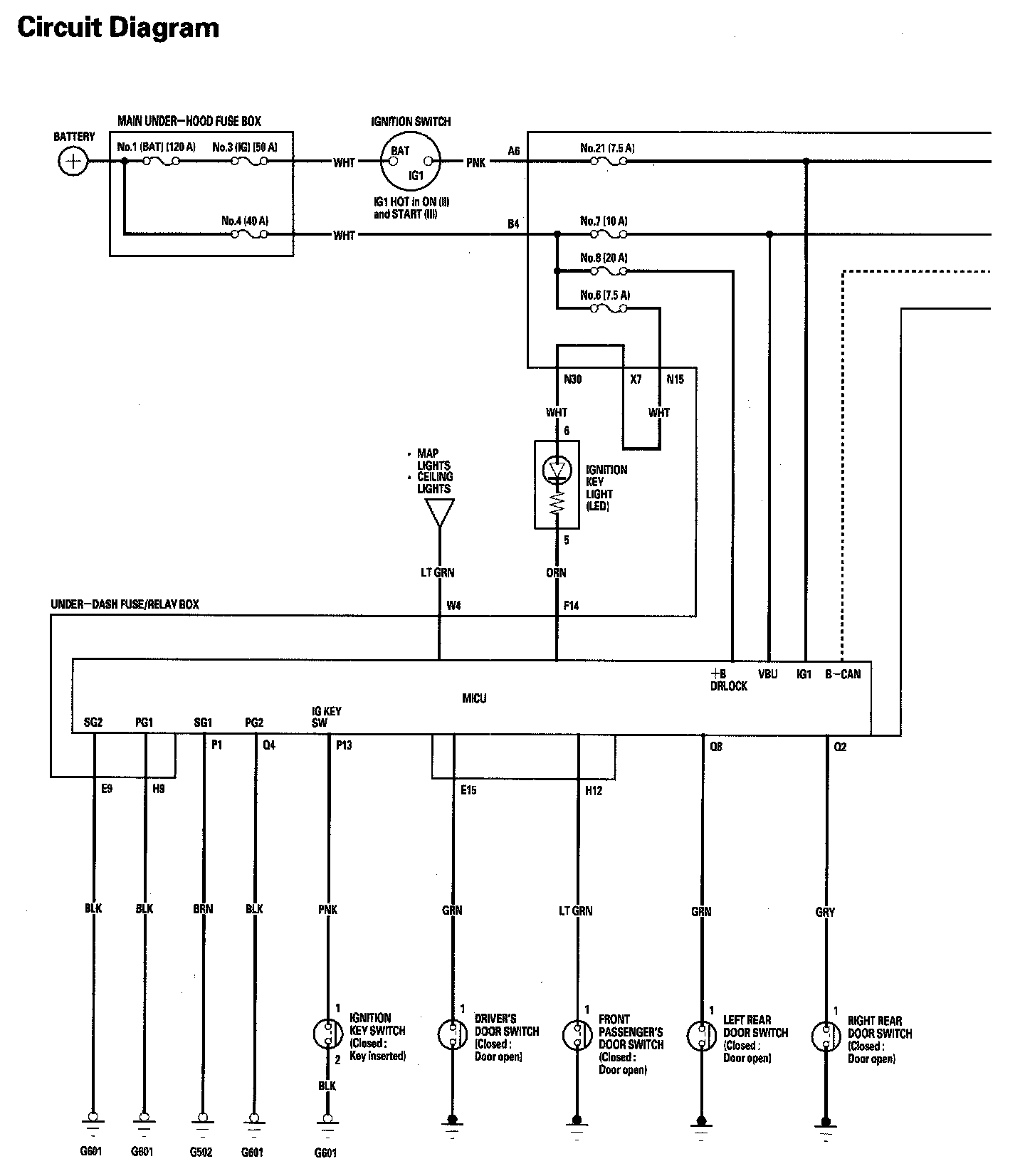

Entry Lights Control System Circuit Diagram Part 1:

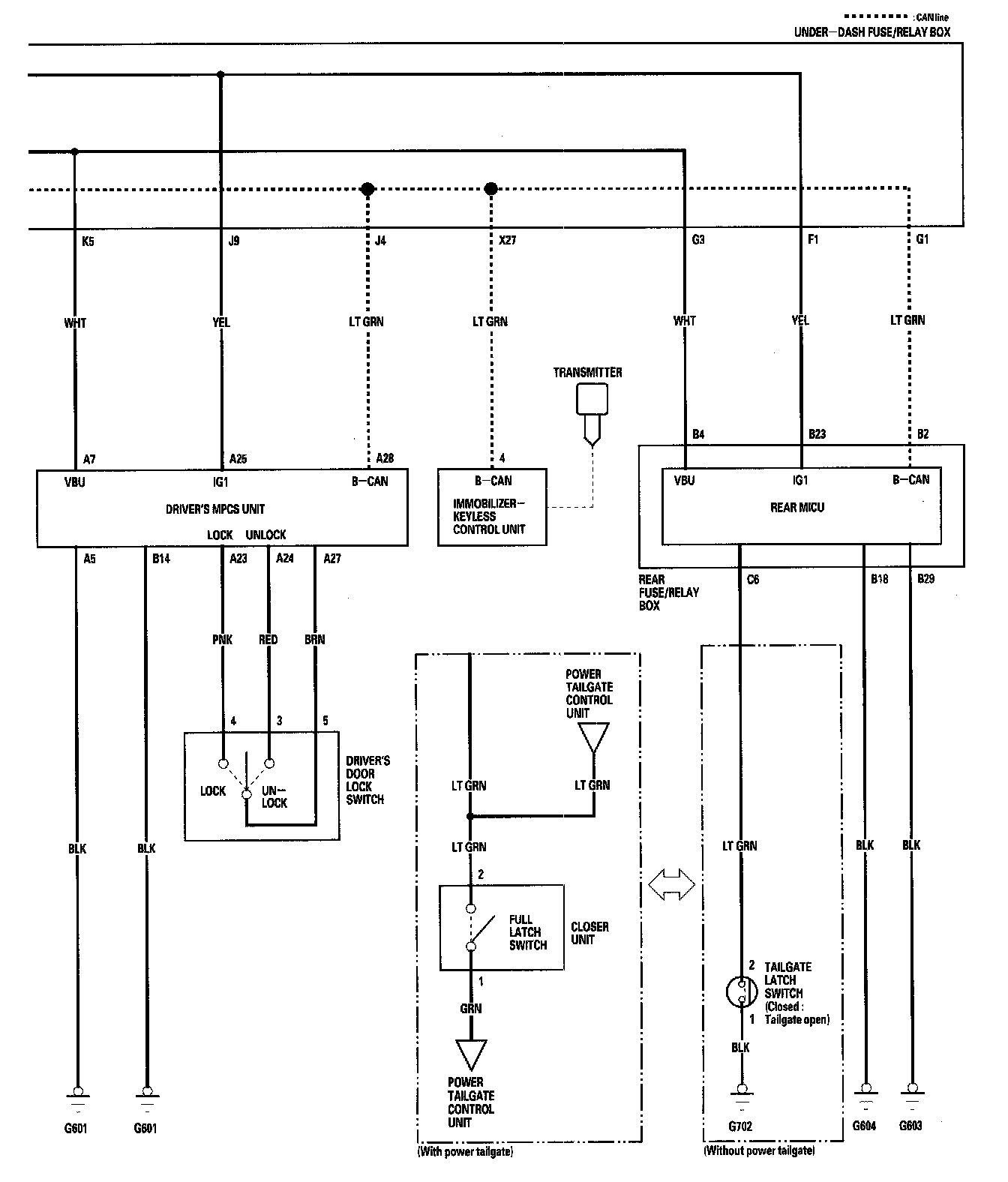

Entry Lights Control System Circuit Diagram Part 2:
