Reminder Systems Circuit Diagram

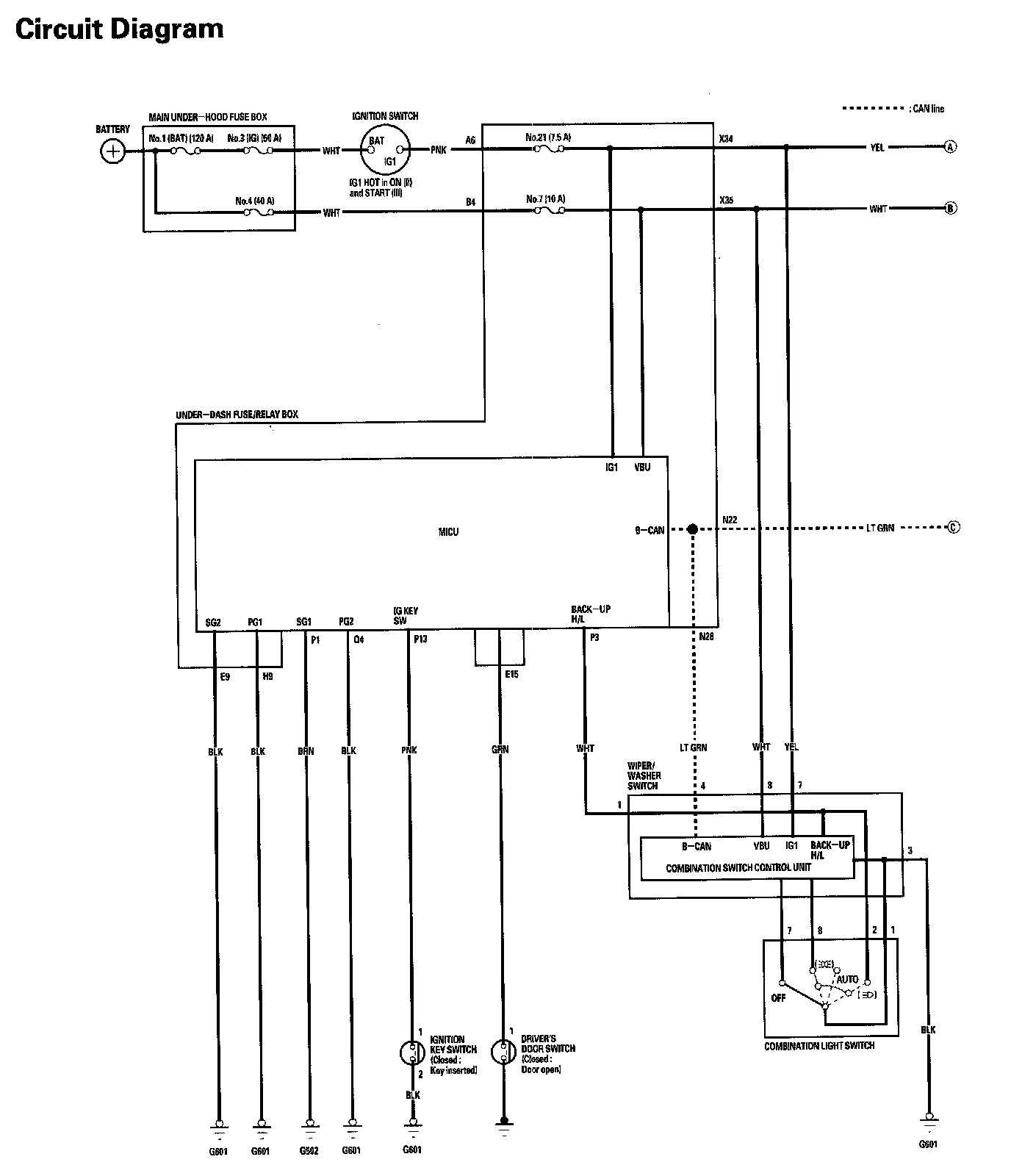

Reminder Systems Circuit Diagram Part 1:

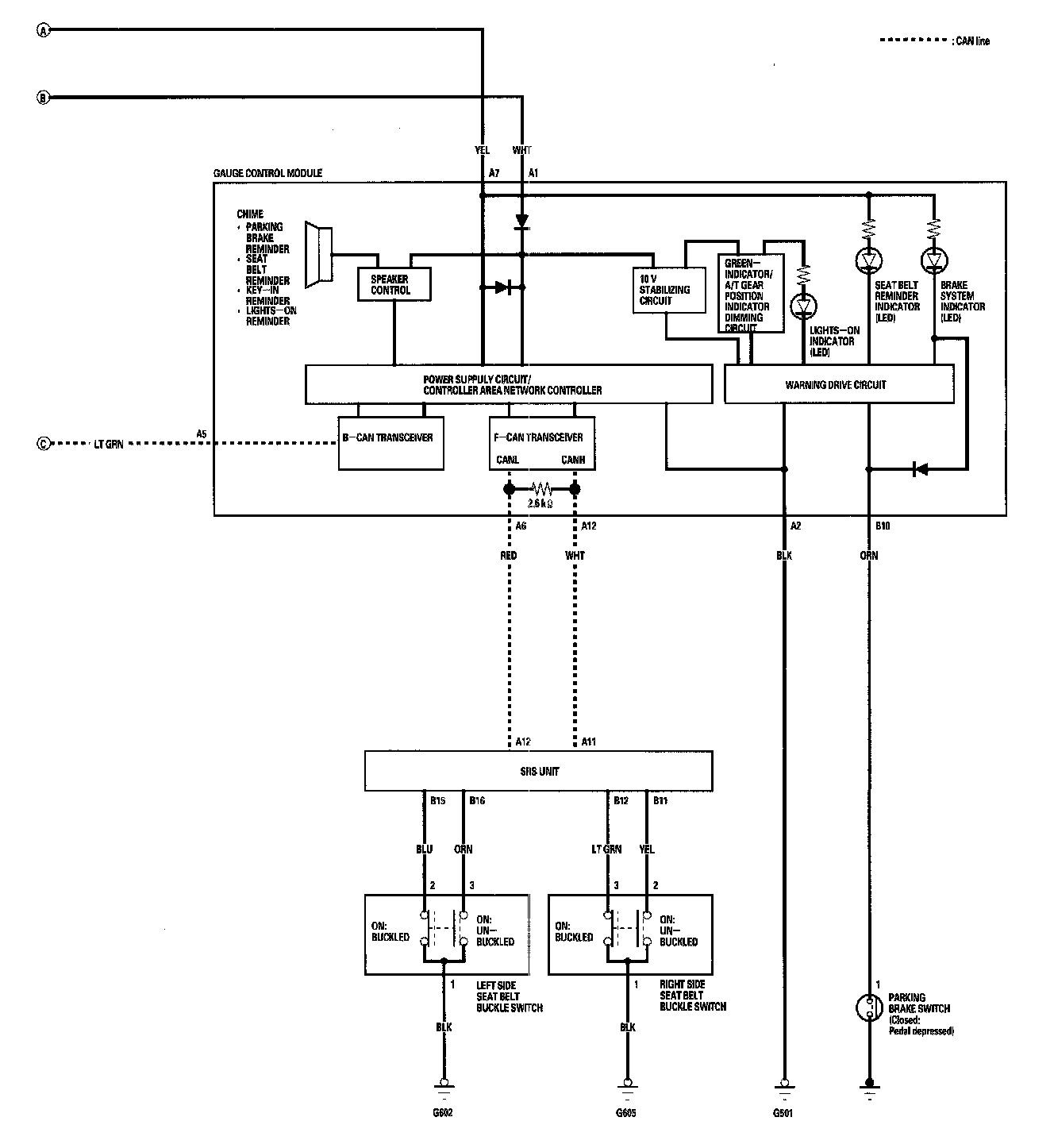

Reminder Systems Circuit Diagram Part 2:
