Climate Control Circuit Diagram

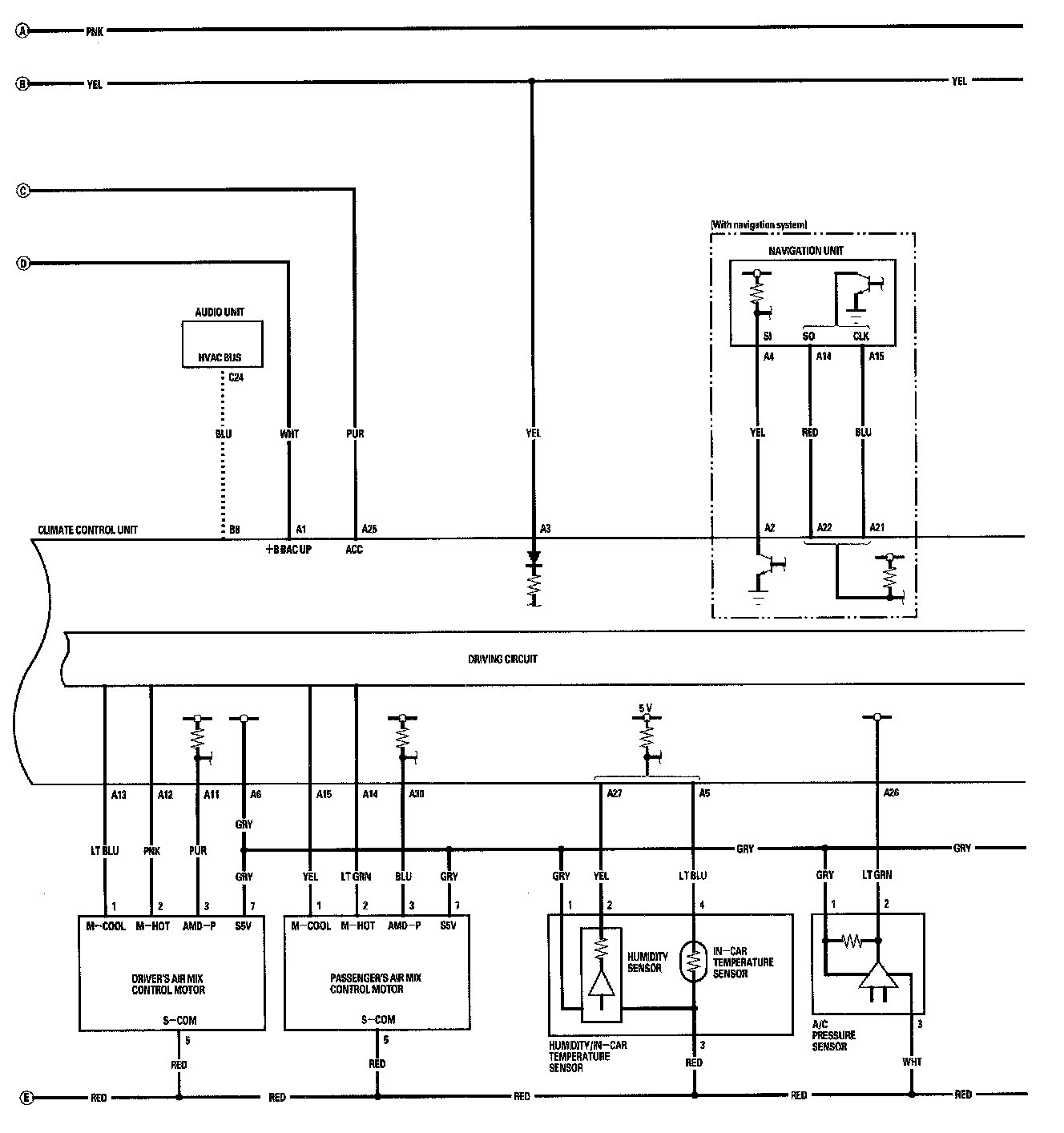

Climate Control Circuit Diagram Part 1:

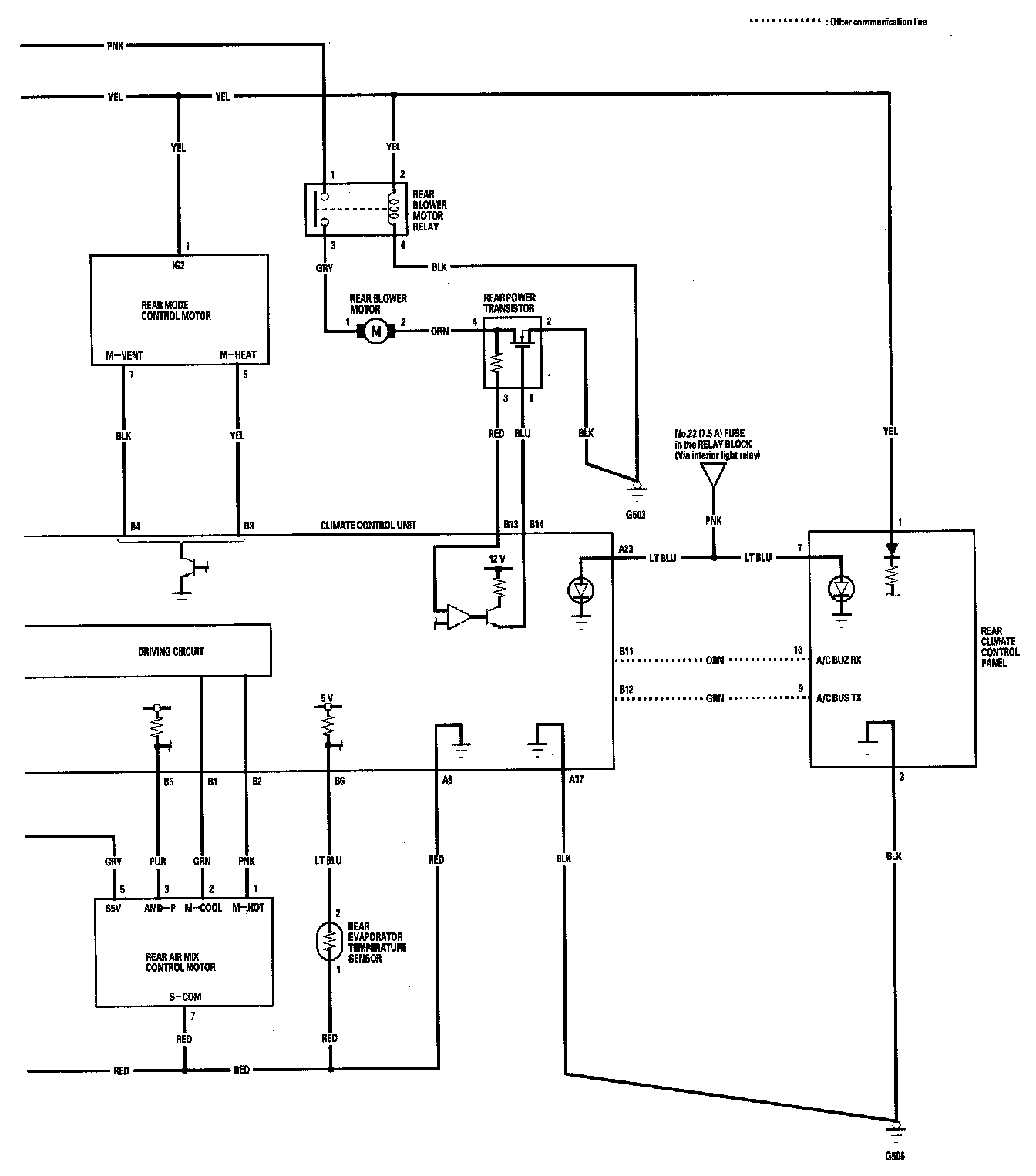

Climate Control Circuit Diagram Part 2:

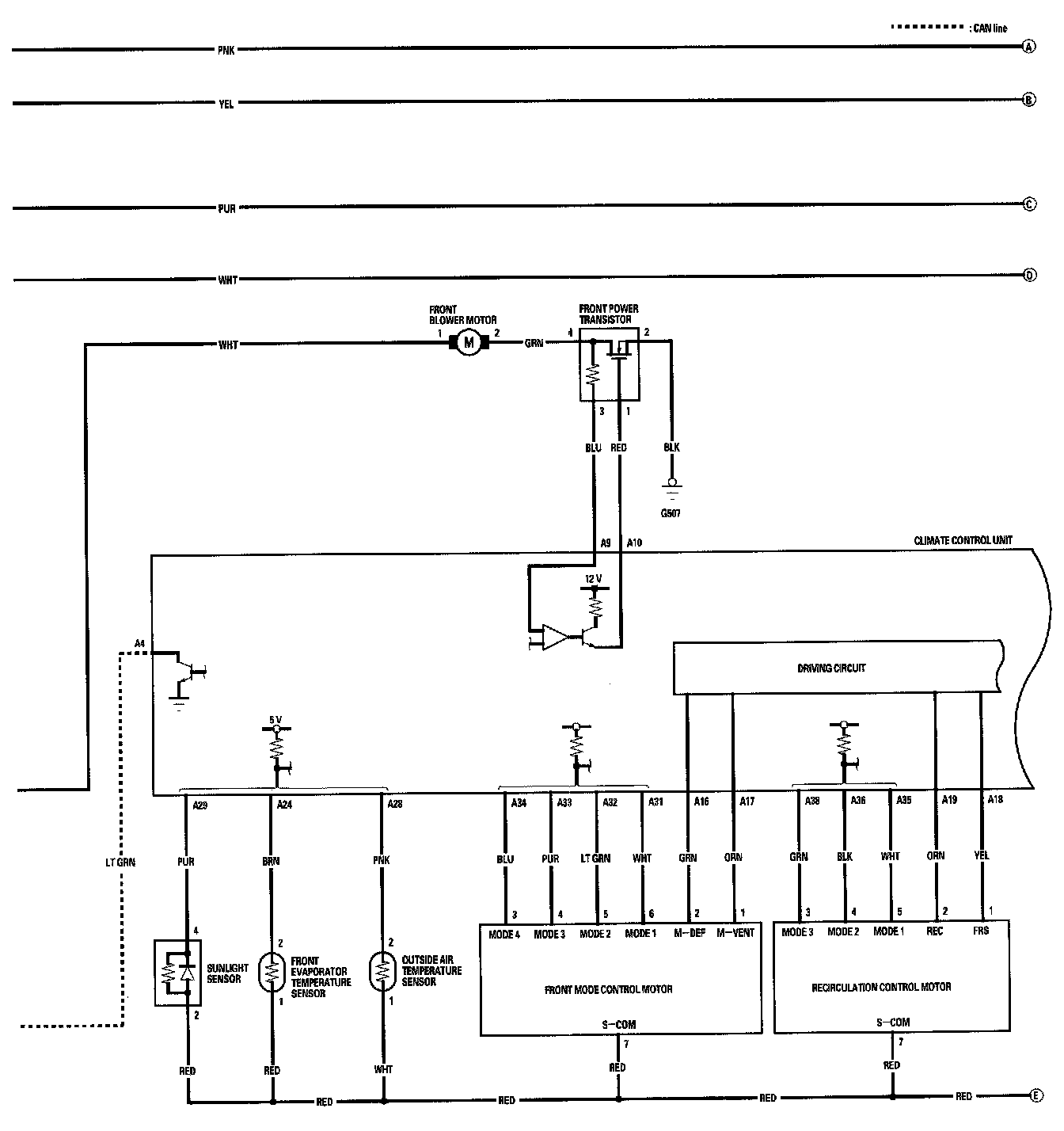

Climate Control Circuit Diagram Part 3:

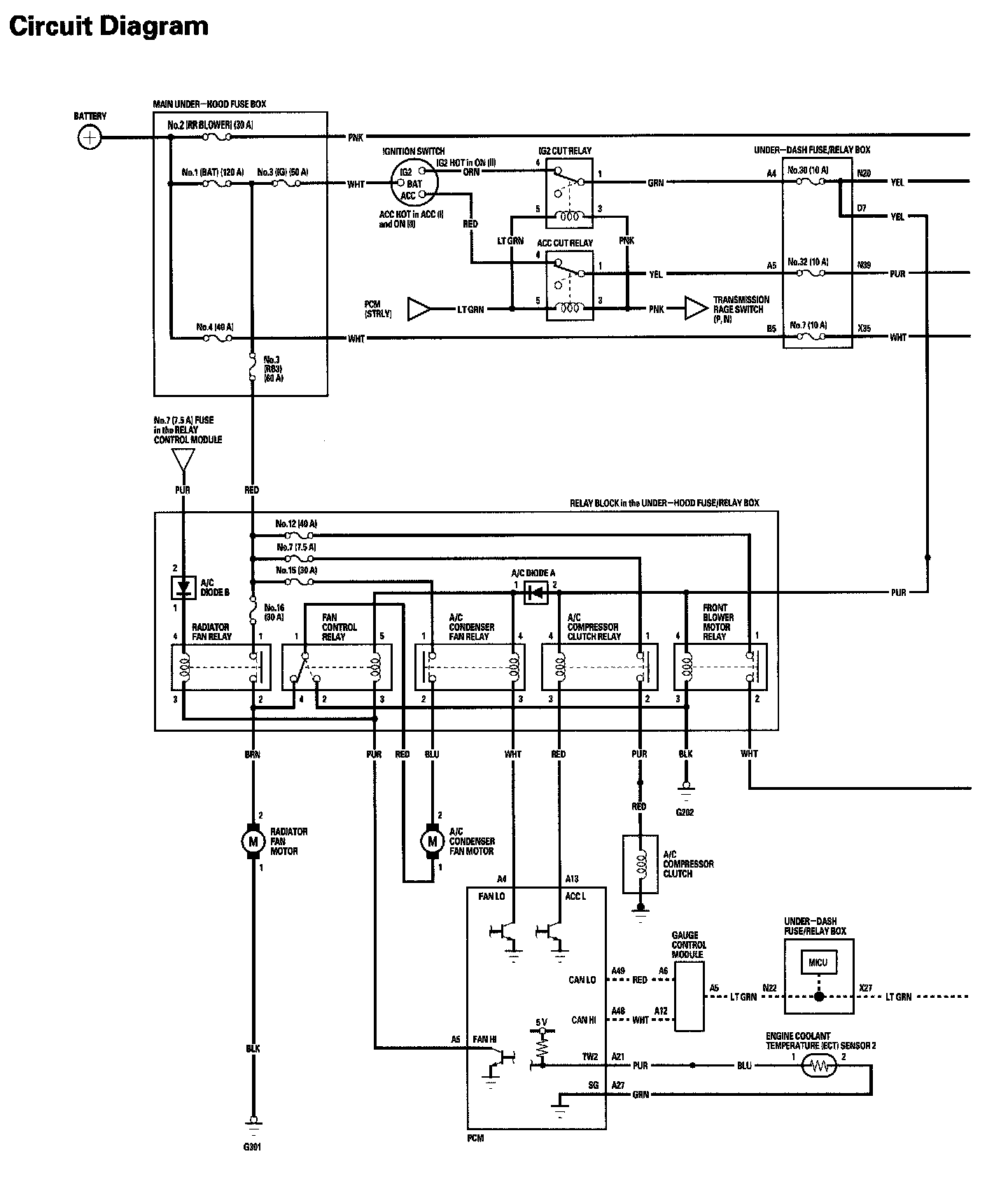

Climate Control Circuit Diagram Part 4:
