Diagram Set 42 (ADS (Active Damper System))

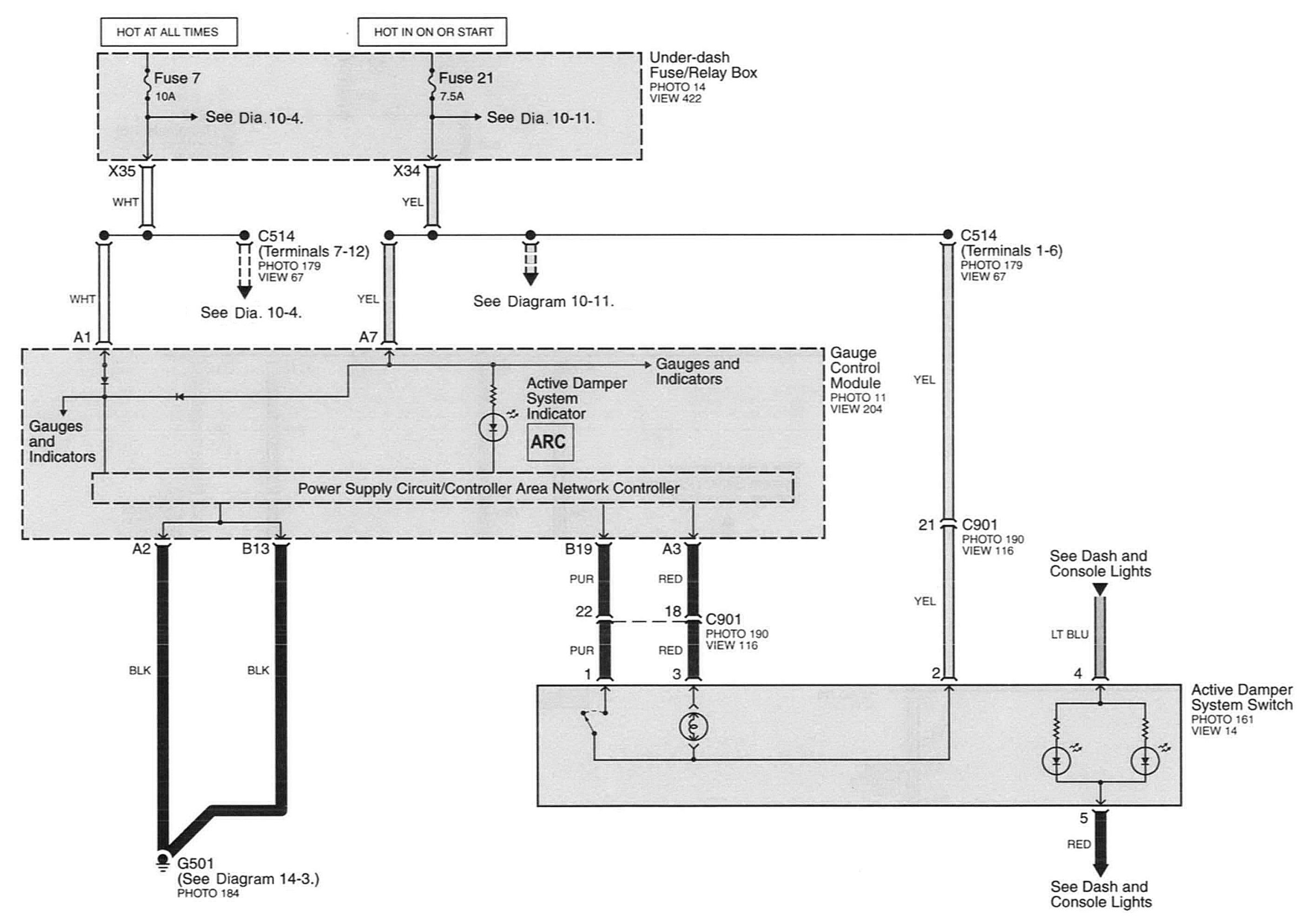

Diagram 42-0:

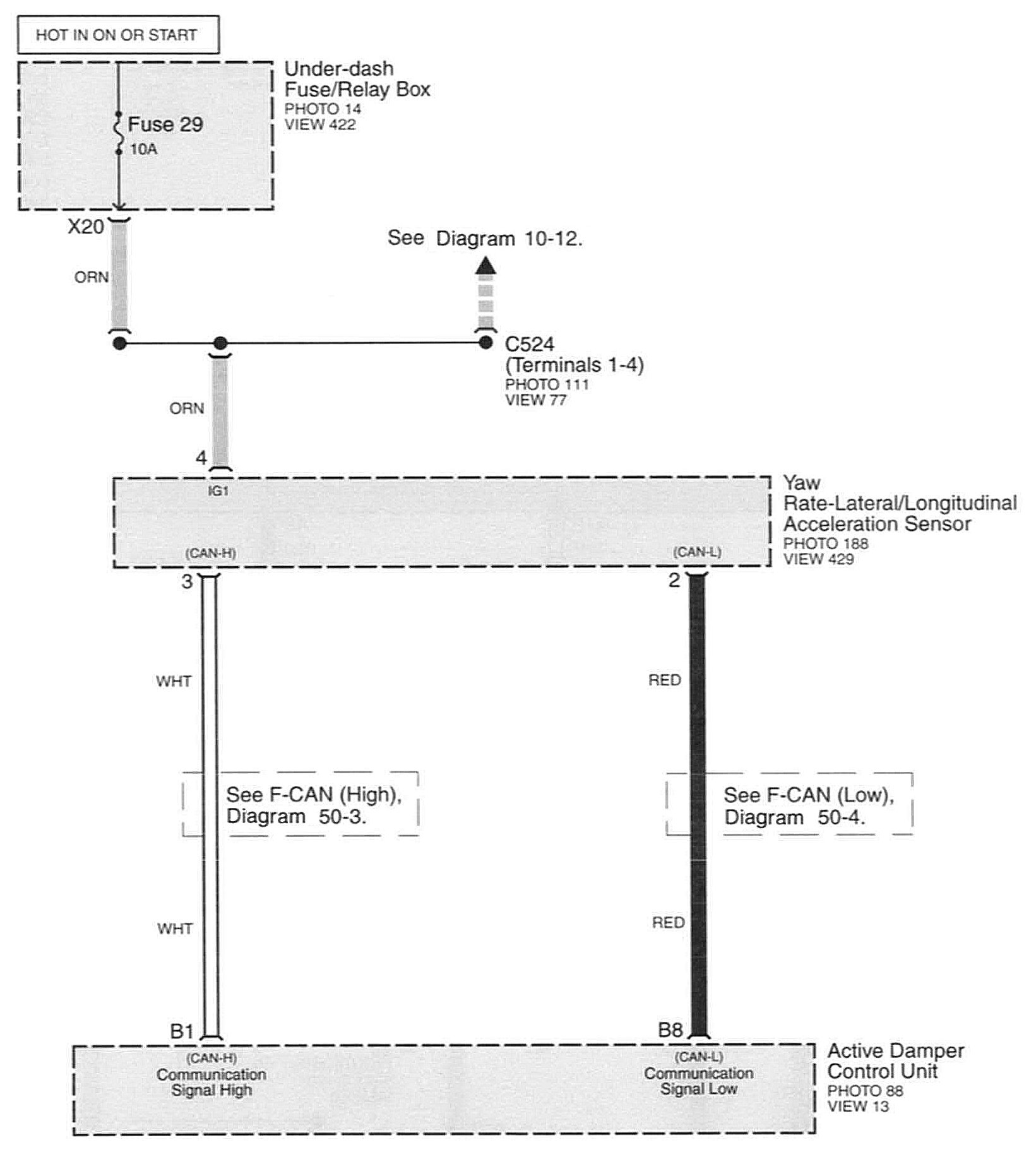

Diagram 42-1:

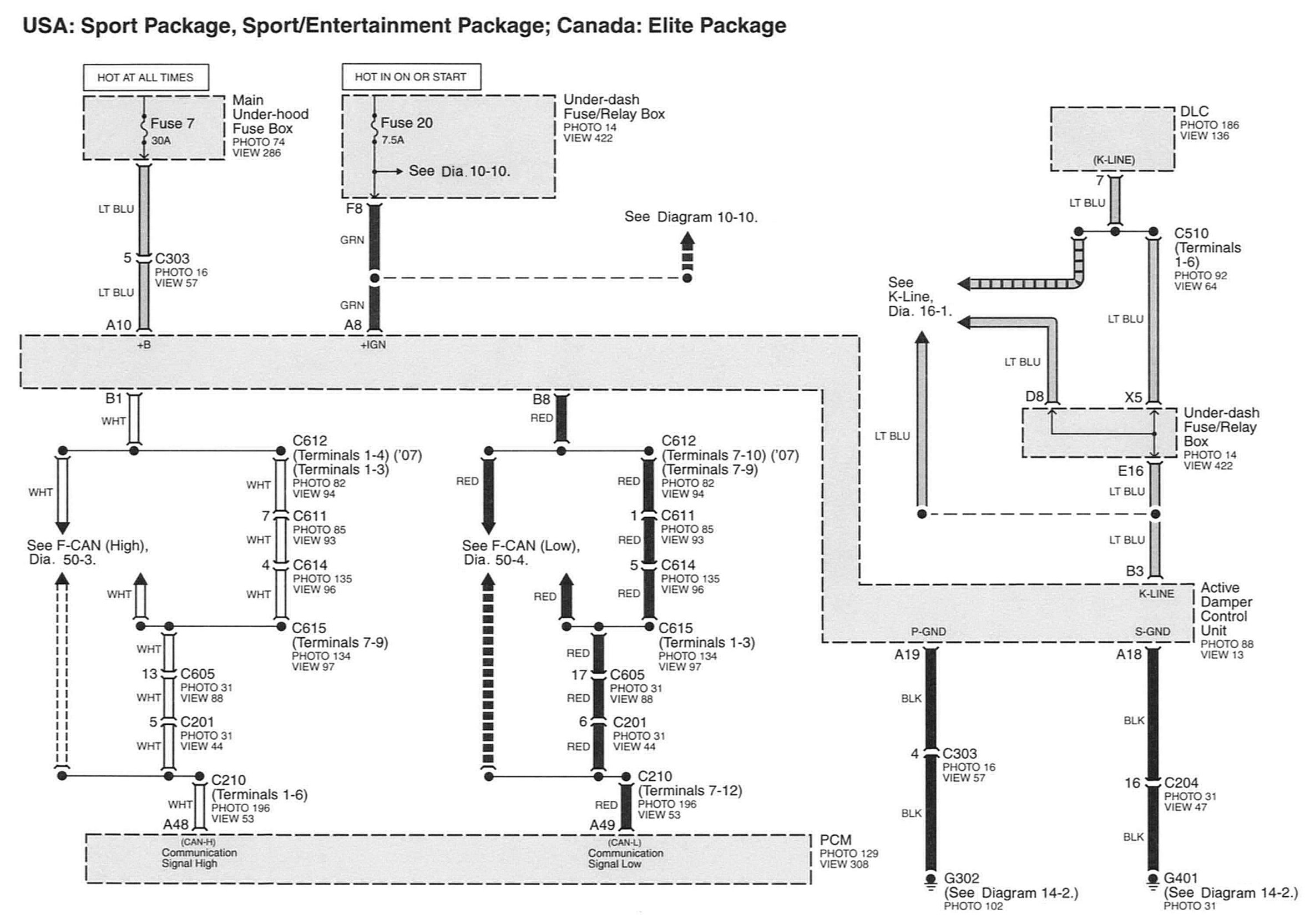

Diagram 42-2:

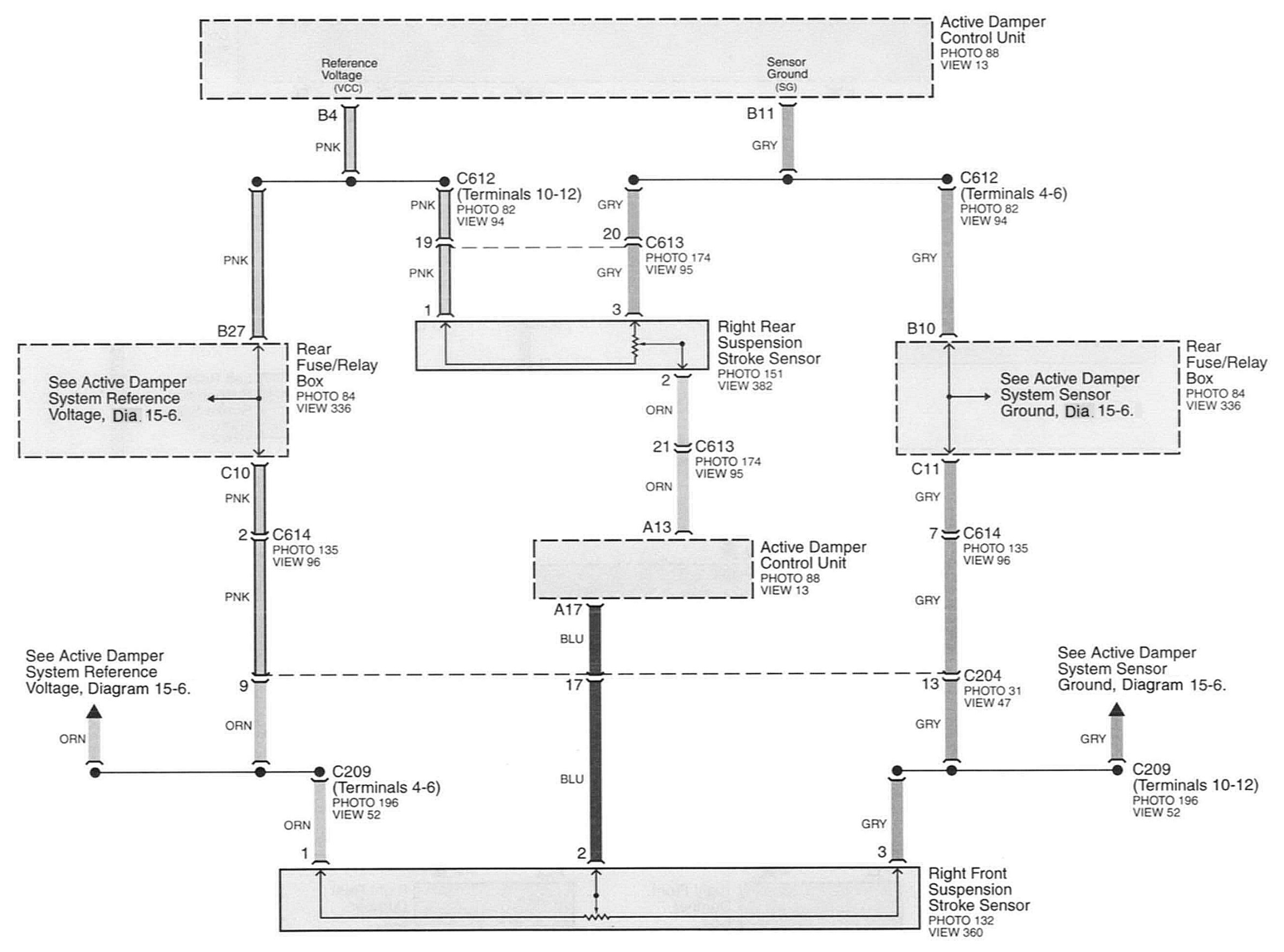

Diagram 42-3:

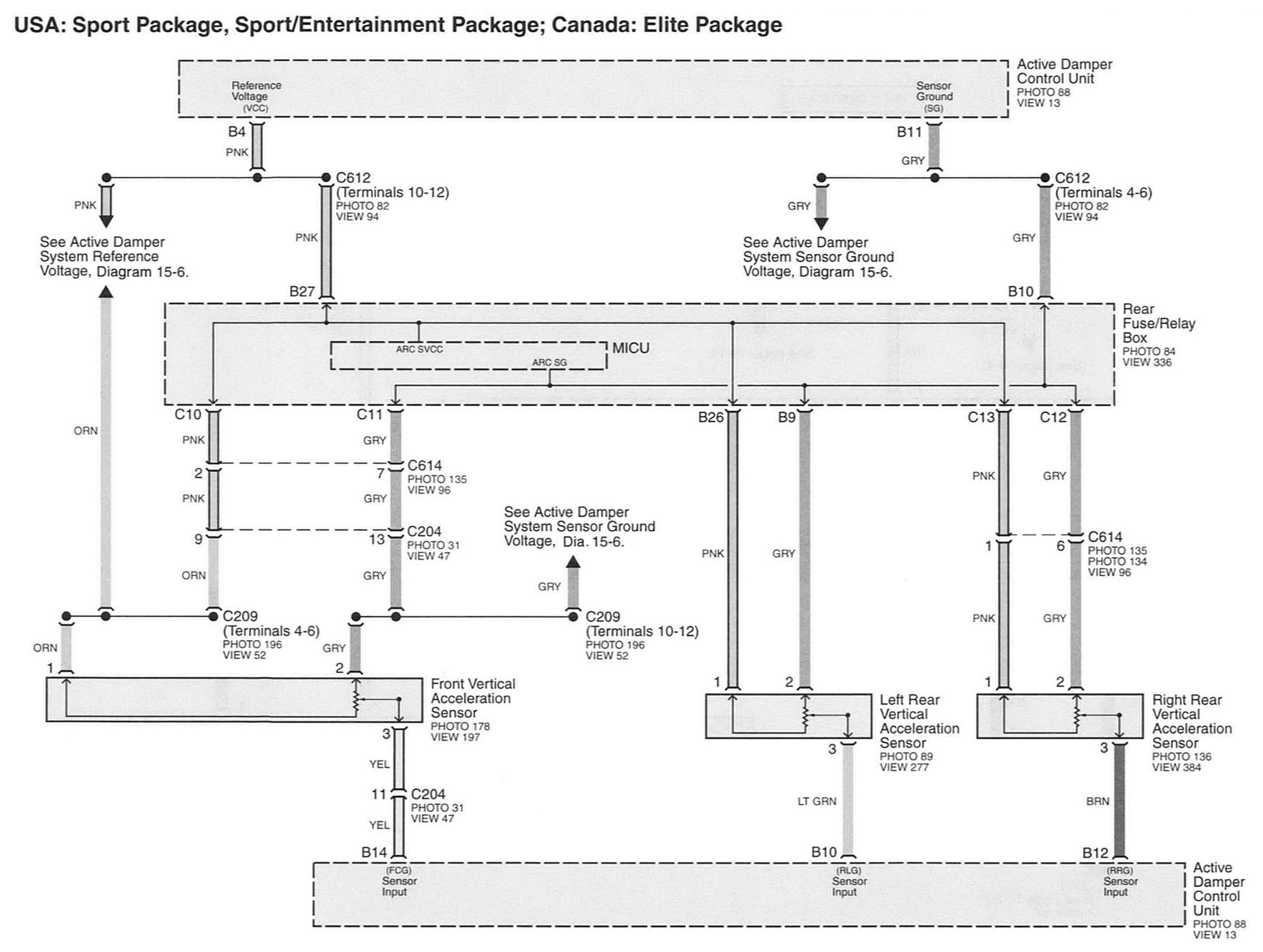

Diagram 42-4:

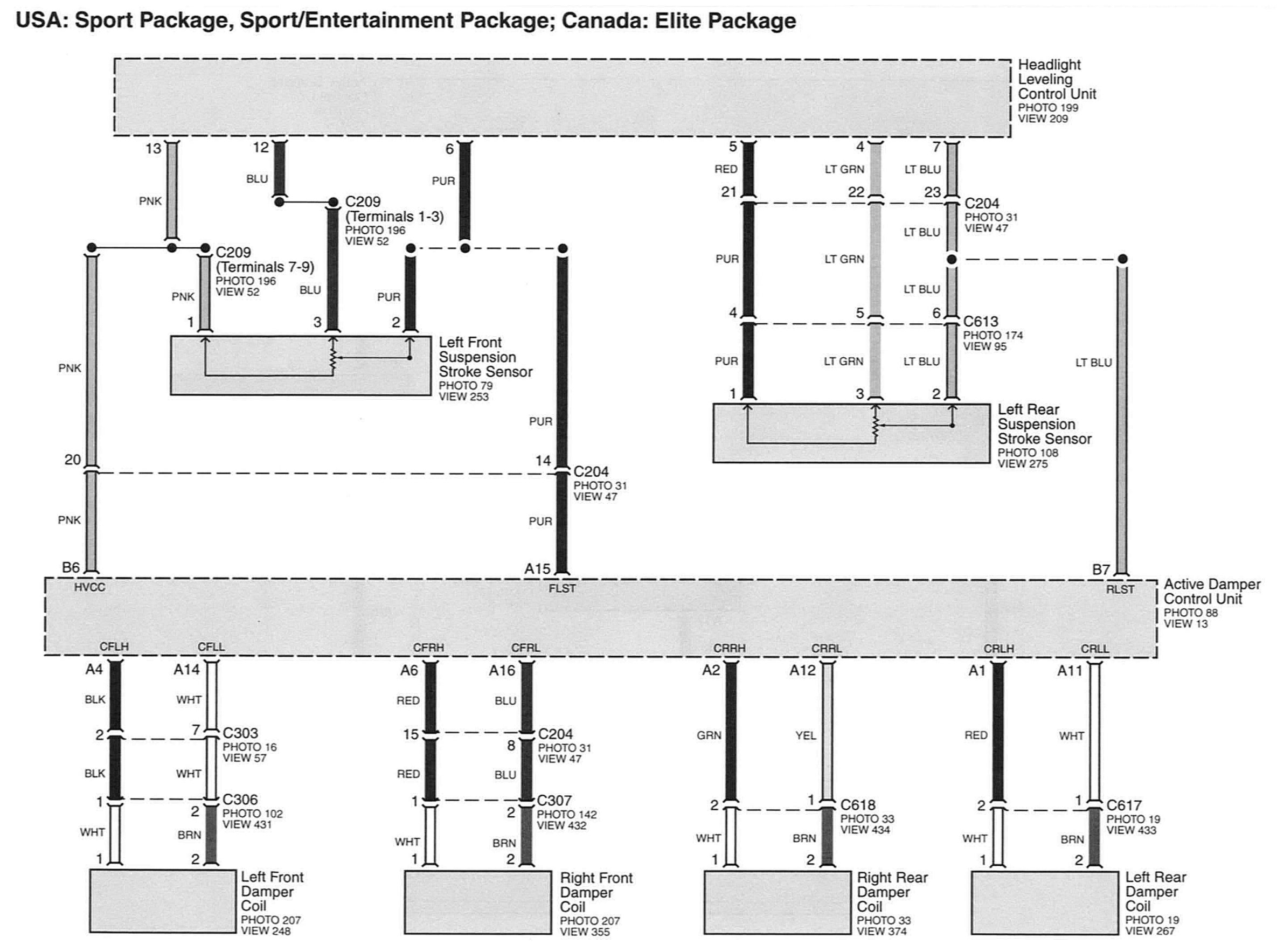

Diagram 42-5:
