Home >> Acura >> 2007 >> MDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connectors >> Connector ID By Location on Harness >> Middle Tailgate Wire Harness >> Part 1 of 2

Part 1 of 2

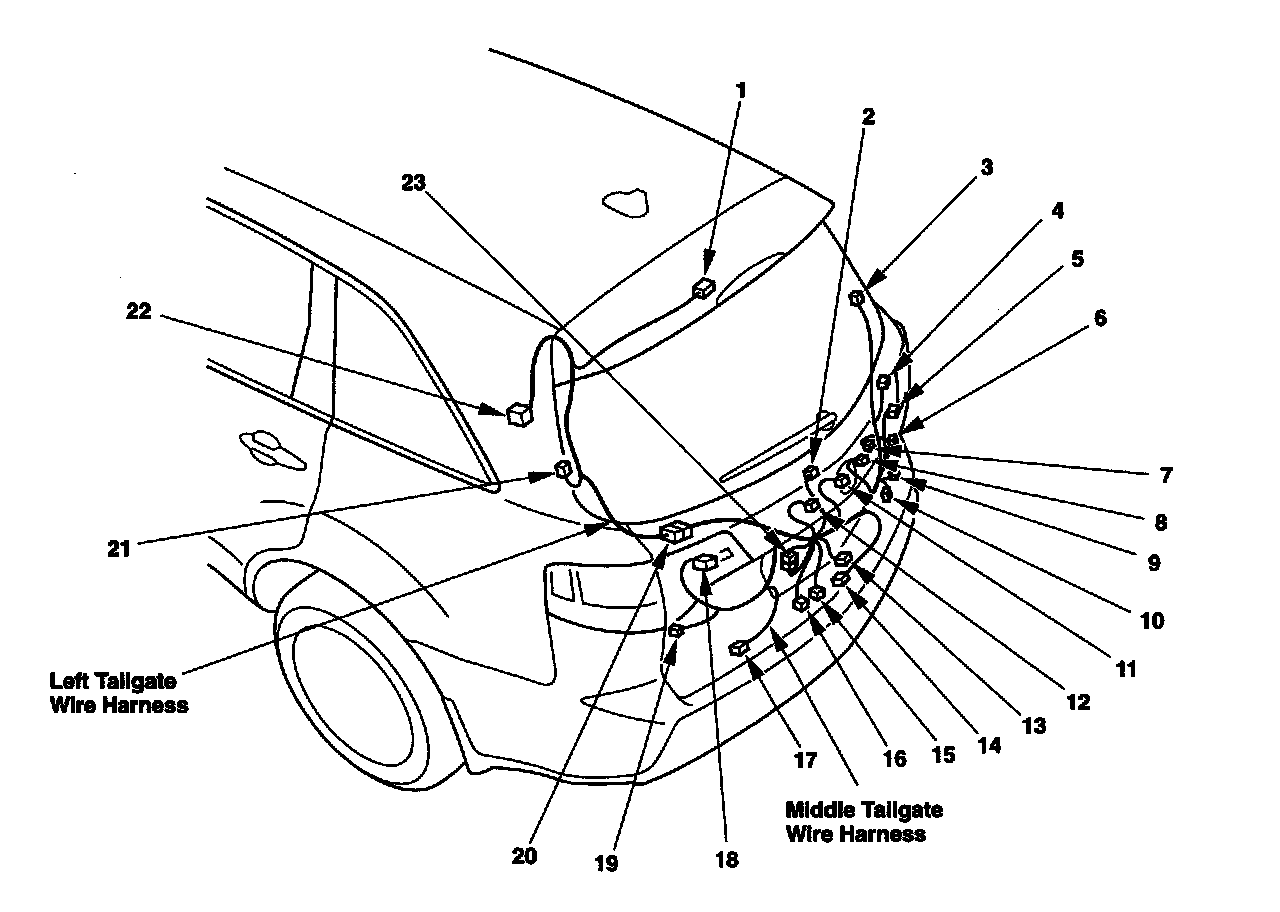

Harness Location View:

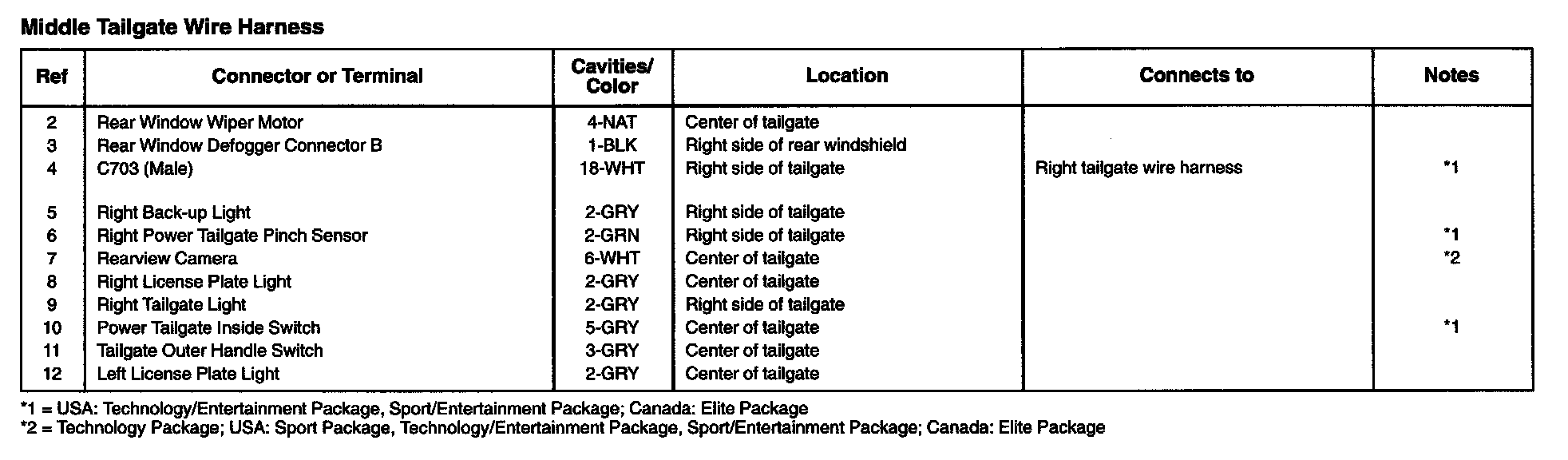

Middle Tailgate Wire Harness:
