Home >> Acura >> 2007 >> MDX V6-3.7L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Diagrams >> Electrical Diagrams >> ABS/TCS Circuit Diagram

ABS/TCS Circuit Diagram

Circuit Diagram

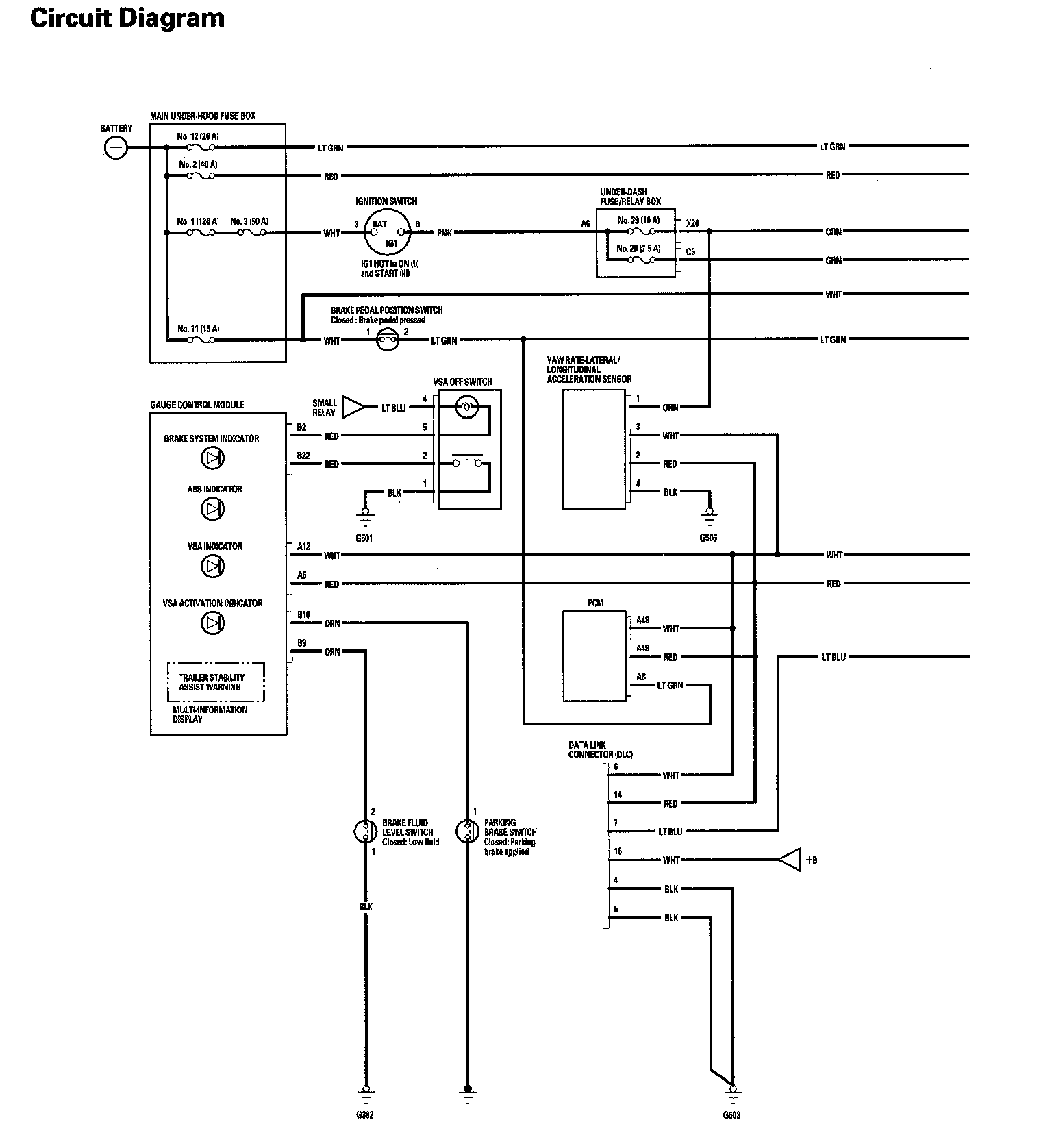

VSA (Vehicle Stability Assist) Circuit Diagram (Part 1):

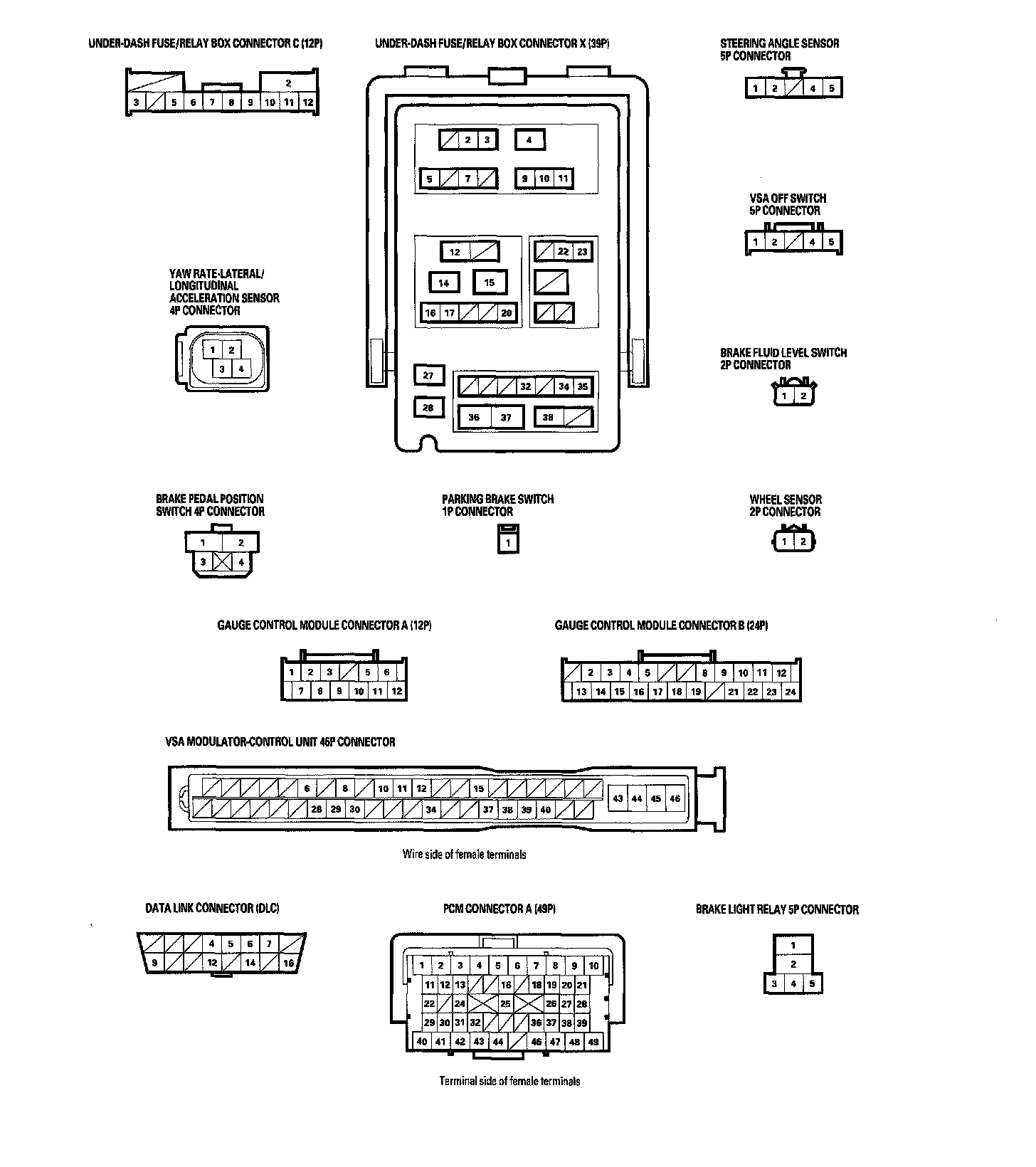

VSA (Vehicle Stability Assist) Circuit Diagram (Part 2):

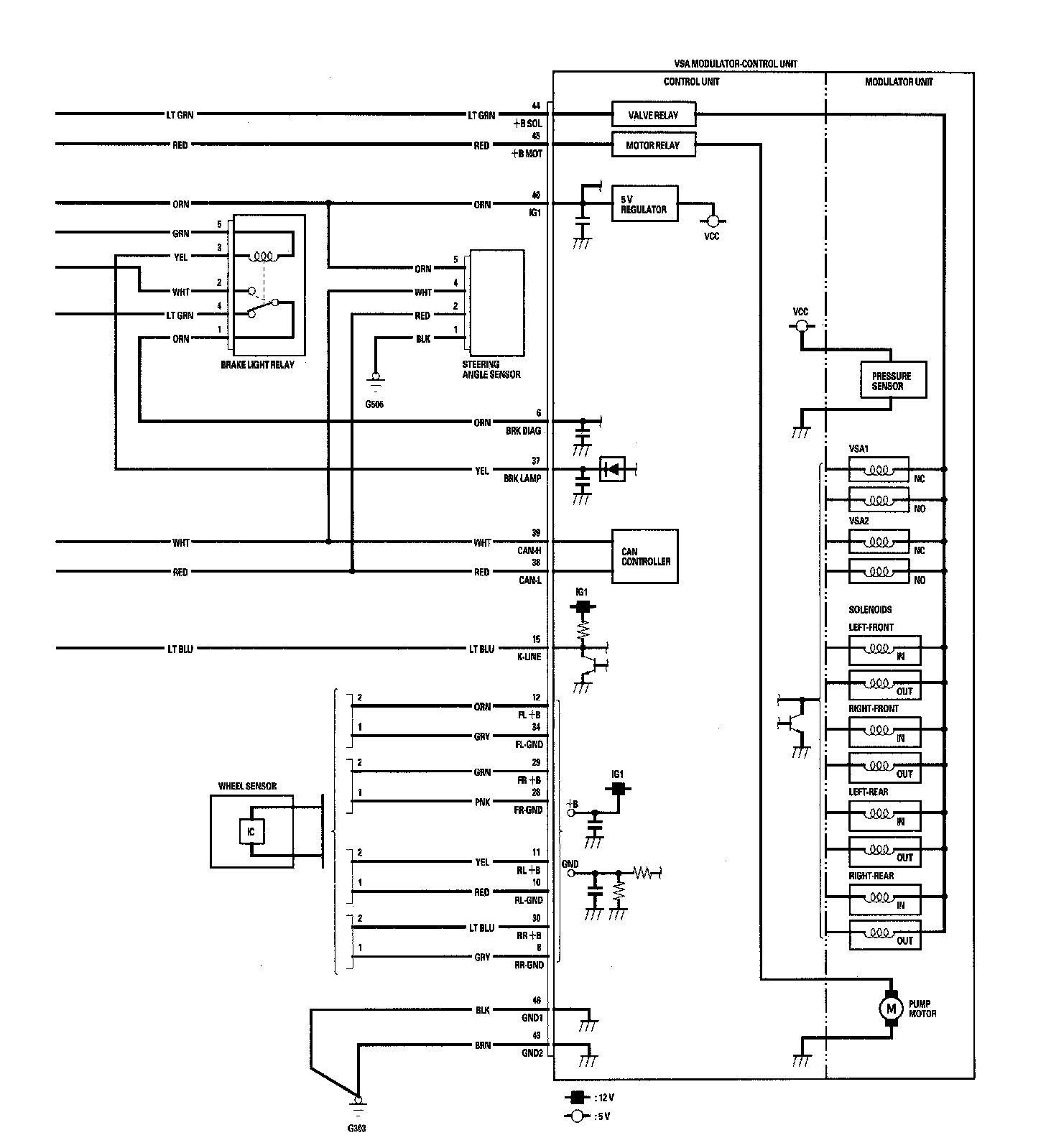

VSA (Vehicle Stability Assist) Circuit Diagram (Part 3):
