Seat Temperature Switch: Locations

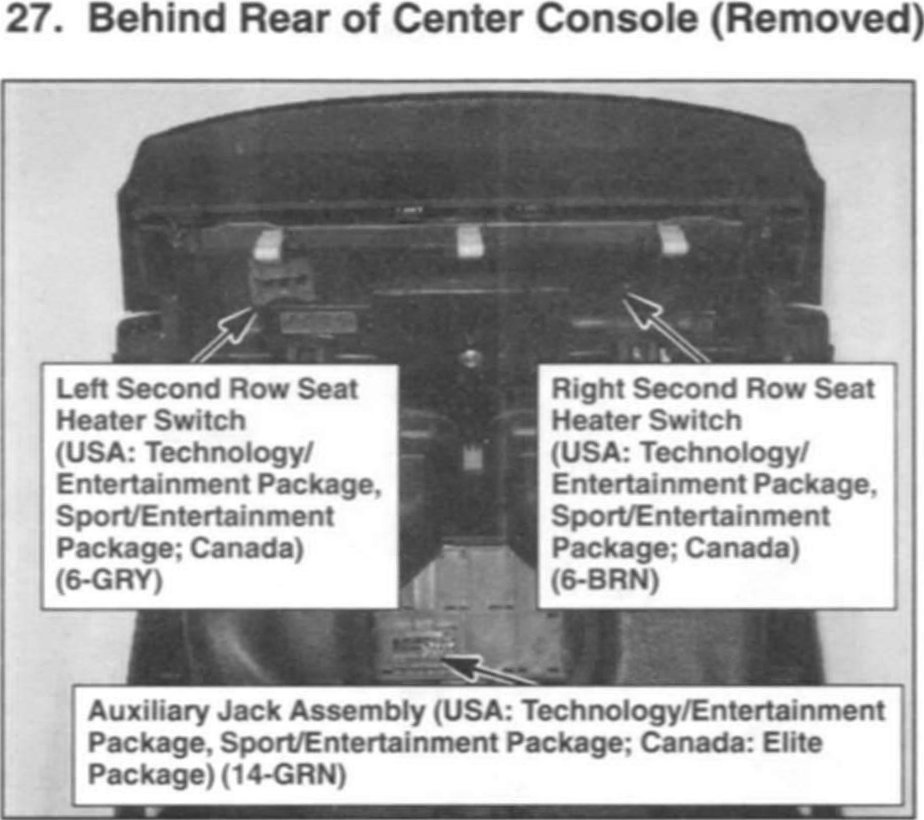

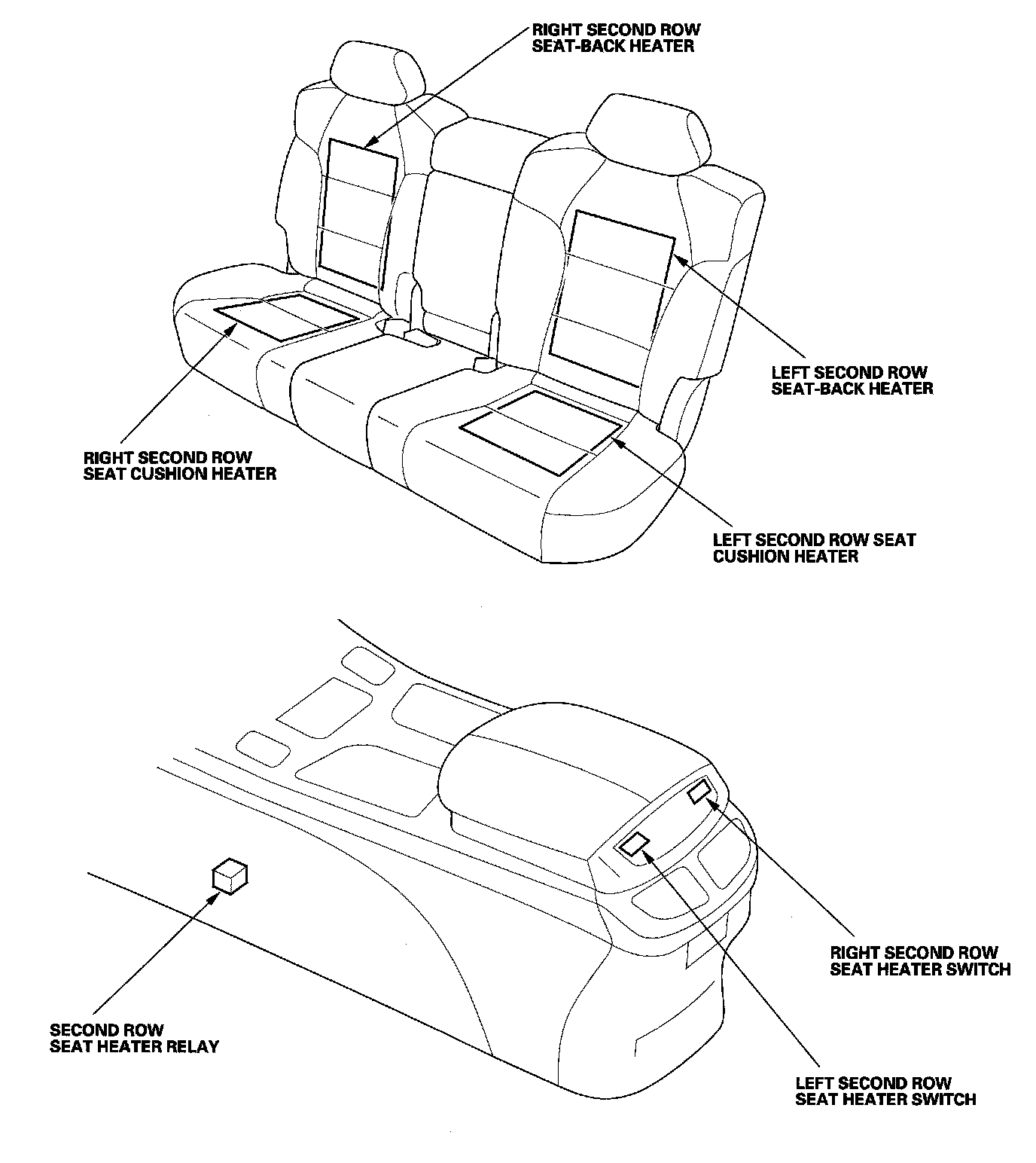

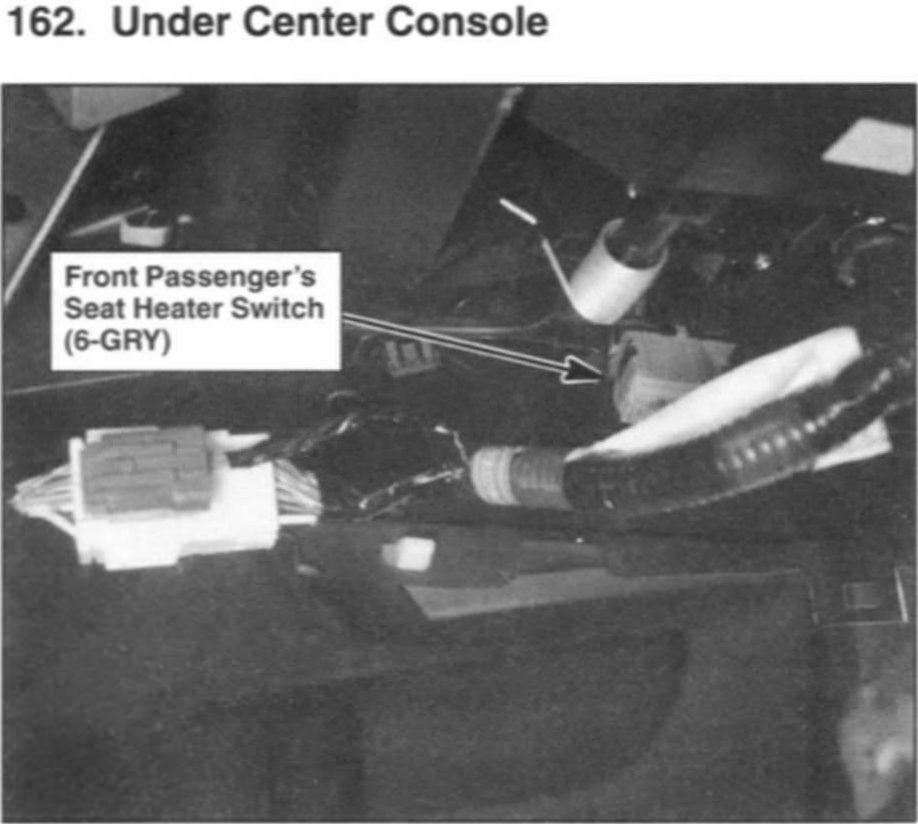

Seat Heaters Component Location Index:



Seat Heaters Component Location Index:
