Third Row Seat-Back Recline Lever
Third Row Seat-back Recline Lever ReplacementSpecial Tools Required
KTC trim tool set SOJATP2014 *
* Available through the American Honda Tool and Equipment Program
NOTE:
- Put on gloves to protect your hands.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
- Take care not to kink the seat-back recline cable.
1. Remove the left third row seat or right third row seat.
2. Remove the seat-back
3. Pry out the lid (A), and remove the screws securing the third row seat-back recline lever (B).
4. Remove the back cover, then release the hooks from behind the seat-back, as needed.
5. Remove the outer latch cover.
6. Disconnect the seat-back recline cable.

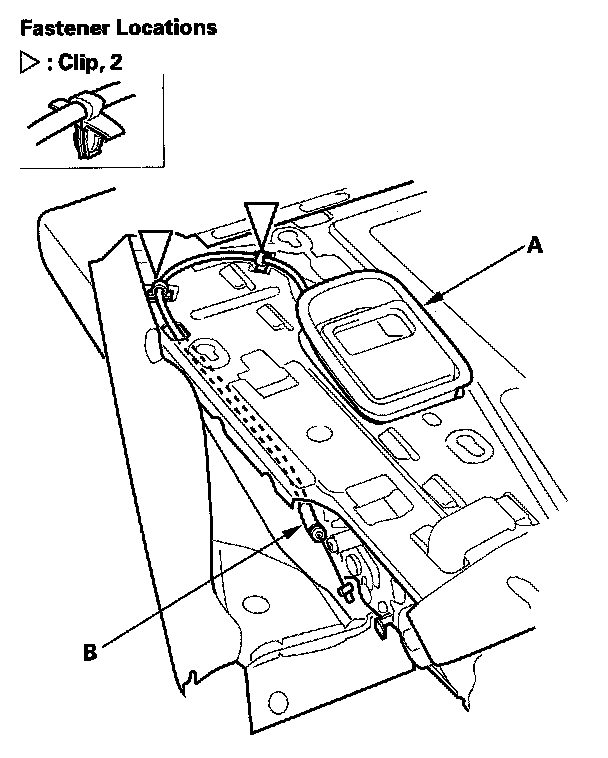

7. Remove the clips, then remove the seat-back recline lever (A) with the recline cable (B).
8. Install the lever in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Make sure the recline cable is connected securely.
- Make sure the seat unlatches properly and latches securely.
