Glove Compartment: Service and Repair

Glove Box Removal/Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

NOTE: Take care not to scratch the dashboard and its related parts.

1. Remove the passenger's dashboard undercover.
2. Open the glove box.




3. Remove the cap (A), then disconnect the glove box damper (B) from the pivot (C) on the glove box.
4. Close the glove box.




5. Remove the bolts.




6. While holding the glove box (A), release the glove box stop (B) on each side from the dashboard by pushing them in, then remove the glove box.

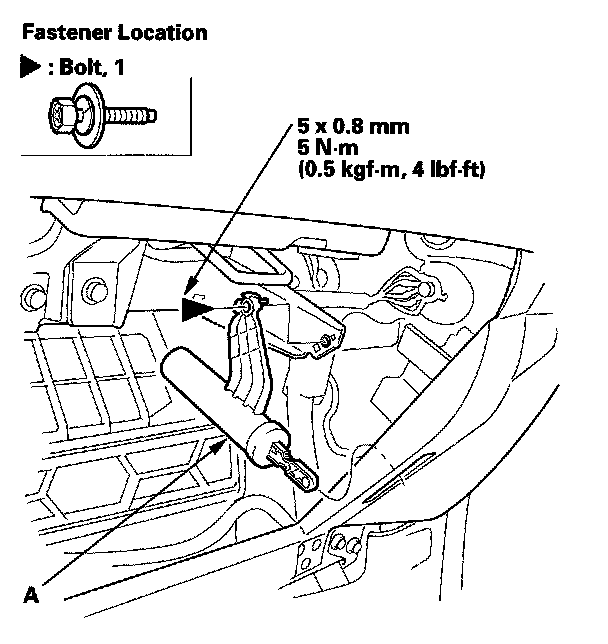

7. Remove the bolt, then remove the glove box damper (A).
8. Install the glove box in the reverse order of removal.
