Home >> Acura >> 2007 >> MDX V6-3.7L >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Doors >> Rear Door >> Locations

Rear Door: Locations

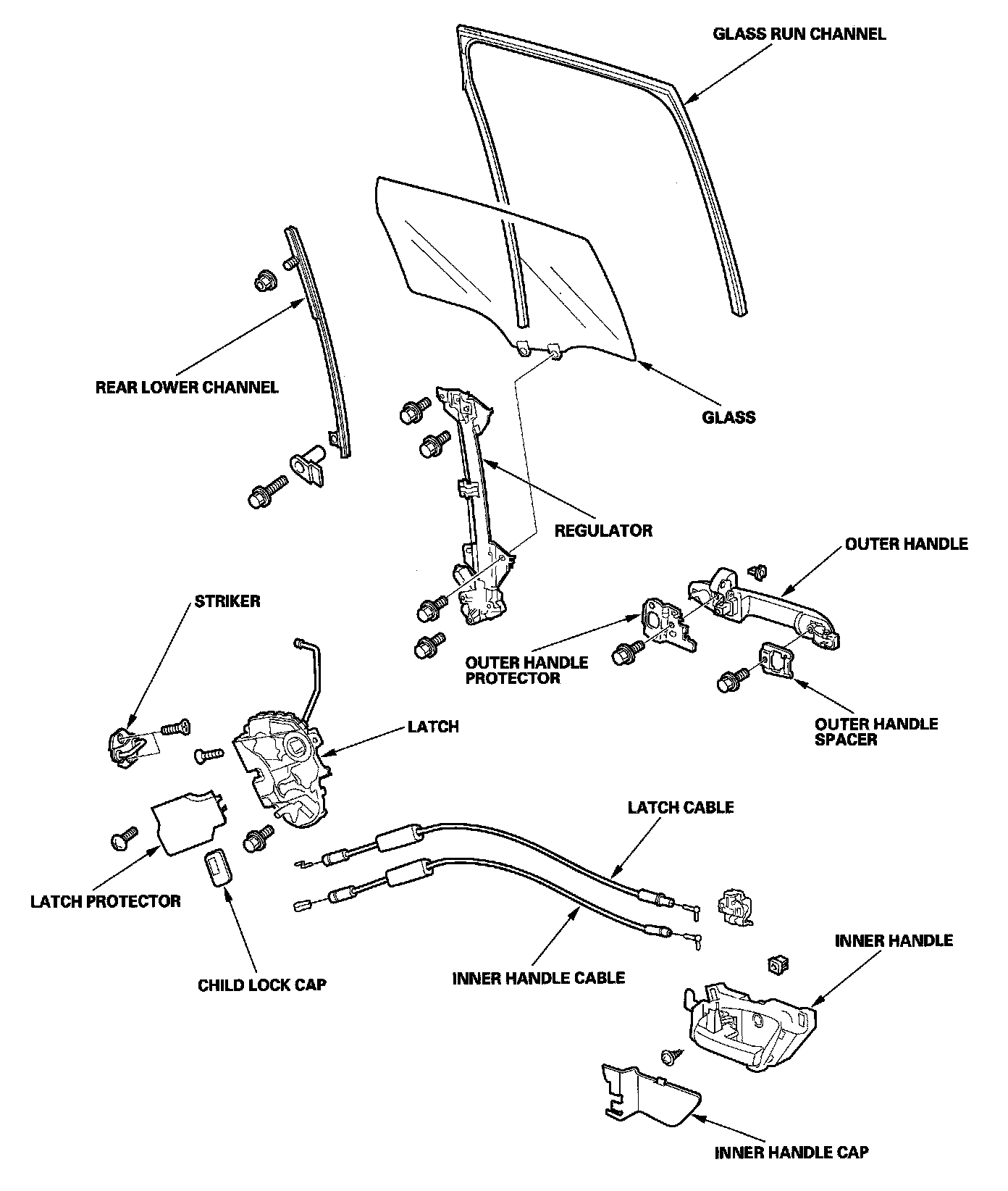

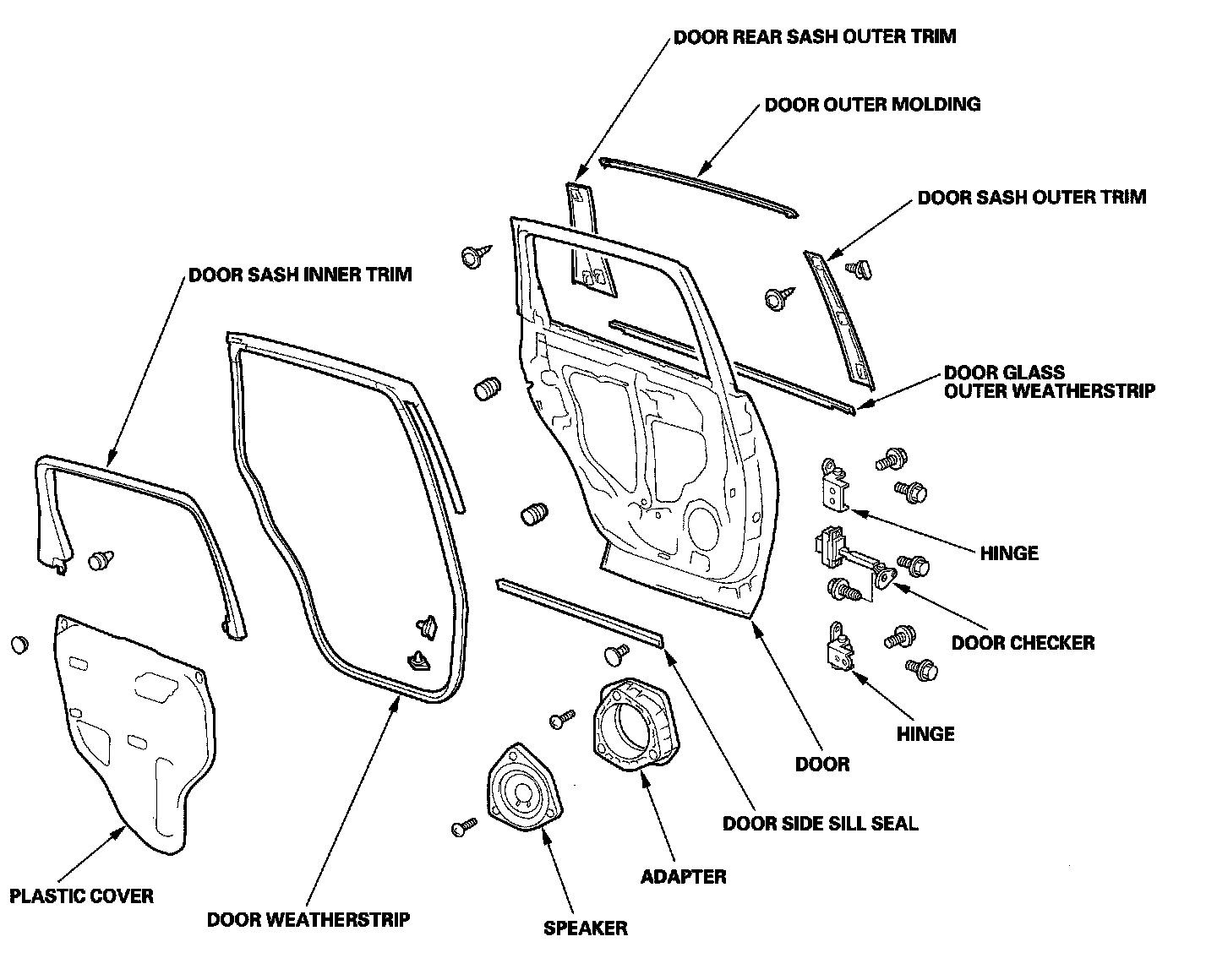

Rear Door Component Location Index:



Rear Door Component Location Index:



Rear Door Component Location Index:
