Home >> Acura >> 2007 >> MDX V6-3.7L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Towing / Trailer System >> Trailer Lighting Relay >> Locations

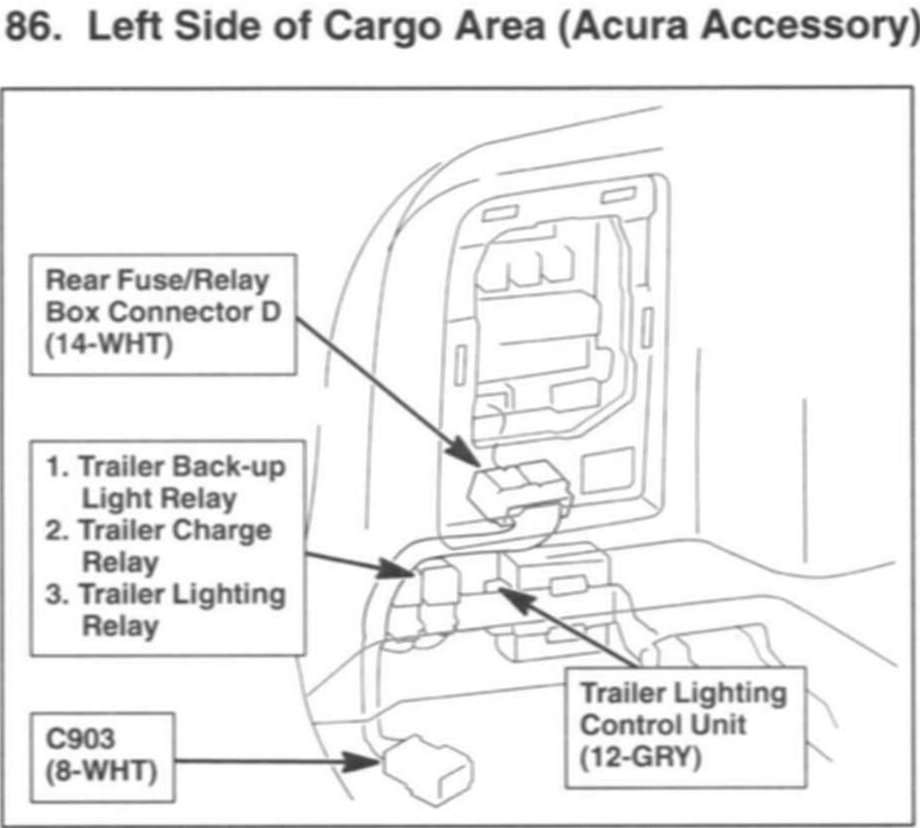

Trailer Lighting Relay: Locations



Rear Fuse/Relay Box:
