Rear Entertainment System Circuit Diagram

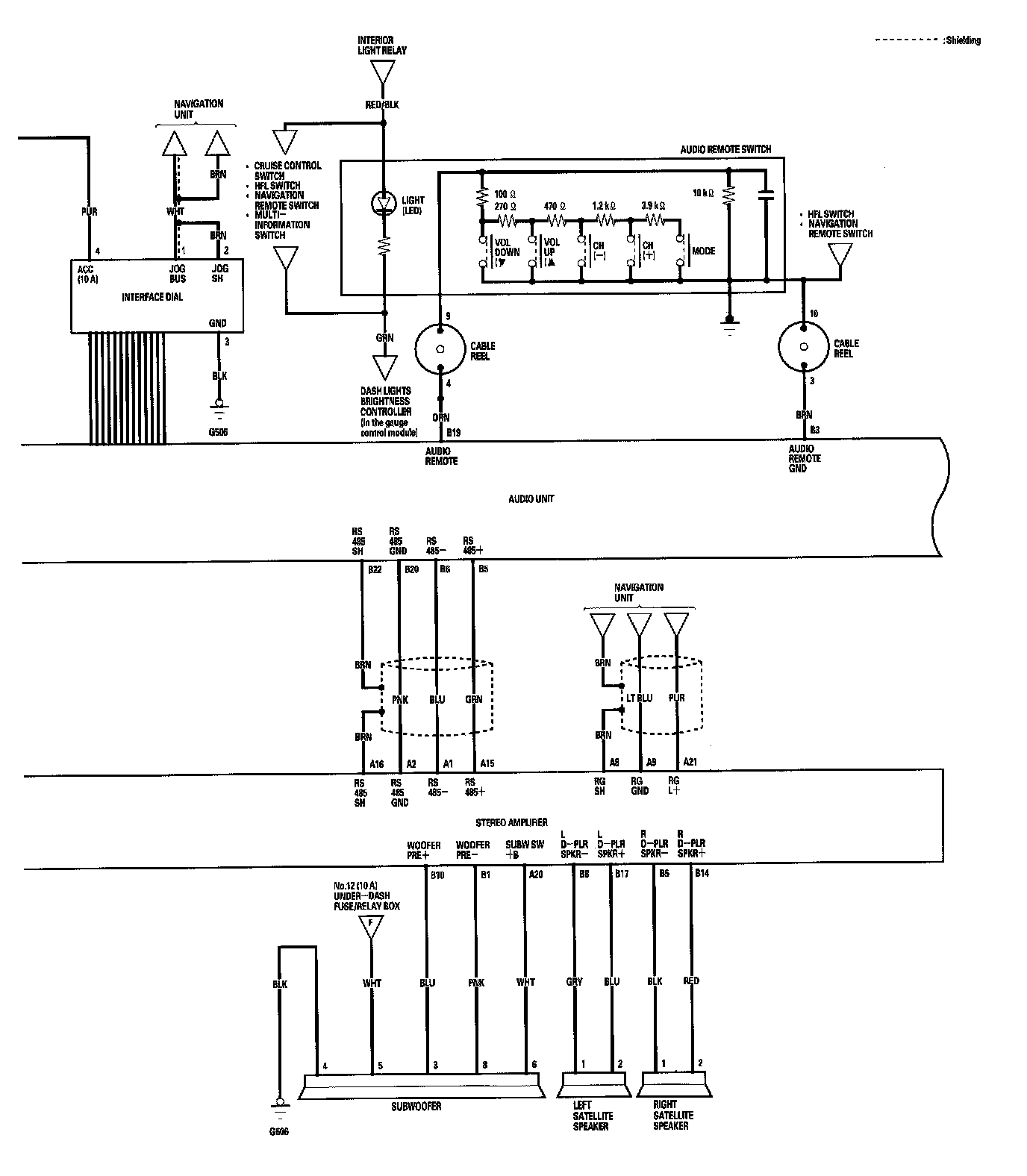

Rear Entertainment System Circuit Diagram Part 1:

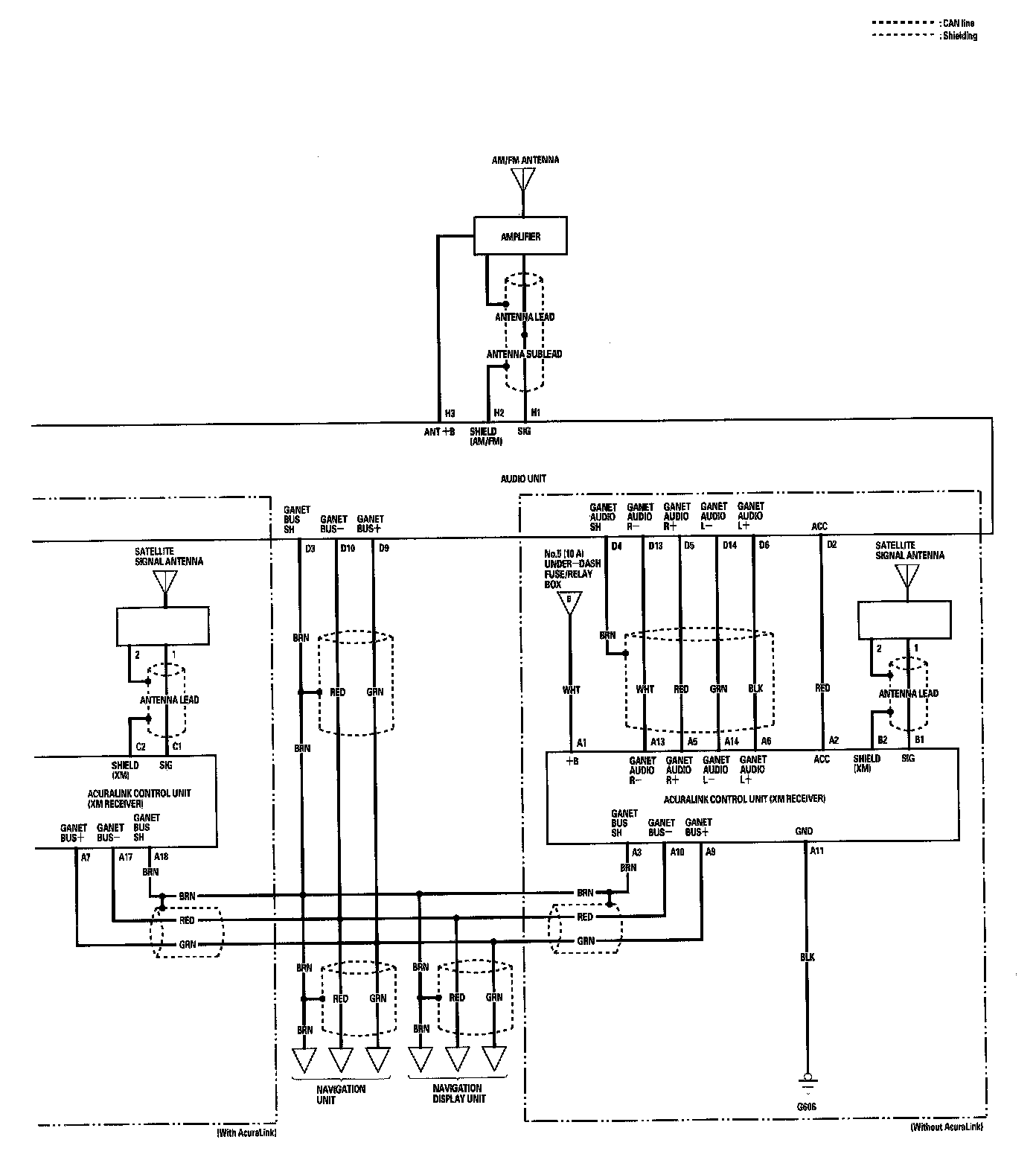

Rear Entertainment System Circuit Diagram Part 2:

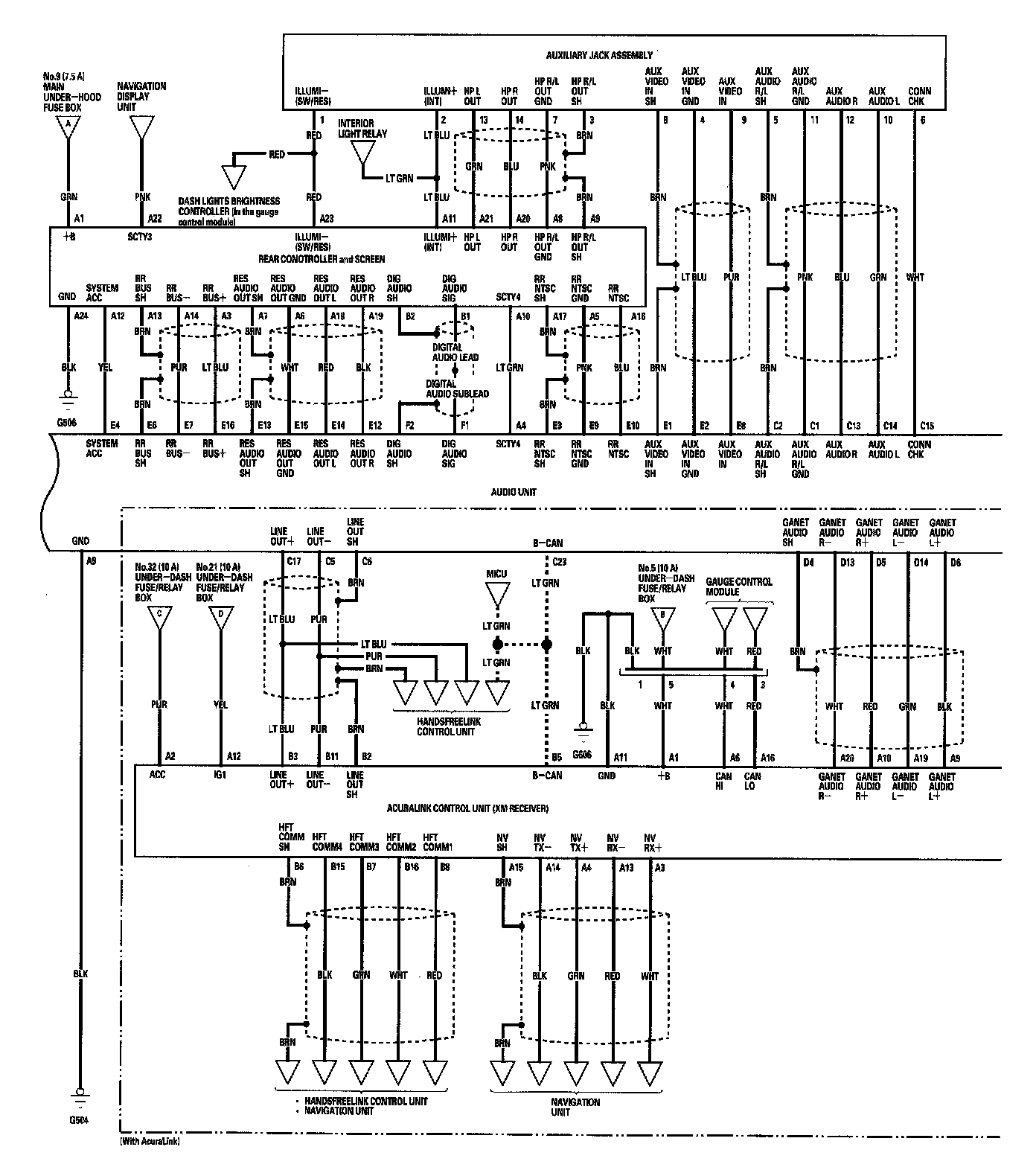

Rear Entertainment System Circuit Diagram Part 3:

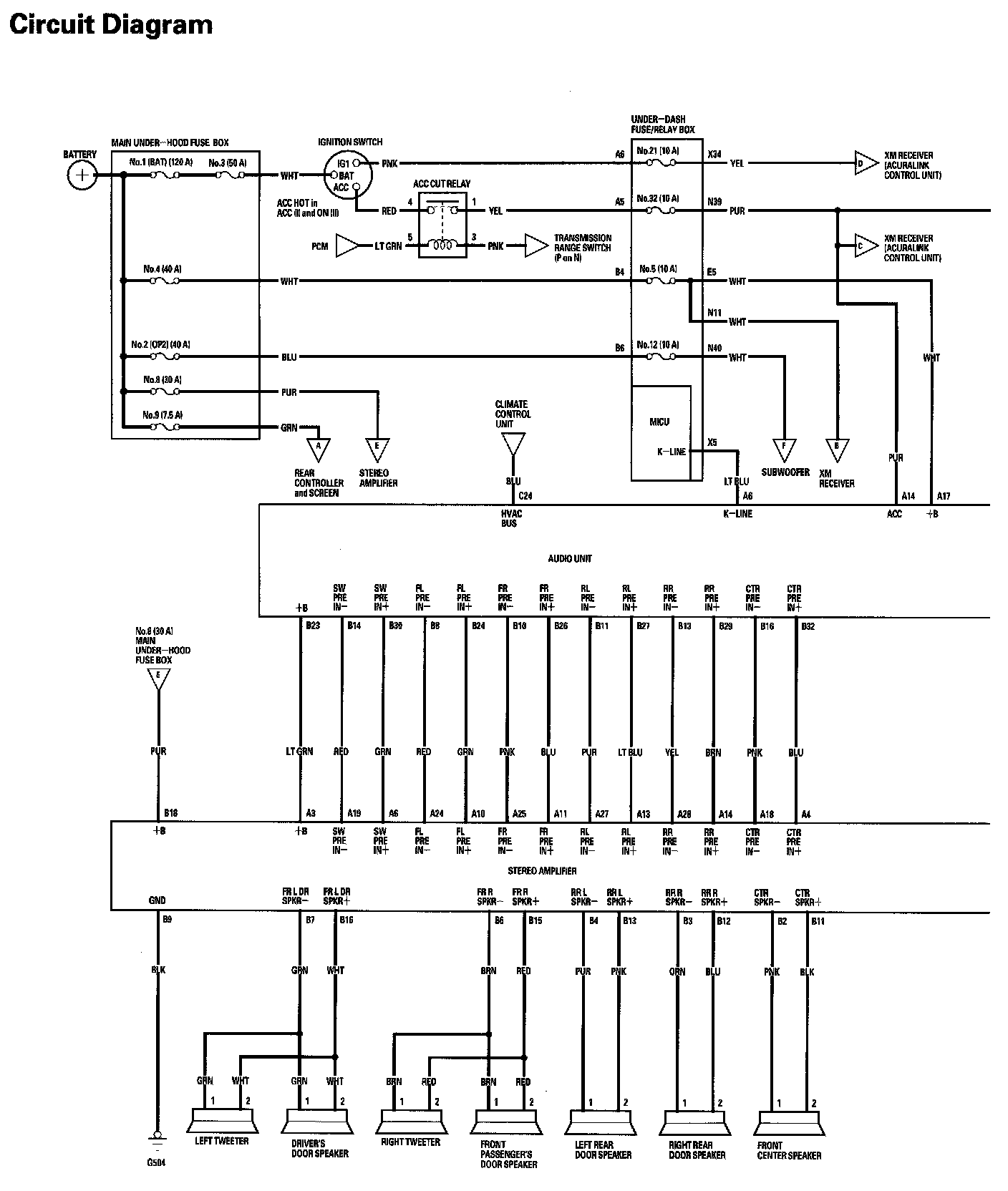

Rear Entertainment System Circuit Diagram Part 4:
