HandsFreeLink System Circuit Diagram

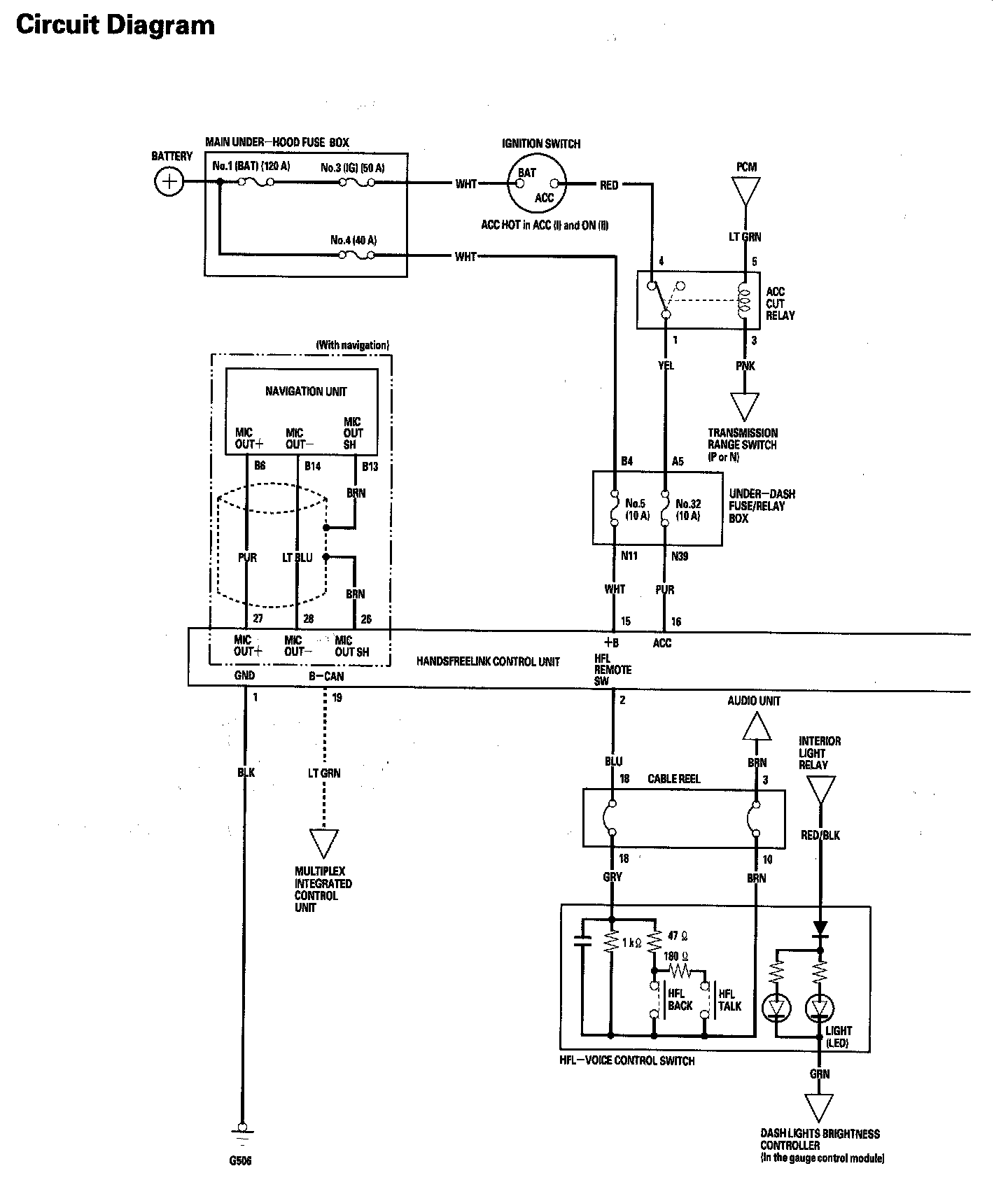

HandsFreeLink System Circuit Diagram Part 1:

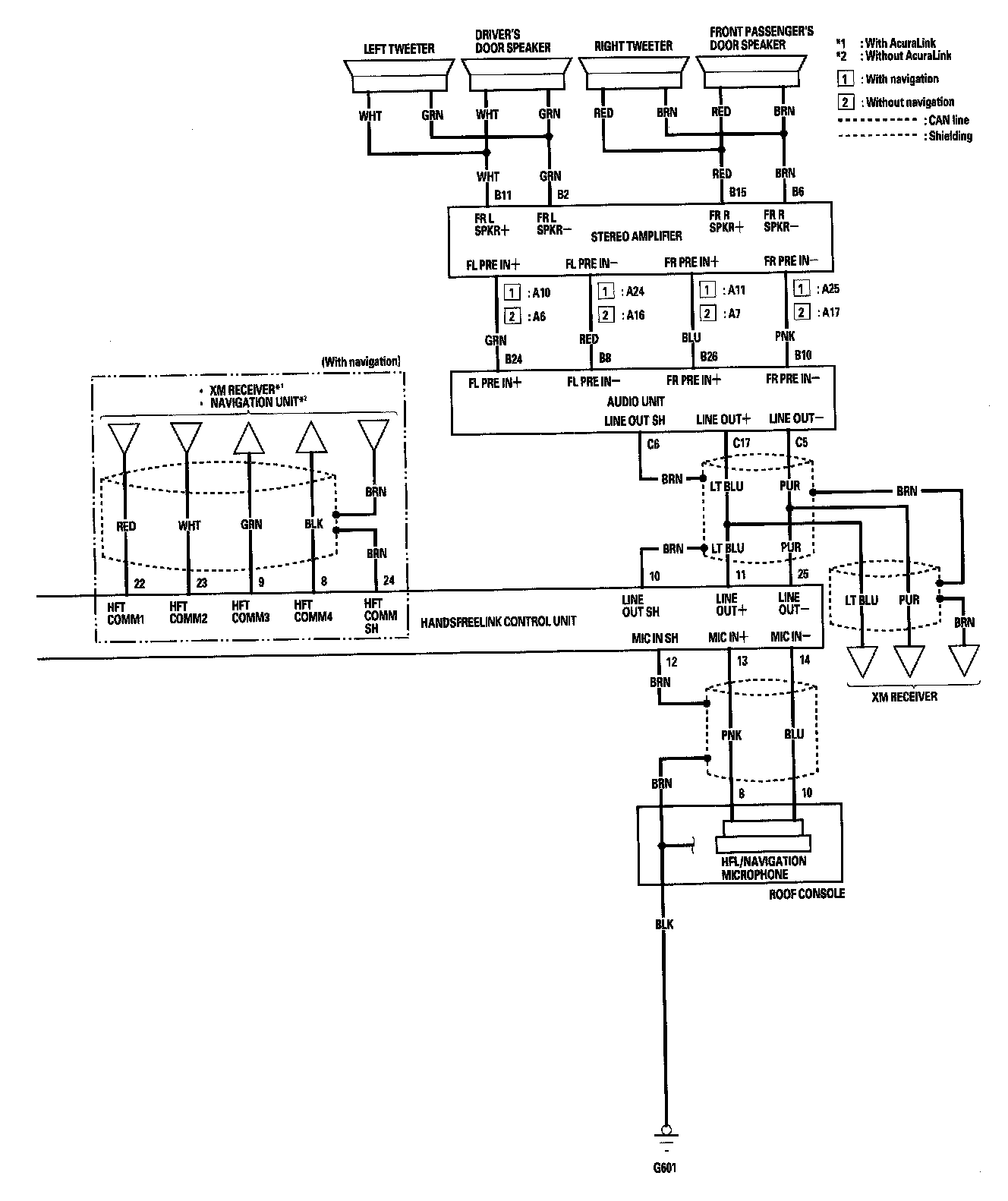

HandsFreeLink System Circuit Diagram Part 2:
