Removal ('06-08 models)

Disconnect the intake air temperature (IAT) sensor connector (A).

Fig 1: Identifying Intake Air Temperature (IAT) Sensor Connector, Vacuum Hose, Breather Pipe And Intake Air Duct
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the vacuum hose (B) and breather pipe (C), then remove the intake air duct (D).
Remove the engine cover.

Fig 2: Identifying Engine Cover With Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

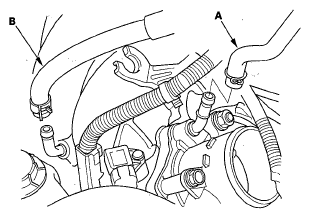

Disconnect the evaporative emission (EVAP) canister hose (A) and brake booster vacuum hose (B).

Fig 3: Identifying Evaporative Emission (EVAP) Canister Hose And Brake Booster Vacuum Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the engine wire harness connectors and wire harness clamps from the intake manifold.
- Throttle actuator connector
- Manifold absolute pressure (MAP) sensor connector
Remove the harness holder (A), harness bracket (B), and harness clamp (C).

Fig 4: Identifying Harness Holder, Harness Bracket And Harness Clamp
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect and plug the water bypass hoses.

Fig 5: Identifying Water Bypass Hoses
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the harness clamp (A) and the harness connector (B) from the intake manifold bracket, then remove the intake manifold bracket (C).

Fig 6: Identifying Harness Clamp, Harness Connector And Intake Manifold Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the vacuum hose.

Fig 7: Identifying Vacuum Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the intake manifold.

Fig 8: Identifying Intake Manifold With Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
