Circuit Diagram

USA models

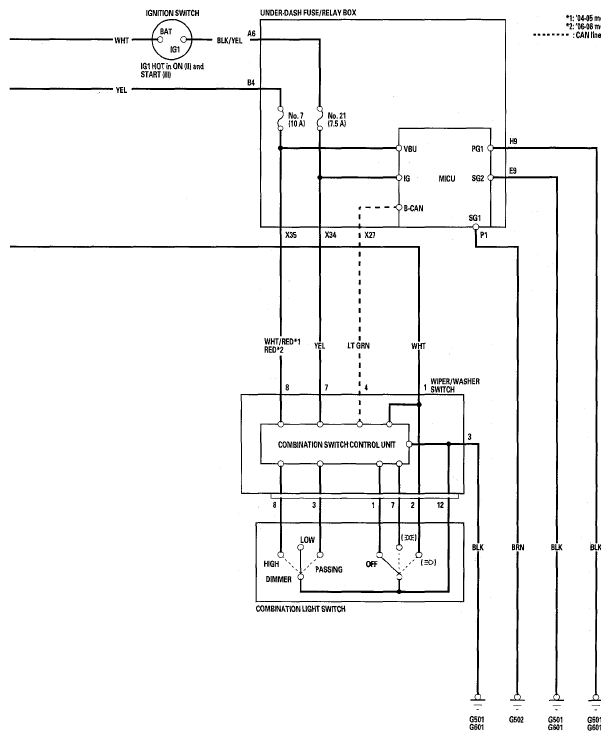

Fig 1: Exterior Lights - Circuit Diagram (USA Model) (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

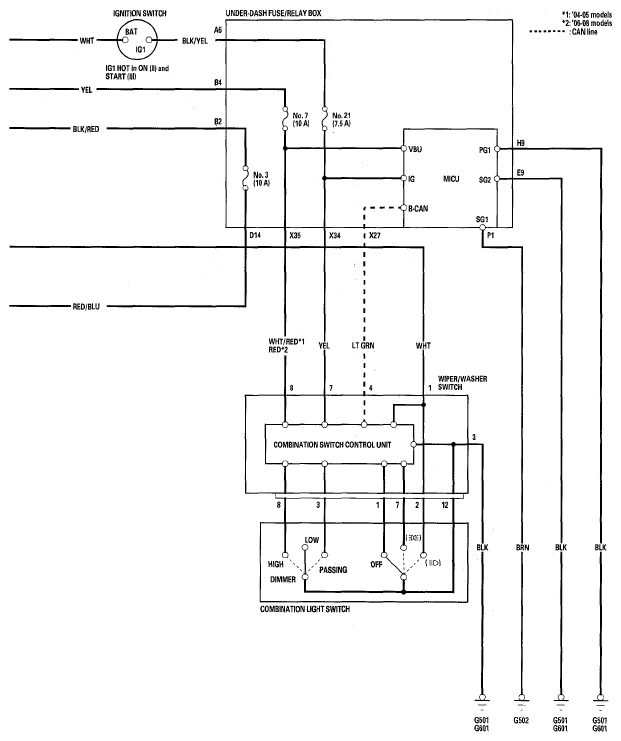

Fig 2: Exterior Lights - Circuit Diagram (USA Model) (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Canada models

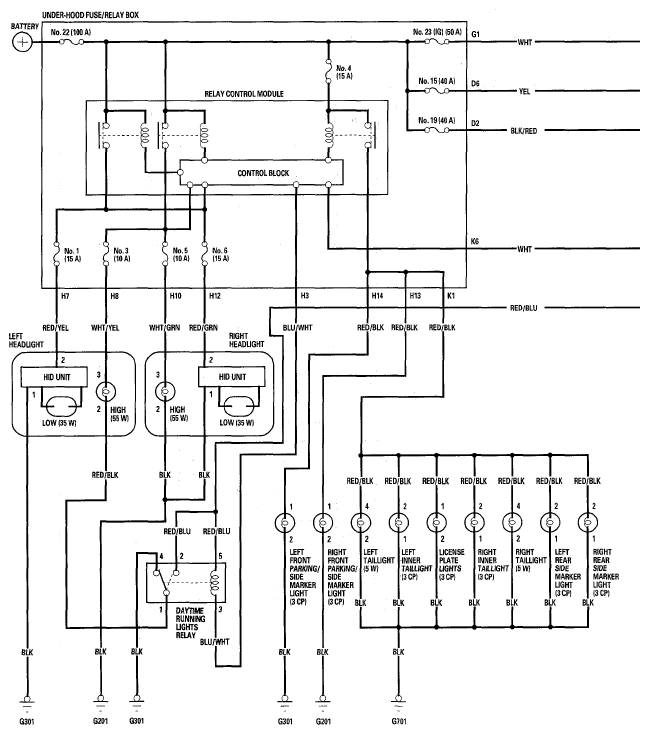

Fig 3: Exterior Lights - Circuit Diagram (Canada Model) (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

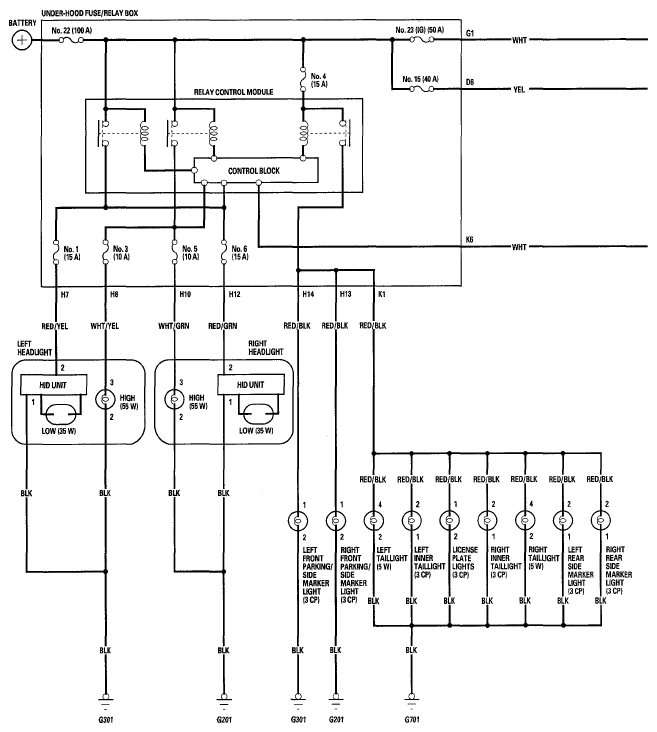

Fig 4: Exterior Lights - Circuit Diagram (Canada Model) (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
