Circuit Diagram
>>
Without Navigation:
Without Navigation:

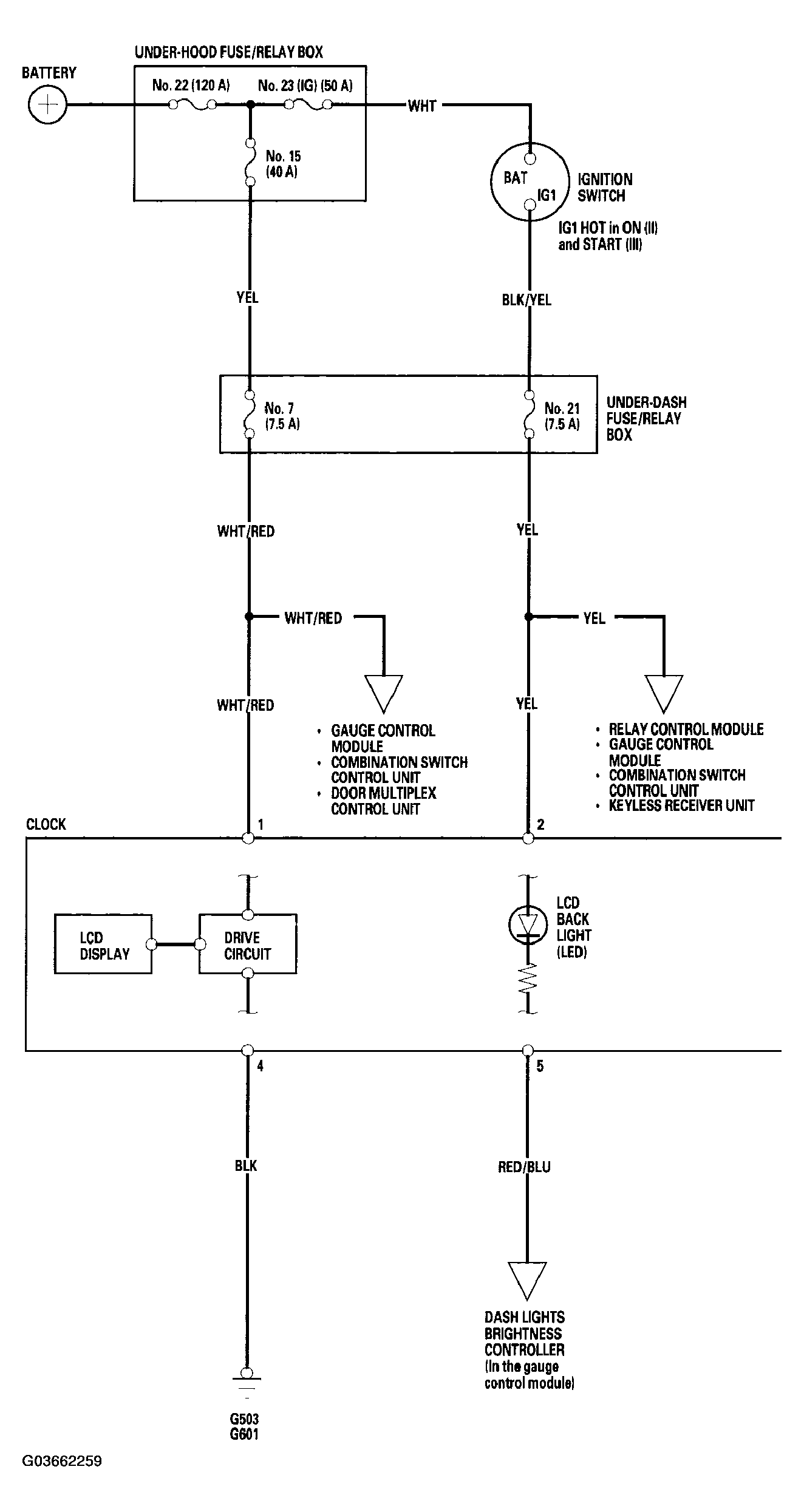

Fig 1: Clock Circuit Diagram - Without Navigation
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
