Driver's Center Vent

NOTE: Take care not to scratch the dashboard and related parts.

Remove these items:
- Navigation unit, with navigation system (see NAVIGATION UNIT REMOVAL/INSTALLATION )
- Audio unit, without navigation system:
  - 6 CD type (see AUDIO UNIT REMOVAL/INSTALLATION )
  - 1 CD type (see WITHOUT NAVIGATION 1CD TYPE )
Remove the screws securing the driver's center vent (A), then remove the driver's center vent from the center panel (B).

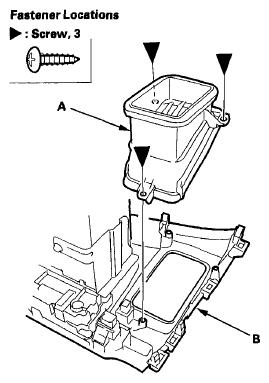

Fig 1: Identifying Driver's Center Vent And Driver's Center Vent
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the center vent in the reverse order of removal.
