Throttle Actuator Control Module Subharness

THROTTLE ACTUATOR CONTROL MODULE SUBHARNESS SPECIFICATION

Connector or Terminal Ref Cavities Location Connects to
Throttle actuator control module 7 16 Under right side of dash
C251 16 13 Under right side of dash Engine wire harness (see ENGINE WIRE HARNESS  )

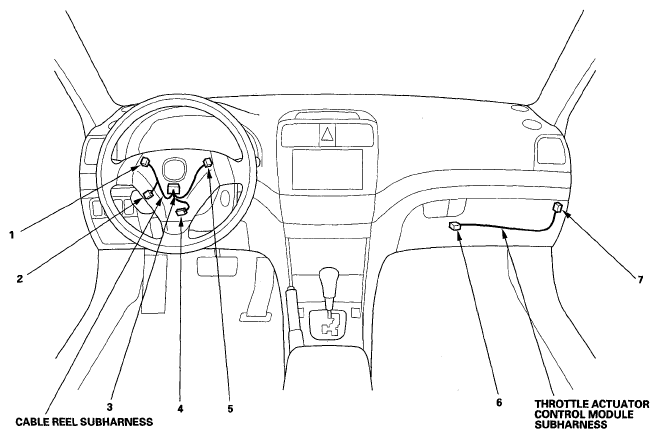

Fig 1: Identifying Cable Reel Subharness And Throttle Actuator Control Module Subharness Location
G05492765Courtesy of AMERICAN HONDA MOTOR CO., INC.
