Splash Shield Replacement

NOTE: Take care not to scratch the body.
  1. Remove the splash shield (A).
    1. From both wheel arch, remove the bolts (B), clips (C), and clip (D) securing the front inner fender (E) and splash shield (on the body).
    2. From under the front bumper (F), remove the clips (C), and bolts (G).
    3. Release the hooks (H) of the splash shield, then pull the splash shield out.

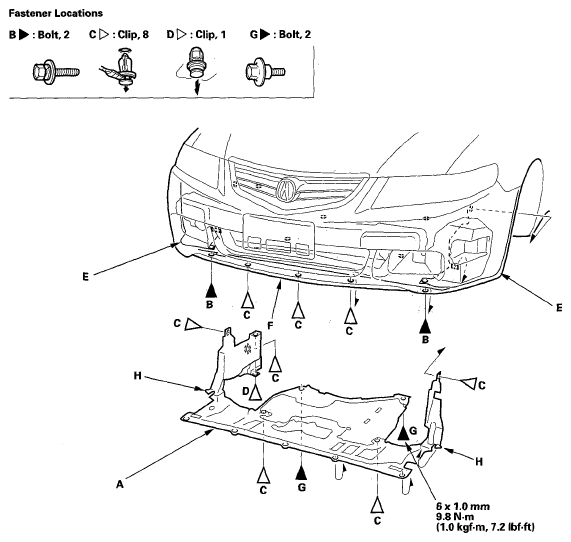

      Fig 1: Splash Shield W/Torque Specification
      G05492552Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the splash shield in the reverse order of removal, and note these items:
    • Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.
    • Push the clips into place securely.
