Rear Bumper Removal/Installation
NOTE:
- Have an assistant help you when removing and installing the rear bumper.
- Take care not to scratch the rear bumper and body.
- Put on gloves to protect your hands.

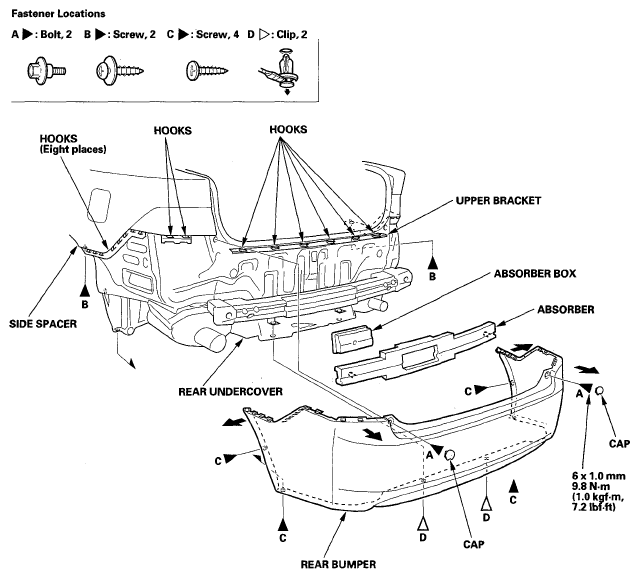

- Remove the rear bumper as shown.
- Install the bumper in the reverse order of removal, and note these items:
- Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.
- Make sure the rear bumper engages the hooks of the side spacers, side brackets and upper brackets on both sides securely.
