Wiper Motor Replacement

Open the hood. Remove the caps, nuts (A), and the windshield wiper arms (B).

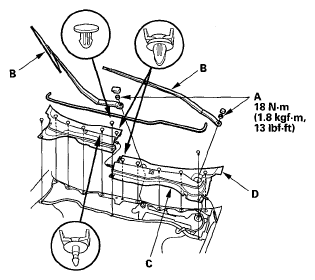

Fig 1: Windshield Wiper Arms, Caps, Nuts, Hood Seals And Cowl Covers w/Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the hood seals (C) and cowl covers (D).
Disconnect the 5P connector (A) from the wiper motor.

Fig 2: Wiper Motor 5P Connector Terminal With Bolts w/Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the four bolts (B) and wiper linkage assembly (C).
Scribe a line (A) across the link and windshield wiper linkage to show the original adjustment. Separate the windshield wiper linkage (B) from the wiper motor (C).

Fig 3: Separating Windshield Wiper Linkage From Wiper Motor w/Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install in the reverse order to removal, and note these items:
- Apply multipurpose grease to the moving parts.
- Before reinstalling the wiper arms, turn the wiper switch ON, then OFF to return the wiper shafts to the park position.
- If necessary, replace any damaged clips.
- Check the wiper motor operation.
