Side Curtain Airbag(s)

  1. Side impact sensors must activate and send electrical signals to the microprocessor.
  2. The microprocessor must compute the signals and send them to the side curtain airbag and side airbag inflator(s).
  3. The inflator that receives the signals must ignite and deploy the side curtain airbag and side airbag at the same time.

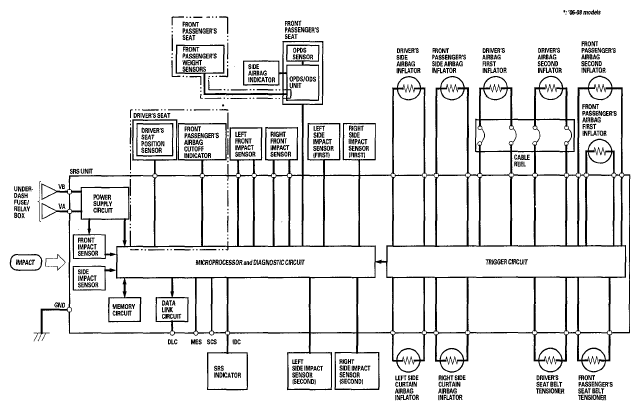

Fig 1: SRS Circuit Diagram
G05489548Courtesy of AMERICAN HONDA MOTOR CO., INC.
