Installation ('06-08 models)

NOTE:
  • Be sure to install the harness wires so they are not pinched or interfere with other parts.
  • Make sure both of the rivets (A) on the seat track are properly secured to the front bracket (B). If the hooks are not properly secured, the front passenger's weight sensors will not function properly.
  1. Install the new front passenger's weight sensors with 6 mm TORX bolts (C) and 8 mm TORX bolts (D) under the seat track.

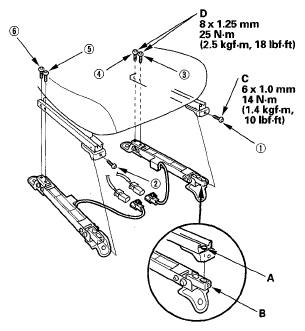

    Fig 1: Identifying Front Passenger's Weight Sensor w/Torx Bolts & Spec.
    G05489843Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Tightening the TORX bolts, begin with the (1) and tighten them in criss-cross pattern in two or more steps.
  3. Reassemble the front passenger's seat cushion cover/pad (see SEAT CUSHION COVER ).
  4. Reinstall the front passenger's seat (see FRONT SEAT REMOVAL/INSTALLATION ).
  5. Reconnect the negative cable to the battery.
  6. Calibrate the ODS unit (see ODS UNIT CALIBRATION  ).
  7. After installing the front passenger's weight sensors, confirm proper system operation: Turn the ignition switch ON (II); the SRS indicator should come for about 6 seconds and then go off.
