Circuit Diagram

'04-05 models

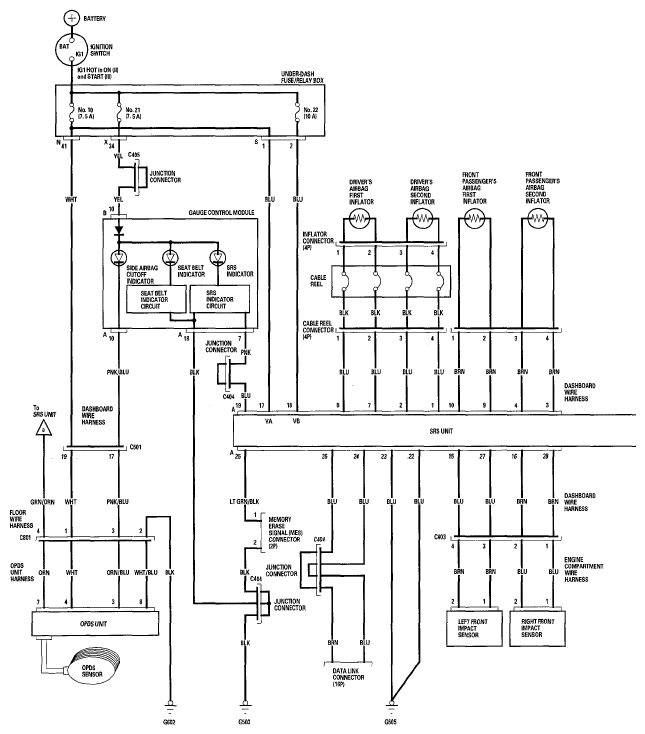

Fig 1: SRS Circuit Diagram - 04-05 Models (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

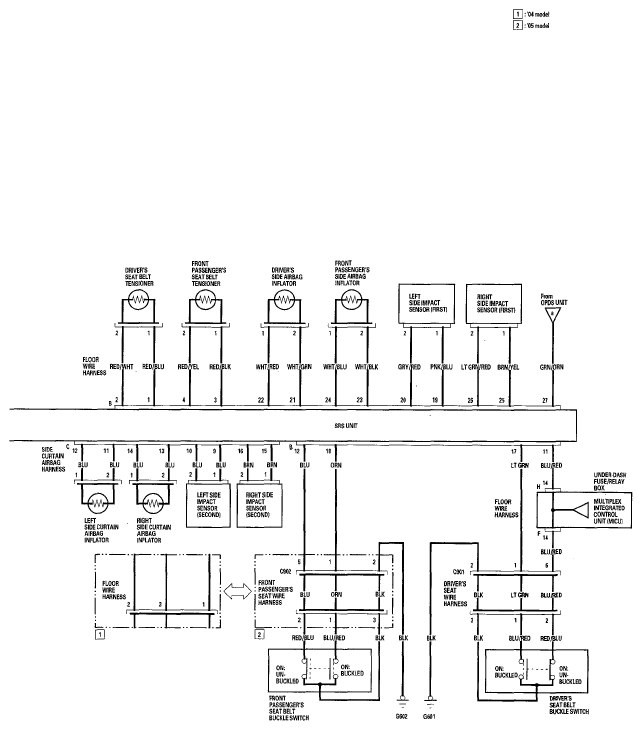

Fig 2: SRS Circuit Diagram - 04-05 Models (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

'06-08 models

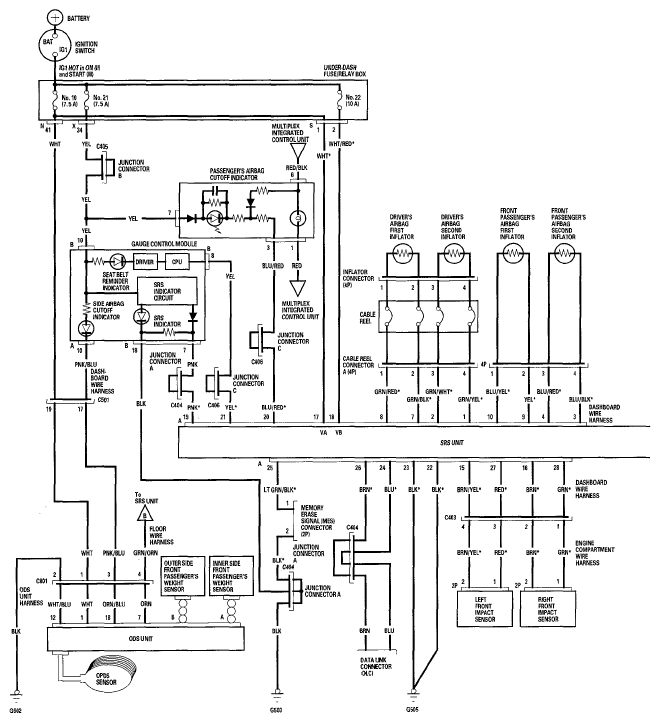

Fig 3: SRS Circuit Diagram - 06-08 Models (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

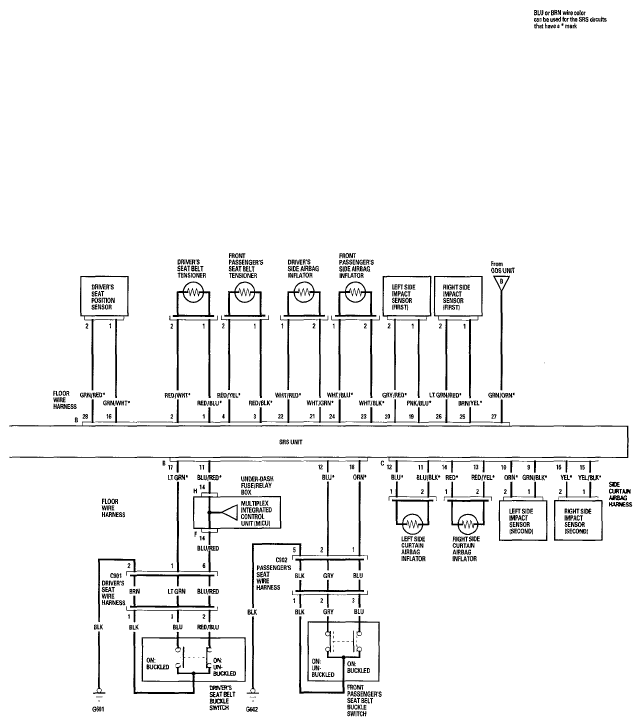

Fig 4: SRS Circuit Diagram - 06-08 Models (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
