C558 (Junction Connector) ('06: USA, Navigation; '07-'08) Connector End View
C558 (Junction Connector) ('06: USA, Navigation; '07-'08) Connector End View

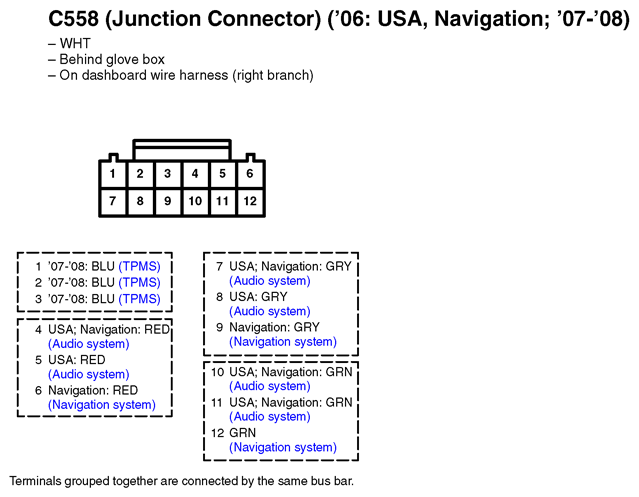

Fig 1: C558 (Junction Connector) ('06: USA, Navigation; '07-'08) Connector End View
