Starter Subharness

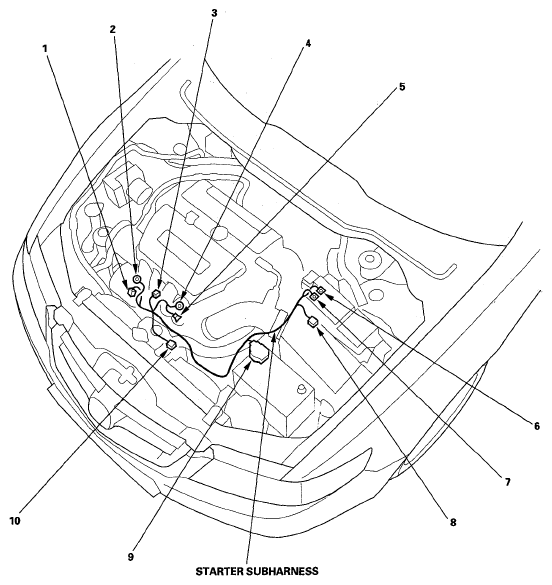

STARTER SUBHARNESS REFERENCE
| Connector or Terminal | Ref | Cavities | Location | Connects to |
|---|---|---|---|---|
| Alternator | 1 | 4 | Right side of engine compartment | |
| Knock sensor | 3 | 1 | Middle of engine | |
| Starter solenoid | 5 | 1 | Middle of engine | |
| C101 | 10 | 6 | Middle of engine | Engine wire harness (see ENGINE WIRE HARNESS ) |
| C151 | 8 | 1 | Left side of engine compartment | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) ) |
| T101 | 7 | Left side of engine compartment | Under-hood fuse/relay box (see CONNECTOR TO FUSE/RELAY BOX INDEX ). | |
| T102 | 6 | Left side of engine compartment | Under-hood fuse/relay box (see CONNECTOR TO FUSE/RELAY BOX INDEX ). | |
| T103 | 2 | Right side of engine compartment | Alternator | |
| T104 | 4 | Middle of engine | Starter motor | |
| (+) | 9 | Left side of engine compartment | Battery positive terminal |
