Side Curtain Airbag Harness

SIDE CURTAIN AIRBAG HARNESS REFERENCE

Connector or Terminal	Ref	Cavities	Location	Connects to
SRS unit connector C	4	16	Under middle of dash

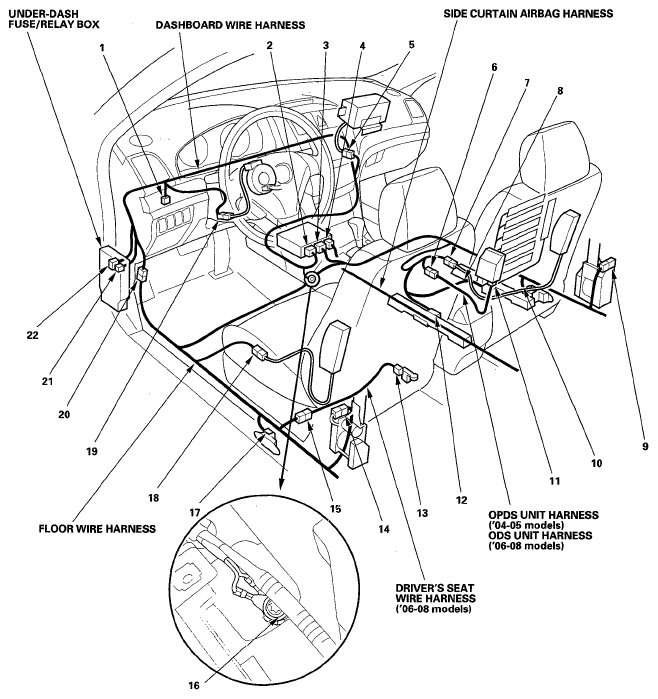

Fig 1: Identifying Dashboard Wire Harness, Floor Wire Harness And Driver's Wire Harness Location

Courtesy of AMERICAN HONDA MOTOR CO., INC.

SIDE CURTAIN AIRBAG HARNESS SPECIFICATION

Connector or Terminal	Ref	Cavities	Location
Left side impact sensor (second)	6	2	Left C-pillar
Driver's side curtain airbag	7	2	Left C-pillar
Front passenger's side curtain airbag	4	2	Right C-pillar
Right side impact sensor (second)	5	2	Right C-pillar
SRS unit connector C	3	16	Under middle of dash

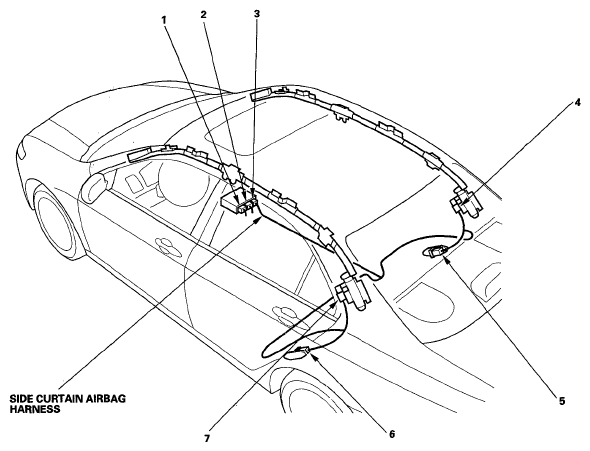

Fig 1: Identifying Side Curtain Airbag Harness Location

Courtesy of AMERICAN HONDA MOTOR CO., INC.
