Shift Solenoid Wire Harness (A/T)

SHIFT SOLENOID WIRE HARNESS (A/T) REFERENCE

Connector or Terminal Ref Cavities Location Connects to
ATF temperature sensor 35 2 Inside transmission housing
Shift solenoid valve A 33 1 Inside transmission housing
Shift solenoid valve B 32 1 Inside transmission housing
Shift solenoid valve C 31 1 Inside transmission housing
Shift solenoid valve D 34 1 Inside transmission housing
Shift solenoid valve E 36 1 Inside transmission housing
C108 38 8 Transmission housing Engine wire harness

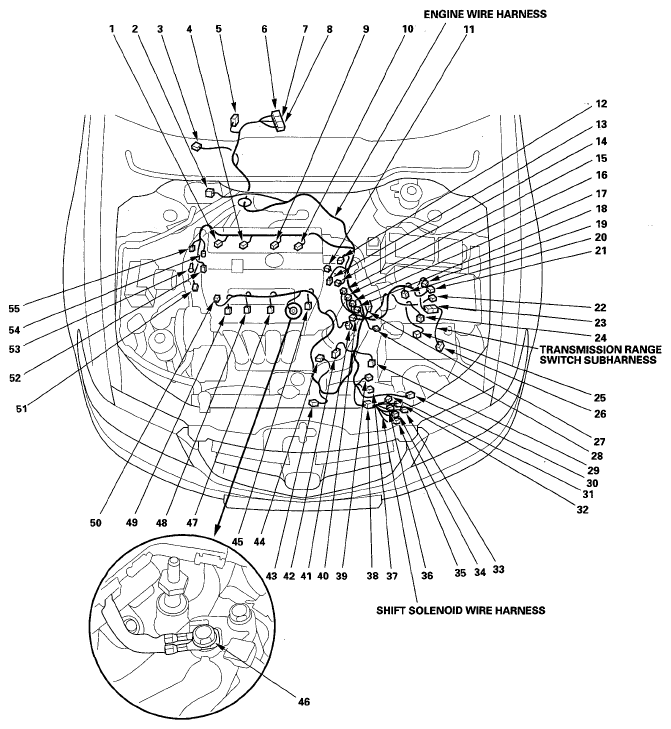

Fig 1: Identifying Shift Solenoid Wire Harness And Transmission Range Switch Subharness Location
G05492754Courtesy of AMERICAN HONDA MOTOR CO., INC.
