Right Rear Door Wire Harness

RIGHT REAR DOOR WIRE HARNESS SPECIFICATION

Connector or Terminal	Ref	Cavities	Location	Connects to
Right rear door speaker	4	2	Right rear door
Right rear door lock actuator	2	2	Right rear door
Right rear door lock knob switch	1	3	Right rear door
Right rear power window motor	6	6	Right rear door
Right rear power window switch	3	6	Right rear door
C781	5	17	Right B-pillar	Floor wire harness (see FLOOR WIRE HARNESS (RIGHT BRANCH) )

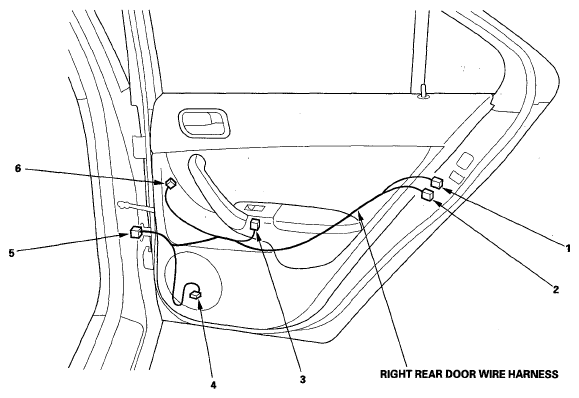

Fig 1: Identifying Right Rear Door Wire Harness Location

Courtesy of AMERICAN HONDA MOTOR CO., INC.
