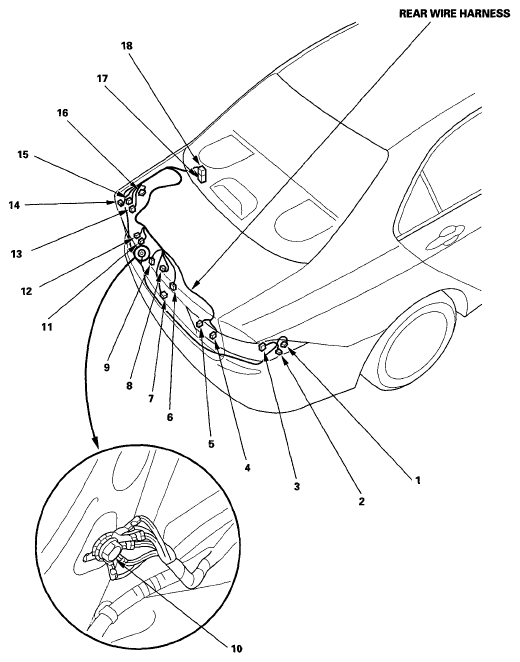

Rear Wire Harness
REAR WIRE HARNESS SPECIFICATION
| Connector or Terminal | Ref | Cavities | Location | L Connects to |
|---|---|---|---|---|
| Left back-up light | 11 | 3 | Left side of trunk lid | |
| Left inner taillight | 12 | 2 | Left side of trunk lid | |
| Left rear turn signal light | 15 | 3 | Left side of trunk | |
| Left rear side marker light | 14 | 2 | Left side of trunk | |
| Left brake light/taillight | 13 | 4 | Left side of trunk | |
| Left license plate light | 9 | 2 | Middle of trunk lid | |
| Right back-up light | 5 | 3 | Right side of trunk lid | |
| Right inner taillight | 4 | 2 | Right side of trunk lid | |
| Right license plate light | 6 | 2 | Middle of trunk lid | |
| Right rear turn signal light | 1 | 3 | Right side of trunk | |
| Right rear side marker light | 2 | 2 | Right side of trunk | |
| Right brake light/taillight | 3 | 4 | Right side of trunk | |
| Trailer lighting connector | 16 | 2 | Left side of trunk | |
| Trunk lid latch switch/opener solenoid | 7 | 3 | Middle of trunk lid | |
| Trunk lid opener switch | 8 | 2 | Middle of trunk lid | |
| C702 (Junction connector) | 18 | 14 | Left side of trunk | Floor wire harness connector C701 via junction connector (see FLOOR WIRE HARNESS (LEFT BRANCH) ) |
| C703 (Junction connector) | 17 | 10 | Left side of trunk | Floor wire harness connector C701 via junction connector (see FLOOR WIRE HARNESS (LEFT BRANCH) ) |
| G701 | 10 | Left side of trunk | Body ground, via rear wire harness |
