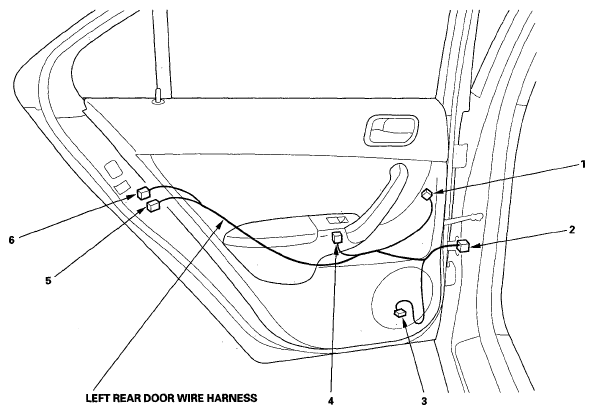

Left Rear Door Wire Harness
LEFT REAR DOOR WIRE HARNESS SPECIFICATION
| Connector or Terminal | Ref | Cavities | Location | Connects to |
|---|---|---|---|---|
| Left rear door speaker | 3 | 2 | Left rear door | |
| Left rear door lock actuator | 5 | 2 | Left rear door | |
| Left rear door lock knob switch | 6 | 3 | Left rear door | |
| Left rear power window motor | 1 | 6 | Left rear door | |
| Left rear power window switch | 4 | 6 | Left rear door | |
| C751 | 2 | 17 | Left B-pillar | Floor wire harness (see FLOOR WIRE HARNESS (LEFT BRANCH) ) |
