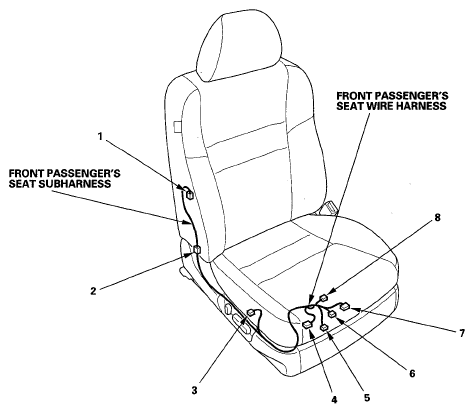

Front Passenger's Seat Subharness (4-Way Adjustable) ('06-08 models)
FRONT PASSENGER'S SEAT SUBHARNESS SPECIFICATION
| Connector or Terminal |
Ref |
Cavities |
Location |
Connects to |
| Front passenger's seat recline motor |
1 |
2 |
Right side of front passenger's seat |
|
| C905 |
2 |
2 |
Right side of front passenger's seat |
Front passenger's seat wire harness |
Courtesy of AMERICAN HONDA MOTOR CO., INC.
