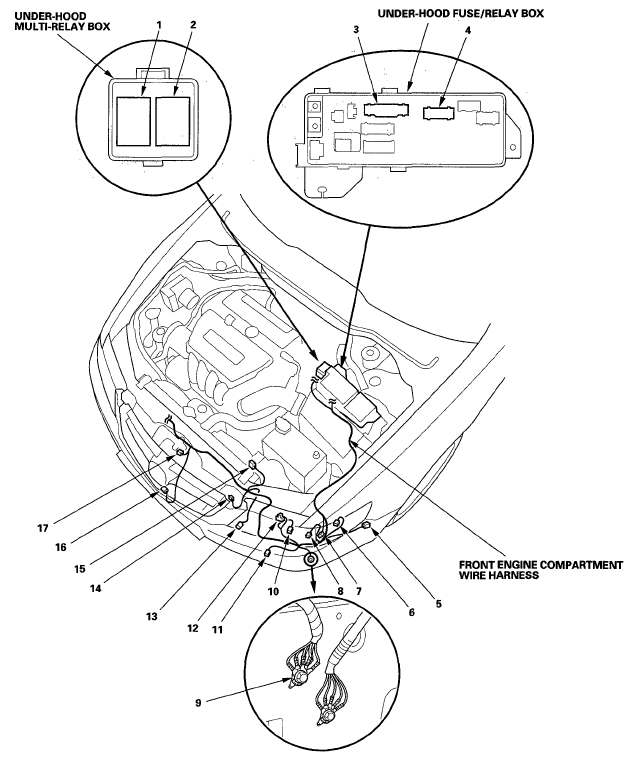

Front Engine Compartment Wire Harness (Left branch)
FRONT ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) REFERENCE
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Daytime running lights relay | 2 | 5 | Left side of engine compartment | Canada models | |
| Engine coolant temperature (ECT) sensor 2 | 13 | 2 | Left side of engine compartment | '06-08 models | |
| Fog light relay | 1 | 5 | Left side of engine compartment | '06-08 models | |
| Security hood switch | 17 | 2 | Behind middle of front bumper | ||
| Low horn | 14 | 1 | Behind middle of front bumper | ||
| Keyless buzzer | 5 | 2 | Behind left front fender | ||
| Left fog light | 11 | 2 | Behind middle of front bumper | '06-08 models | |
| Left front parking light | 6 | 2 | Behind left headlight assembly | ||
| Left front turn signal light | 10 | 2 | Behind left headlight assembly | ||
| Left headlight (high) | 12 | 3 | Behind left headlight assembly | ||
| Left headlight (low) | 8 | 2 | Behind left headlight assembly | ||
| Outside air temperature sensor | 16 | 2 | Middle of front bumper | ||
| Radiator fan motor | 15 | 2 | Left side of engine compartment | ||
| Radiator fan switch | 13 | 2 | Under left side of engine compartment | '04-05 models | |
| Under-hood fuse/relay box connector F (see CONNECTOR TO FUSE/RELAY BOX INDEX ) | 3 | 20 | Left side of engine compartment | ||
| Under-hood fuse/relay box connector H (see CONNECTOR TO FUSE/RELAY BOX INDEX ) | 4 | 14 | Left side of engine compartment | ||
| C301 | 7 | 6 | Left side of engine compartment | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) ) | Canada models |
| G301 | 9 | Behind left side of front bumper | Body ground, via front engine compartment wire harness |
