Floor Wire Harness (Left branch)

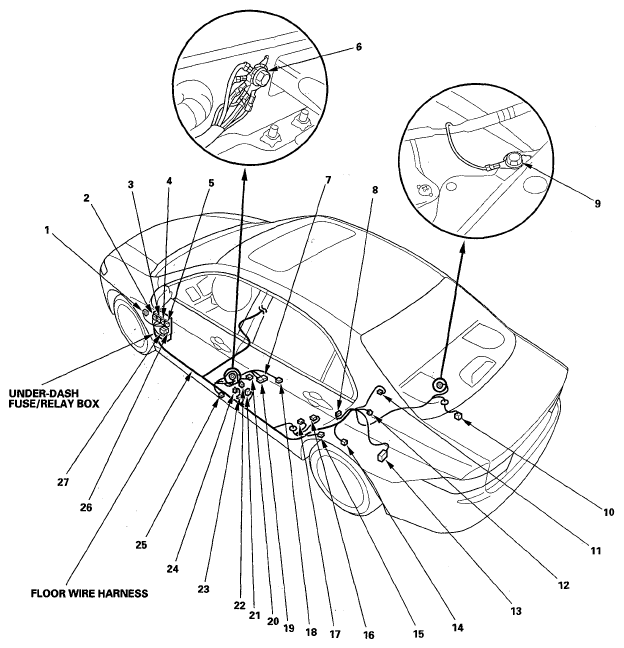

FLOOR WIRE HARNESS (LEFT BRANCH) REFERENCE
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| AM/FM antenna amplifier-rear window defogger coil connector A | 11 | 1 | Left C-pillar | ||
| Driver's door switch | 24 | 1 | Left B-pillar | ||
| Driver's seat belt tensioner | 23 | 4 | Left B-pillar | ||
| Driver's side airbag inflator | 22 | 2 | Under driver's seat | ||
| Driver's side impact sensor | 25 | 2 | Left side of floor | ||
| EVAP canister vent shut valve | 16 | 2 | Under left side of vehicle | ||
| Fuel tank unit | 10 | 5 | Middle front of trunk | ||
| Fuel tank pressure (FTP) sensor | 15 | 3 | Under left side of vehicle | ||
| Left rear door switch | 8 | 1 | Left C-pillar | ||
| Left rear initiator | 14 | 3 | Under left side of vehicle | '07-08 models | |
| Left rear wheel sensor | 15 | 2 | Under left side of vehicle | ||
| Noise condenser | 12 | 2 | Left C-pillar | ||
| Under-dash fuse/relay box connector E (see UNDER-DASH FUSE/RELAY BOX ) | 4 | 16 | Behind left kick panel | ||
| Under-dash fuse/relay box connector F (see UNDER-DASH FUSE/RELAY BOX ) | 3 | 14 | Behind left kick panel | ||
| Under-dash fuse/relay box connector G (see UNDER-DASH FUSE/RELAY BOX ) | 2 | 6 | Under left side of dash | '06-08 models | |
| Under-dash fuse/relay box connector H (see UNDER-DASH FUSE/RELAY BOX ) | 5 | 14 | Behind left kick panel | ||
| Yaw rate-lateral acceleration sensor | 20 | 5 | Left side of floor | ||
| C501 | 26 | 24 | Under left side of dash | Dashboard wire harness (see DASHBOARD WIRE HARNESS (LEFT BRANCH) ) | |
| C502 | 27 | 4 | Under left side of dash | Dashboard wire harness (see DASHBOARD WIRE HARNESS (LEFT BRANCH) ) | |
| C503 | 1 | 8 | Under left side of dash | Driver's door subharness (see DRIVER'S DOOR SUBHARNESS ) | '06-08 models |
| C701 (Junction connector) | 13 | 18 | Left front of trunk | Rear wire harness connectors C702 and C703 via junction connector (see REAR WIRE HARNESS ) | |
| C751 | 21 | 17 | Left B-pillar | Left rear door wire harness (see LEFT REAR DOOR WIRE HARNESS ) | |
| C901 | 7 | 10 | Under driver's seat | Driver's seat wire harness
|
|
| C903 | 18 | 13 | Under driver's seat | Driver's seat wire harness (see DRIVER'S SEAT WIRE HARNESS ('06-08 MODELS) ) | '06-08 models |
| C904 | 17 | 2 | Under driver's seat | Driver's seat wire harness (see DRIVER'S SEAT WIRE HARNESS ('06-08 MODELS) ) | '06-08 models |
| G601 | 6 | Left side of floor | Body ground, via floor wire harness | ||
| G603 | 9 | Middle front of trunk | Body ground, via floor wire harness |
