Engine Ground Cable B

ENGINE GROUND CABLE REFERENCE

Connector or Terminal Ref Cavities Location Connects to
T2 3   Left side of engine compartment Transmission housing
G3 4   Left side of engine compartment Body ground, via engine ground cable B

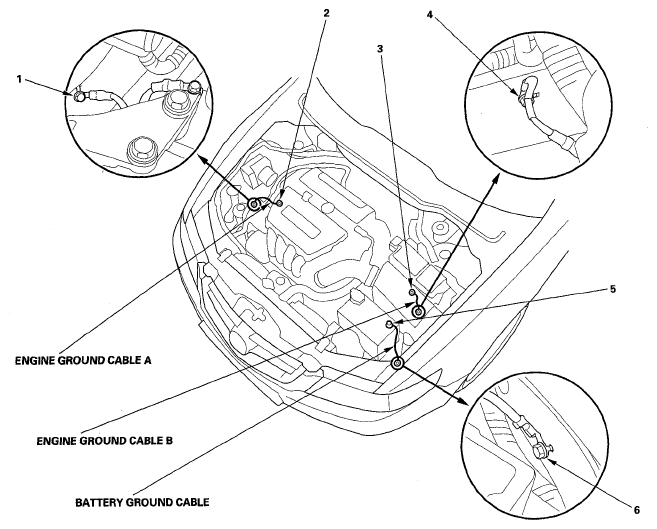

Fig 1: Identifying Engine Ground Cable And Battery Ground Cable Location
G05492751Courtesy of AMERICAN HONDA MOTOR CO., INC.
