Engine Compartment Wire Harness (Right branch)

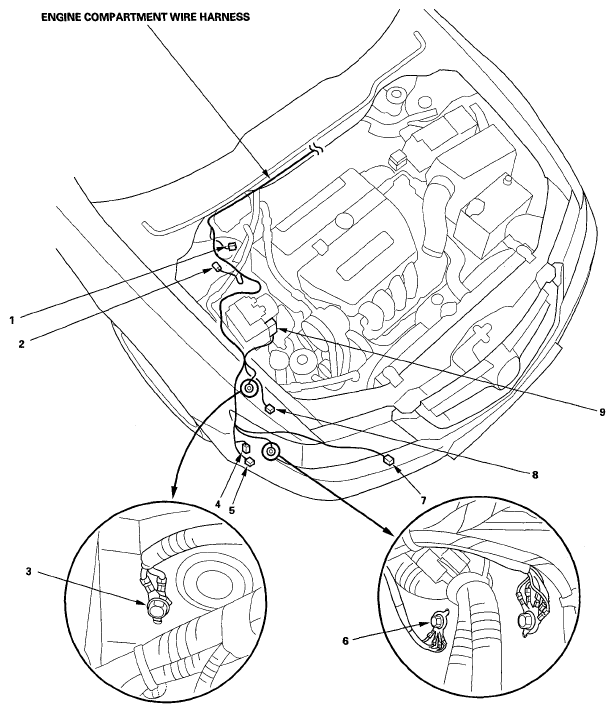

ENGINE COMPARTMENT WIRE HARNESS (RIGHT BRANCH) REFERENCE
| Connector or Terminal |
Ref |
Cavities |
Location |
Connects to |
Notes |
| Power steering pressure (PSP) switch |
2 |
2 |
Right side of engine compartment |
|
|
| Right front impact sensor |
8 |
2 |
Behind right side of engine compartment |
|
|
| Right front impact sensor |
7 |
2 |
Behind middle of front bumper |
|
|
| Right front wheel sensor |
1 |
2 |
Right side of engine compartment |
|
|
| VSA modulator-control unit |
9 |
47 |
Right side of engine compartment |
|
|
| Washer fluid level switch |
5 |
2 |
Behind right side of front bumper |
|
Canada models |
| Windshield washer motor |
4 |
2 |
Behind right side of front bumper |
|
|
| G202 |
6 |
|
Right side of front bumper |
Body ground, via engine compartment wire harness |
|
| G203 |
3 |
|
Right side of engine compartment |
Body ground, via engine compartment wire harness |
|
