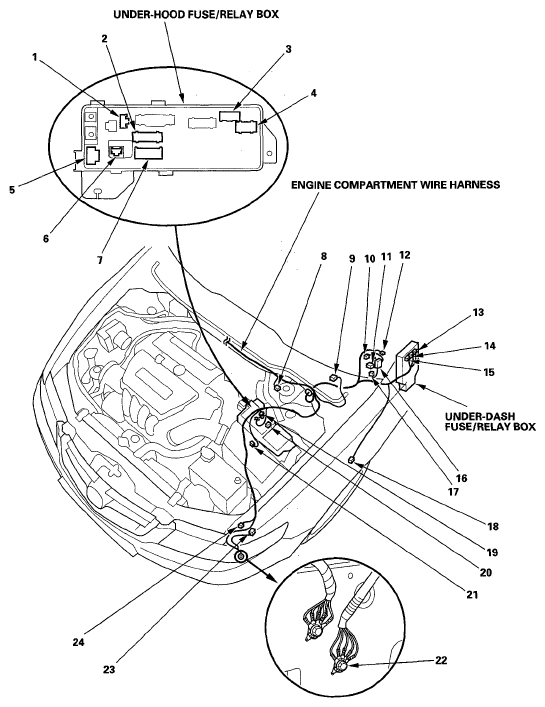

| Brake fluid level switch |
8 |
2 |
Left side of engine compartment |
|
|
| Left front impact sensor |
24 |
2 |
Behind left side of front bumper |
|
|
| Left front initiator |
18 |
3 |
Left fender well |
|
|
| Left front wheel sensor |
20 |
2 |
Left side of engine compartment |
|
|
| Optional connector A |
12 |
2 |
Under left side of dash |
|
|
| Optional connector B |
19 |
2 |
Left side of engine compartment |
|
|
| Under-dash fuse/relay box connector B (see
UNDER-DASH FUSE/RELAY BOX
) |
14 |
6 |
Behind left kick panel |
|
|
| Under-dash fuse/relay box connector C (see
UNDER-DASH FUSE/RELAY BOX
) |
15 |
12 |
Behind left kick panel |
|
|
| Under-dash fuse/relay box connector D (see
UNDER-DASH FUSE/RELAY BOX
) |
13 |
17 |
Behind left kick panel |
|
|
| Under-hood fuse/relay box connector A (ELD unit) (see
CONNECTOR TO FUSE/RELAY BOX INDEX
) |
6 |
3 |
Left side of engine compartment |
|
|
| Under-hood fuse/relay box connector C (see
CONNECTOR TO FUSE/RELAY BOX INDEX
) |
1 |
2 |
Left side of engine compartment |
|
|
| Under-hood fuse/relay box connector D (see
CONNECTOR TO FUSE/RELAY BOX INDEX
) |
7 |
9 |
Left side of engine compartment |
|
|
| Under-hood fuse/relay box connector E (see
CONNECTOR TO FUSE/RELAY BOX INDEX
) |
2 |
16 |
Left side of engine compartment |
|
|
| Under-hood fuse/relay box connector G (see
CONNECTOR TO FUSE/RELAY BOX INDEX
) |
5 |
2 |
Left side of engine compartment |
|
|
| Under-hood fuse/relay box connector J (see
CONNECTOR TO FUSE/RELAY BOX INDEX
) |
3 |
5 |
Left side of engine compartment |
|
|
| Under-hood fuse/relay box connector K (see
CONNECTOR TO FUSE/RELAY BOX INDEX
) |
4 |
10 |
Left side of engine compartment |
|
|
| Windshield wiper motor |
9 |
5 |
Under left side of cowl cover |
|
|
| C151 |
21 |
1 |
Left side of engine compartment |
Starter subharness (see STARTER SUBHARNESS
) |
|
| C301 |
23 |
6 |
Left side of engine compartment Front engine compartment wire harness (see FRONT ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH)
) |
|
Canada models |
| C401 |
16 |
20 |
Under left side of dash Dashboard wire harness (see DASHBOARD WIRE HARNESS (LEFT BRANCH)
) |
|
|
| C401 |
16 |
24 |
Under left side of dash Dashboard wire harness (see DASHBOARD WIRE HARNESS (LEFT BRANCH)
) |
|
|
| C402 |
10 |
1 |
Under left side of dash Dashboard wire harness (see DASHBOARD WIRE HARNESS (LEFT BRANCH)
) |
|
|
| C402 |
10 |
2 |
Under left side of dash Dashboard wire harness (see DASHBOARD WIRE HARNESS (LEFT BRANCH)
) |
|
|
| C403 |
17 |
4 |
Under left side of dash |
Dashboard wire harness (see DASHBOARD WIRE HARNESS (LEFT BRANCH)
) |
|
| C404 |
11 |
13 |
Under left side of dash |
Dashboard wire harness (see DASHBOARD WIRE HARNESS (LEFT BRANCH)
) |
|
| G302 |
22 |
|
Behind left side of front bumper |
Body ground, via engine compartment wire harness |
|
