Driver's Seat Wire Harness ('06-08 models)
DRIVER'S SEAT WIRE HARNESS REFERENCE
| Connector or Terminal | Ref | Cavities | Location | Connects to |
|---|---|---|---|---|
| Driver's seat position sensor | 13 | 2 | Under driver's seat | |
| C904 | 15 | 2 | Under driver's seat | Floor wire harness |

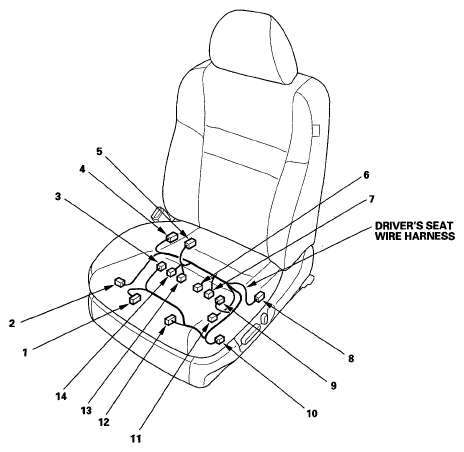

DRIVER'S SEAT WIRE HARNESS SPECIFICATION
| Connector or Terminal | Ref | Cavities | Location | Connects to |
|---|---|---|---|---|
| Driver's power seat adjustment switch | 10 | 12 | Left side of driver's seat | |
| Driver's seat belt buckle switch | 13 | 3 | Under driver's seat | |
| Driver's seat heater | 3 | 4 | Under driver's seat | |
| Driver's seat position sensor | 5 | 2 | Under driver's seat | |
| Front up-down motor/position sensor | 4 | 5 | Under driver's seat | |
| Power seat control unit A | 1 | 40 | Under driver's seat | |
| Power seat control unit B | 12 | 18 | Under driver's seat | |
| Rear up-down motor/position sensor | 8 | 5 | Under driver's seat | |
| Recline motor | 9 | 5 | Under driver's seat | |
| Driver's power seat slide motor | 11 | 2 | Under driver's seat | |
| Driver's power seat slide position sensor | 2 | 3 | Under driver's seat | |
| C901 | 6 | 10 | Under driver's seat | Floor wire harness (see FLOOR WIRE HARNESS (LEFT BRANCH) ) |
| C903 | 7 | 13 | Under driver's seat | Floor wire harness (see FLOOR WIRE HARNESS (LEFT BRANCH) ) |
| C904 | 14 | 2 | Under driver's seat | Floor wire harness (see FLOOR WIRE HARNESS (LEFT BRANCH) ) |
