Driver's Seat Wire Harness ('04-05 models)

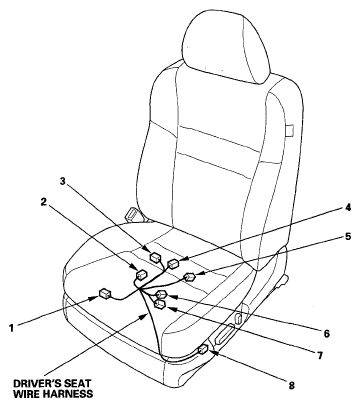

DRIVER'S SEAT WIRE HARNESS SPECIFICATION
| Connector or Terminal | Ref | Cavities | Location | Connects to |
|---|---|---|---|---|
| Driver's power seat adjustment switch | 8 | 12 | Left side of driver's seat | |
| Driver's seat belt buckle switch | 3 | 3 | Under driver's seat | |
| Driver's seat heater | 4 | 4 | Under driver's seat | |
| Driver's power seat front up/down motor | 6 | 2 | Under driver's seat | |
| Driver's power seat rear up/down motor | 7 | 2 | Under driver's seat | |
| Driver's power seat recline motor | 5 | 5 | Under driver's seat | |
| Driver's power slide motor | 1 | 2 | Under driver's seat | |
| C901 | 2 | 10 | Under driver's seat | Floor wire harness (see FLOOR WIRE HARNESS (LEFT BRANCH) ) |
