A/C Wire harness

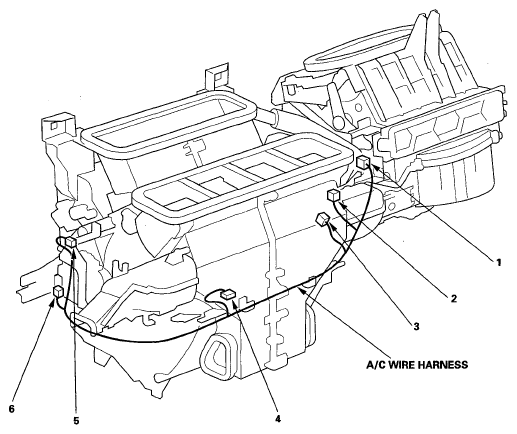

A/C WIRE HARNESS SPECIFICATION
| Connector or Terminal | Ref | Cavities | Location | Connects to |
|---|---|---|---|---|
| Driver's air mix control motor | 5 | 7 | Under middle of dash | |
| Evaporator temperature sensor | 6 | 2 | Under middle of dash | |
| Front passenger's air mix control motor | 3 | 7 | Under middle of dash | |
| Mode control motor | 2 | 7 | Under middle of dash | |
| Recirculation control motor | 1 | 7 | Under middle of dash | |
| C851 | 4 | 21 | Under middle of dash | Dashboard wire harness (see DASHBOARD WIRE HARNESS (LEFT BRANCH) ) |
