Master Cylinder Inspection

  1. Inspect and note these items:
    • Before reassembling, check that all parts are free of dirt and other foreign particles.
    • Do not try to disassemble the master cylinder assembly. Replace the master cylinder assembly with a new part if necessary.
    • Do not allow dirt or foreign matter to contaminate the brake fluid.

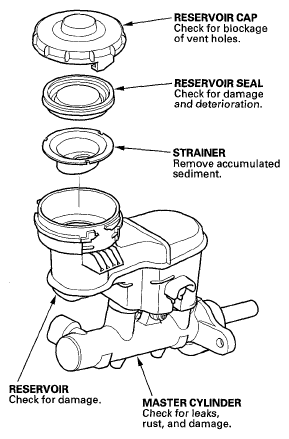

      Fig 1: Identifying Master Cylinder Components
      G05492105Courtesy of AMERICAN HONDA MOTOR CO., INC.
