Front Passenger's Power Seat (4-way Adjustable) ('05-08 models)

  1. Remove the power seat adjustment switch knobs (A) and recline cover from the front passenger's power seat, then remove the two screws and the power seat switch.

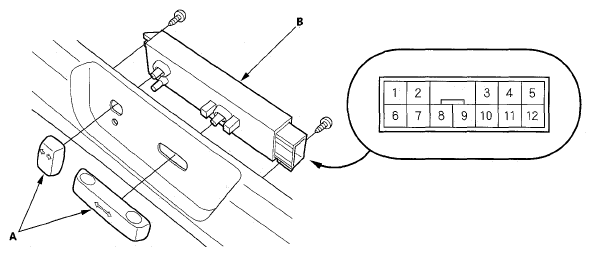

    Fig 1: Identifying Power Seat Adjustment Switch 12P Connector Terminal - Front Passenger's Power Seat
    G05493010Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Disconnect the 12P connector from the power seat adjustment switch (B).
  3. Reinstall the adjustment switch knobs to the switch.
  4. Check for continuity between the terminals in each switch position.
    Fig 2: Checking For Continuity Between Terminals In Each Switch Position
    G05493011Courtesy of AMERICAN HONDA MOTOR CO., INC.

    No. 1,3, 5 and 9 terminals are not used.

  5. If the continuity is not as specified, replace the switch.
