Circuit Diagram

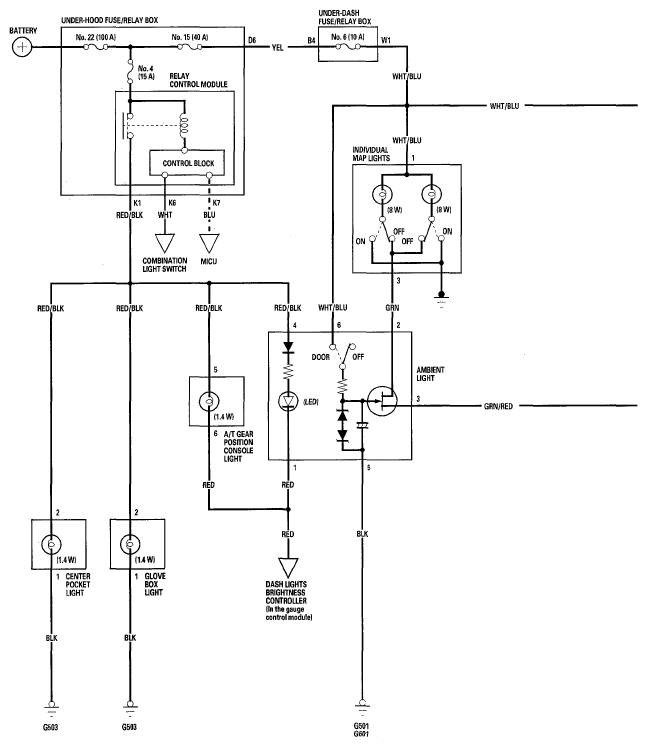

Fig 1: Interior Lights - Circuit Diagram (1 Of 2)

G05492890

Courtesy of AMERICAN HONDA MOTOR CO., INC.

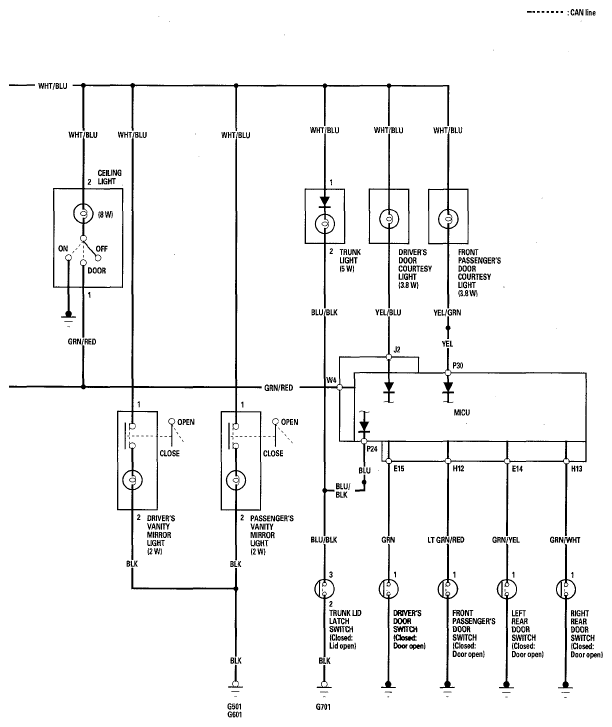

Fig 2: Interior Lights - Circuit Diagram (2 Of 2)

G05492891

Courtesy of AMERICAN HONDA MOTOR CO., INC.
