Circuit Diagram

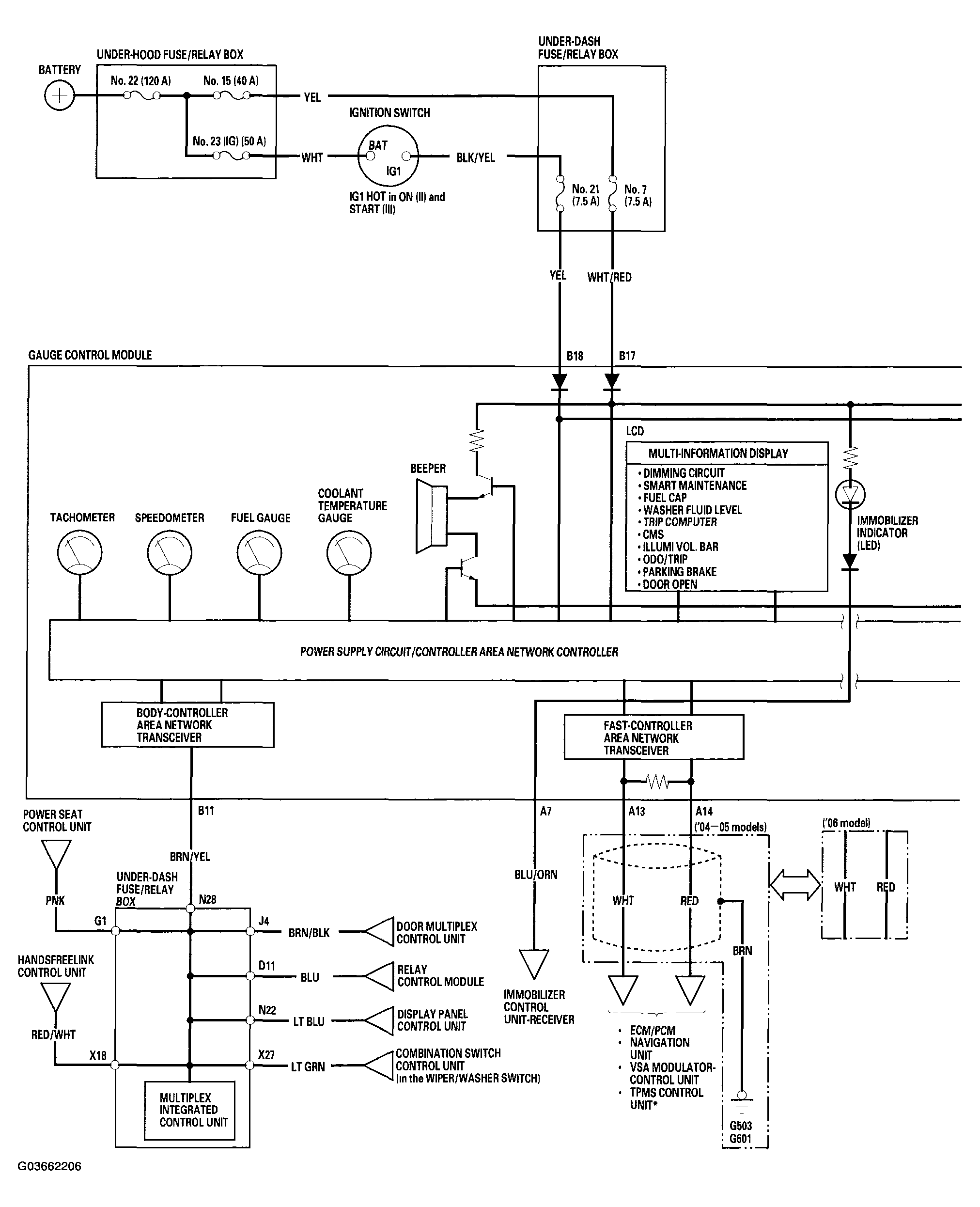

Fig 1: Gauges - Circuit Diagram (1 Of 8)

G03662206

Courtesy of AMERICAN HONDA MOTOR CO., INC.

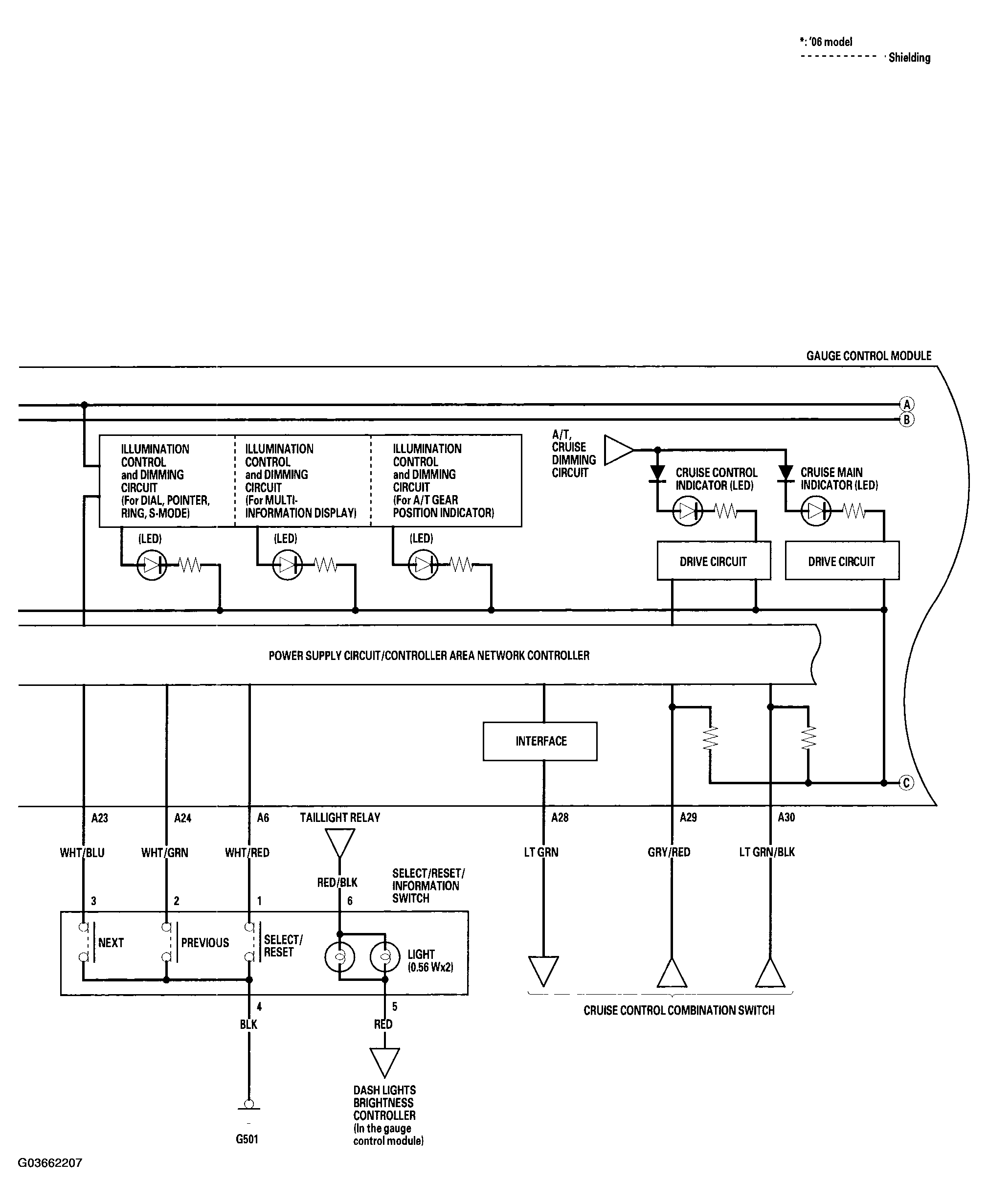

Fig 2: Gauges - Circuit Diagram (2 Of 8)

G03662207

Courtesy of AMERICAN HONDA MOTOR CO., INC.

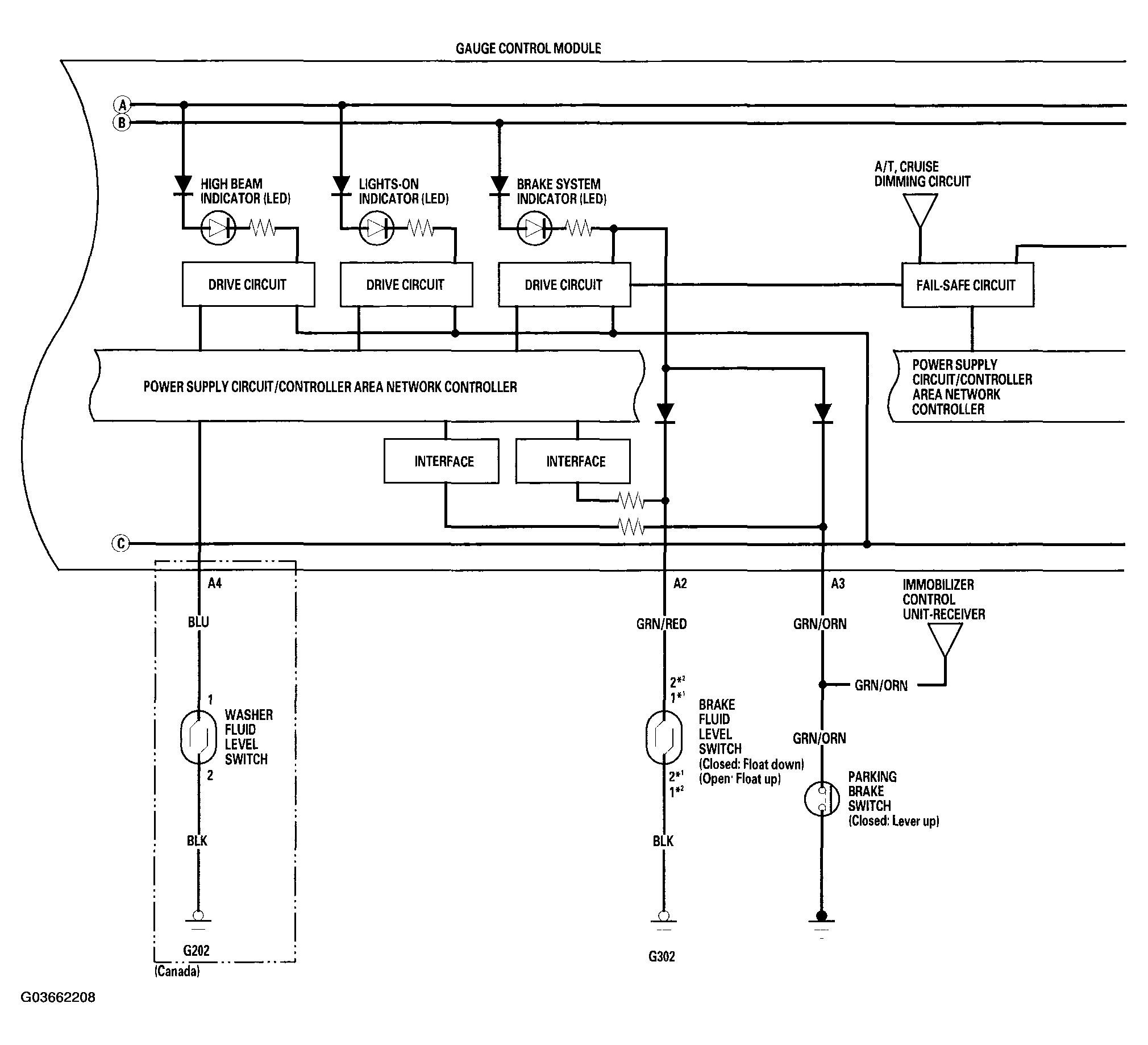

Fig 3: Gauges - Circuit Diagram (3 Of 8)

G03662208

Courtesy of AMERICAN HONDA MOTOR CO., INC.

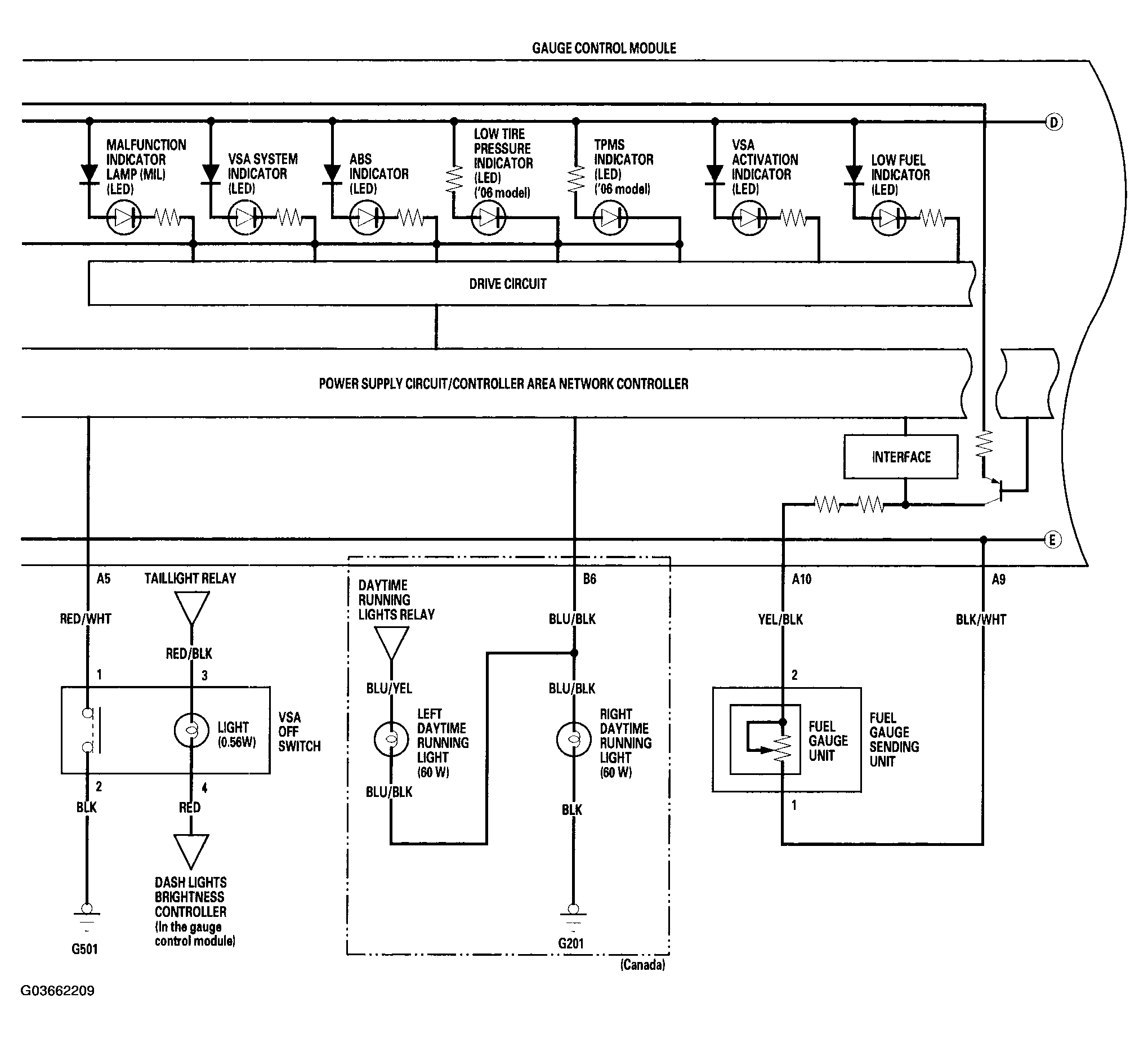

Fig 4: Gauges - Circuit Diagram (4 Of 8)

G03662209

Courtesy of AMERICAN HONDA MOTOR CO., INC.

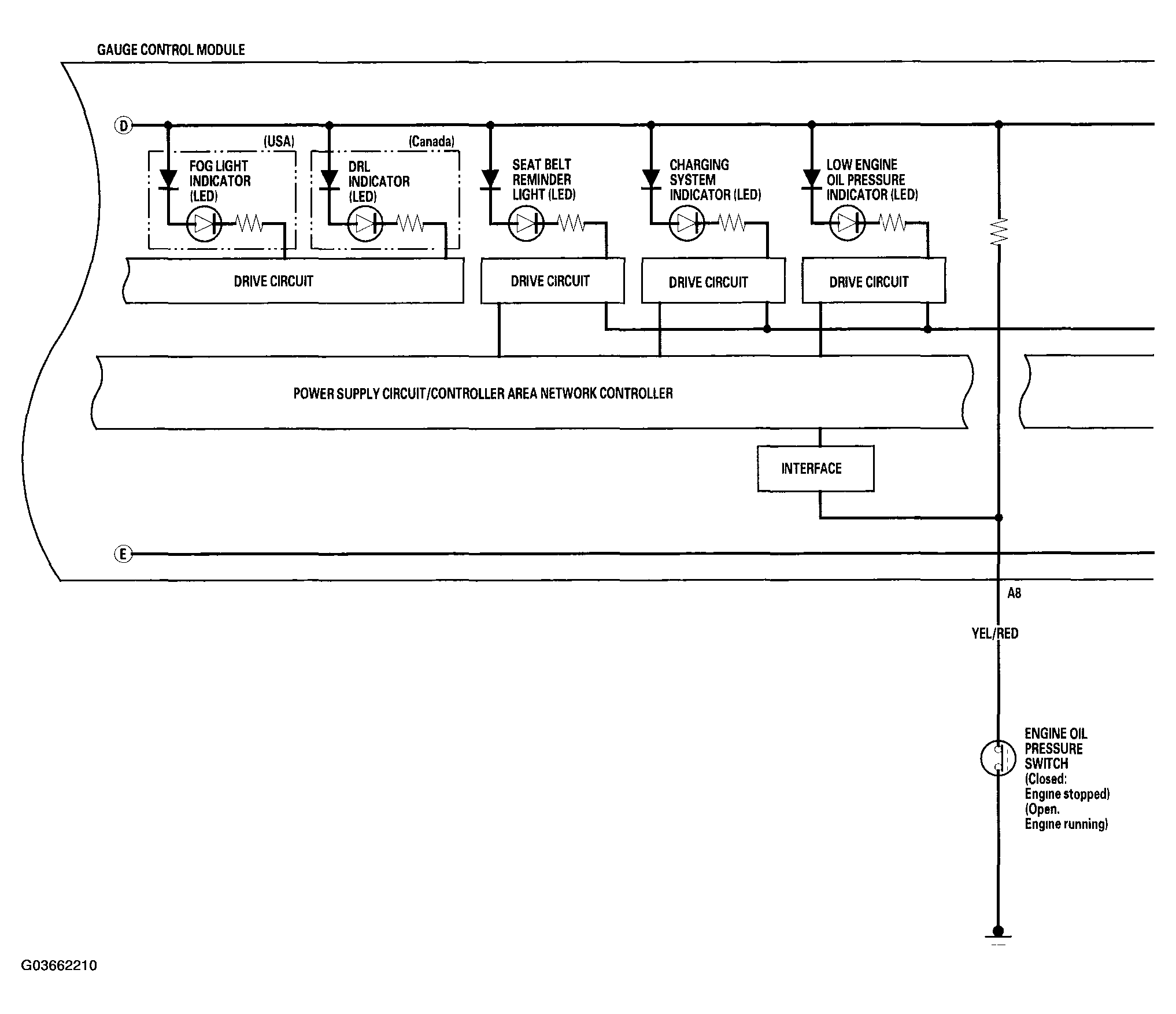

Fig 5: Gauges - Circuit Diagram (5 Of 8)

G03662210

Courtesy of AMERICAN HONDA MOTOR CO., INC.

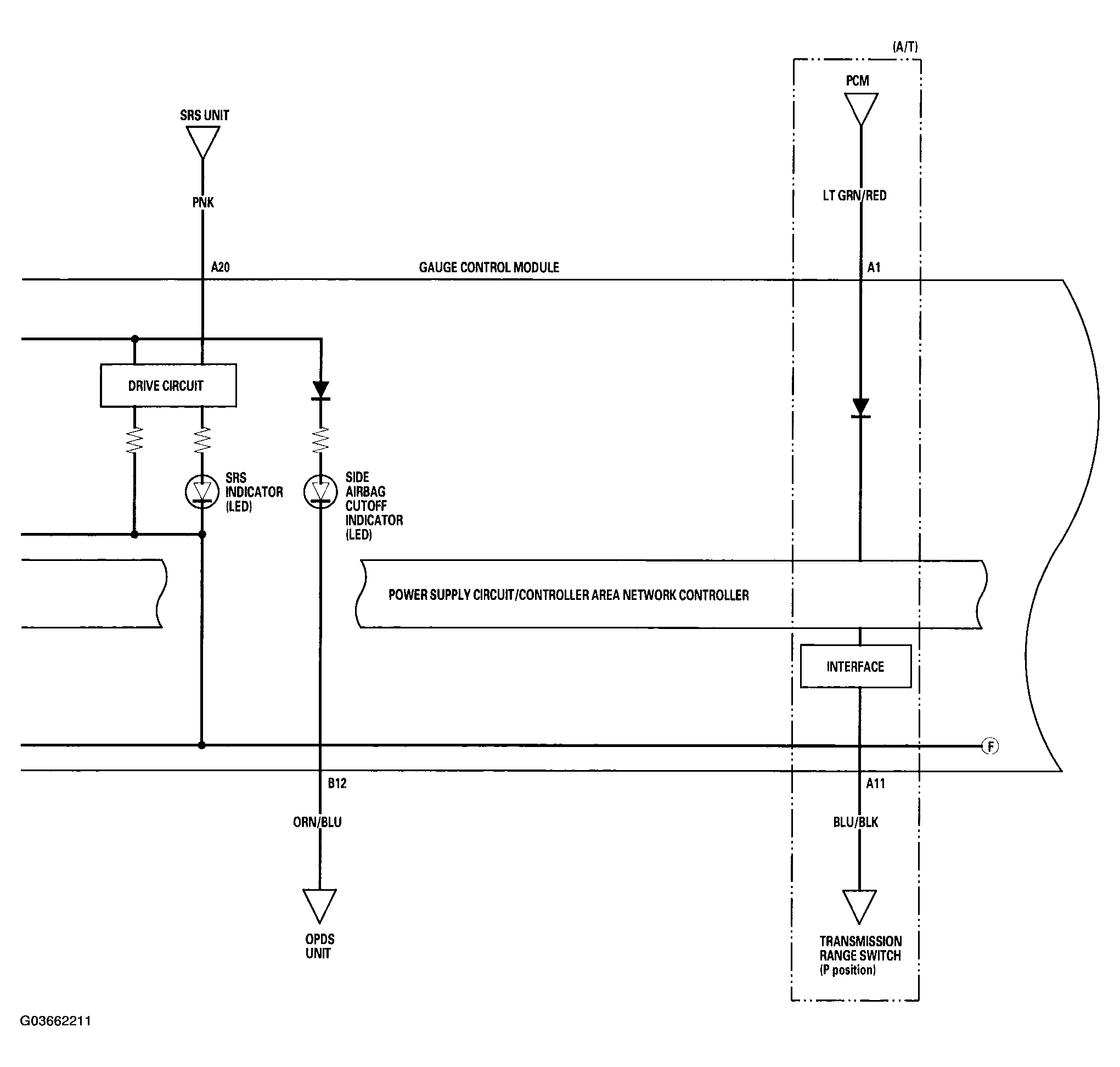

Fig 6: Gauges - Circuit Diagram (6 Of 8)

G03662211

Courtesy of AMERICAN HONDA MOTOR CO., INC.

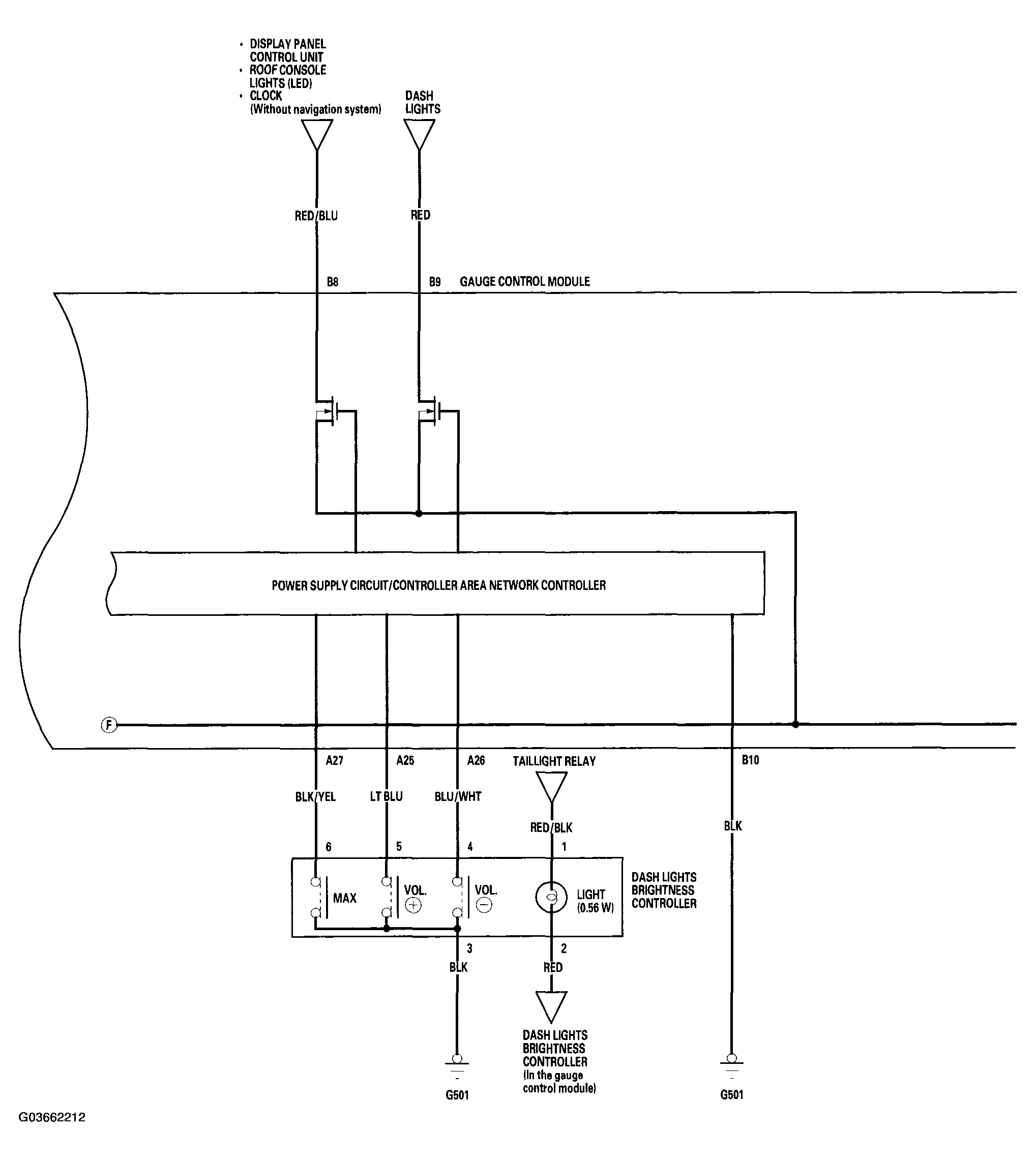

Fig 7: Gauges - Circuit Diagram (7 Of 8)

G03662212

Courtesy of AMERICAN HONDA MOTOR CO., INC.

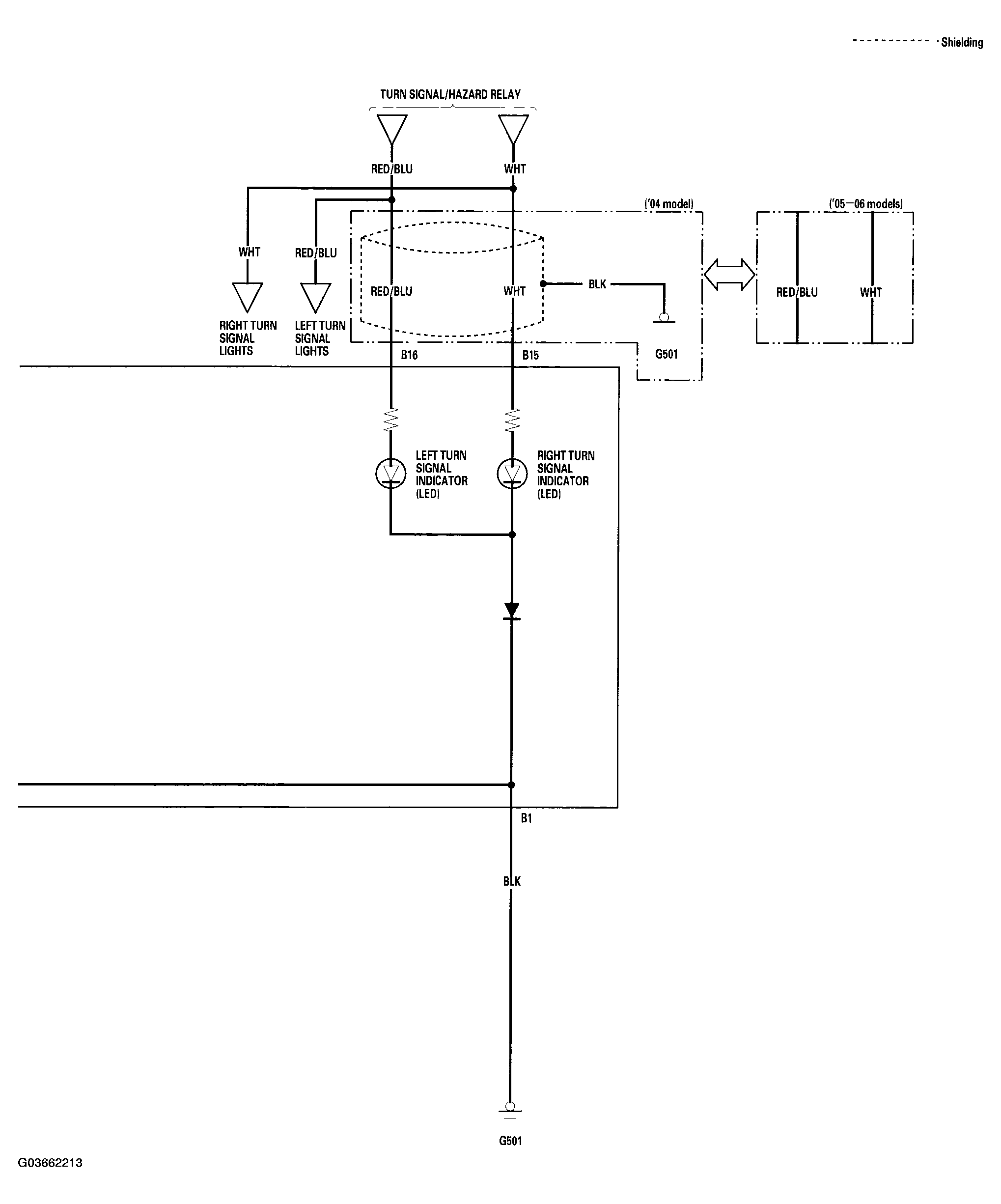

Fig 8: Gauges - Circuit Diagram (8 Of 8)

G03662213

Courtesy of AMERICAN HONDA MOTOR CO., INC.
