Driver's Airbag Replacement: Removal

  1. Disconnect the battery negative cable and wait at least 3 minutes before beginning work.
  2. Remove the access panel (A) from the steering wheel, then disconnect the connector between the cable reel 4P connector (B) and driver's airbag 4P connector (C).

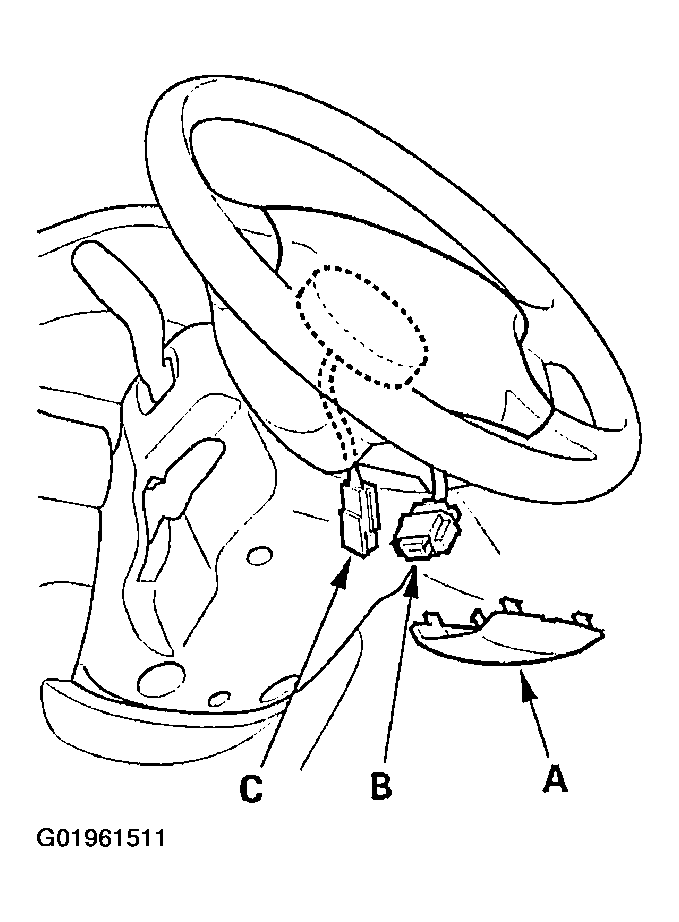

    Fig 1: Removing Access Panel From Steering Wheel
    G01961511
  3. Remove the two Torx bolts (A) using a Torx T30 bit. Then remove the driver's airbag (B).

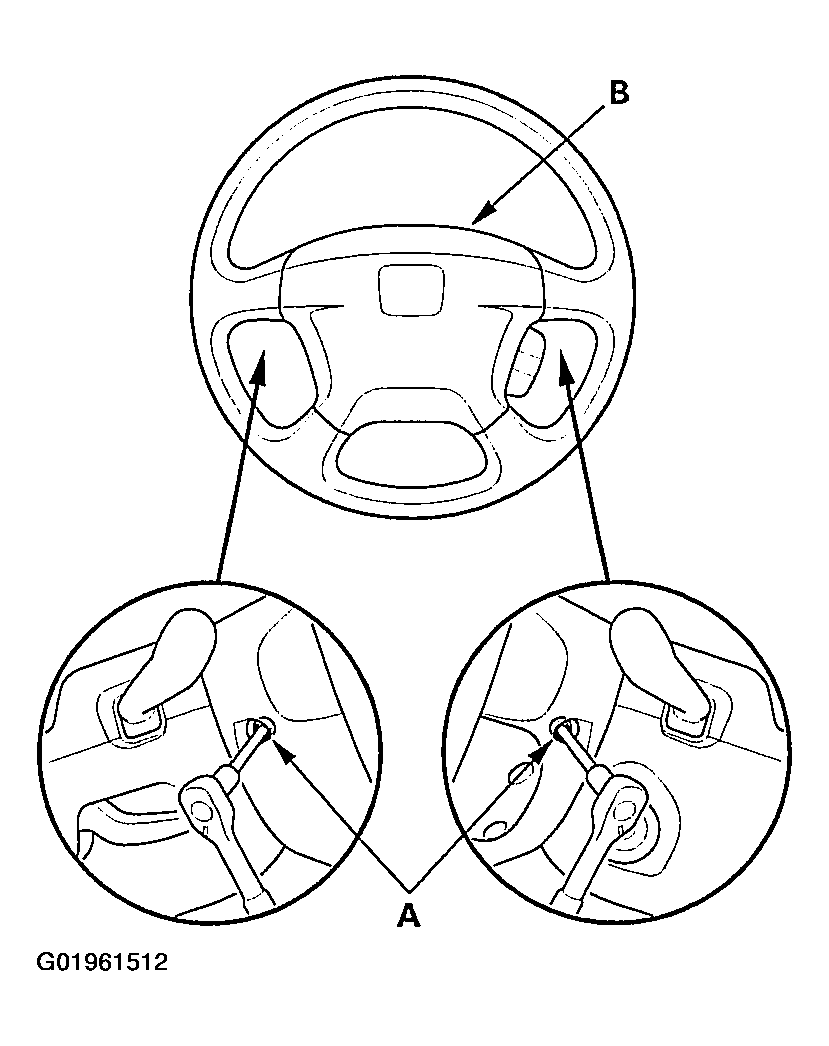

    Fig 2: Removing Torx Bolts
    G01961512
