Instrument Panel Removal/Installation

NOTE:
  • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Take care not to scratch the dashboard and related parts.
  1. Tilt the steering column down.
  2. Remove the steering column upper cover (see step 4 on REMOVAL ).
  3. Remove the instrument panel (A).
    1. Remove the screws (B).
    2. Gently pull out along the bottom to release the clips (C) and hooks (D).
    3. Gently pull out the upper portion of the panel.

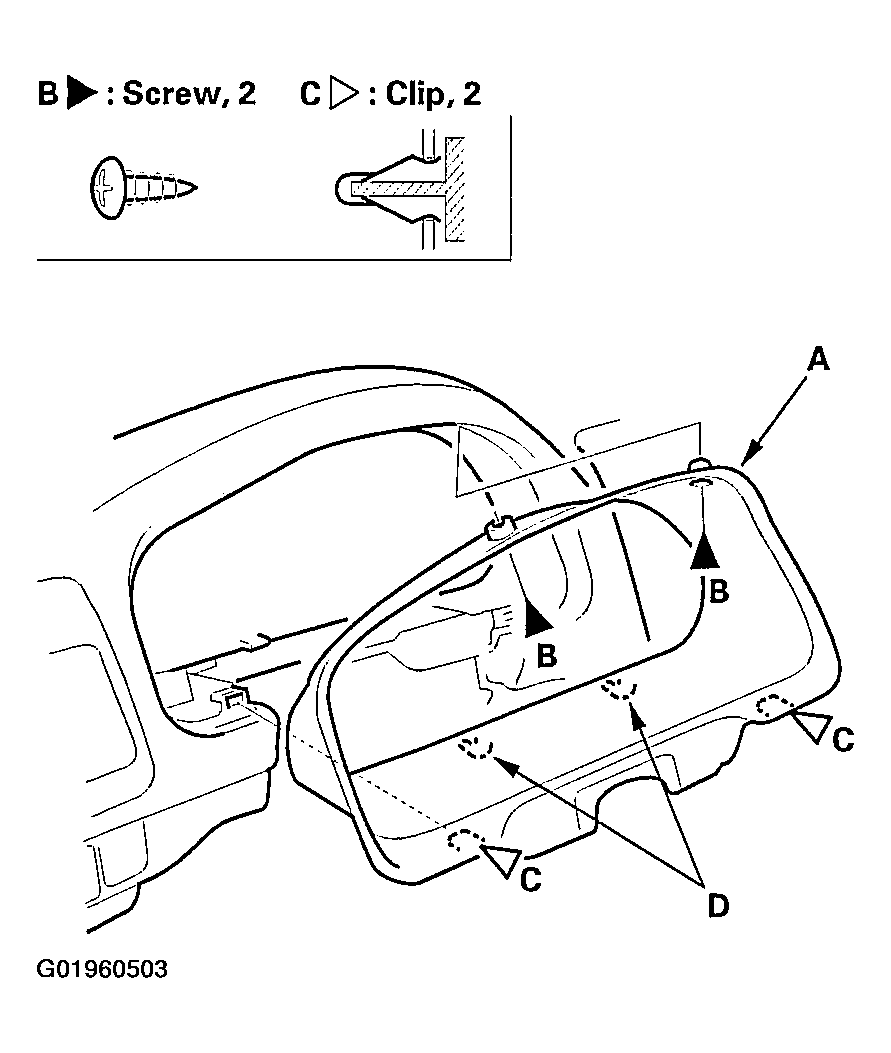

    Fig 1: Removing Instrument Panel
    G01960503
  4. Install the panel in the reverse order of removal.
