Cylinder Head Cover Removal

  1. Remove the intake manifold cover (see step 1 on REMOVAL - K20A3 ENGINE ).
  2. Remove the four ignition coils (see IGNITION COIL REMOVAL/INSTALLATION ).
  3. Remove the bolt (A) securing the power steering hose bracket.

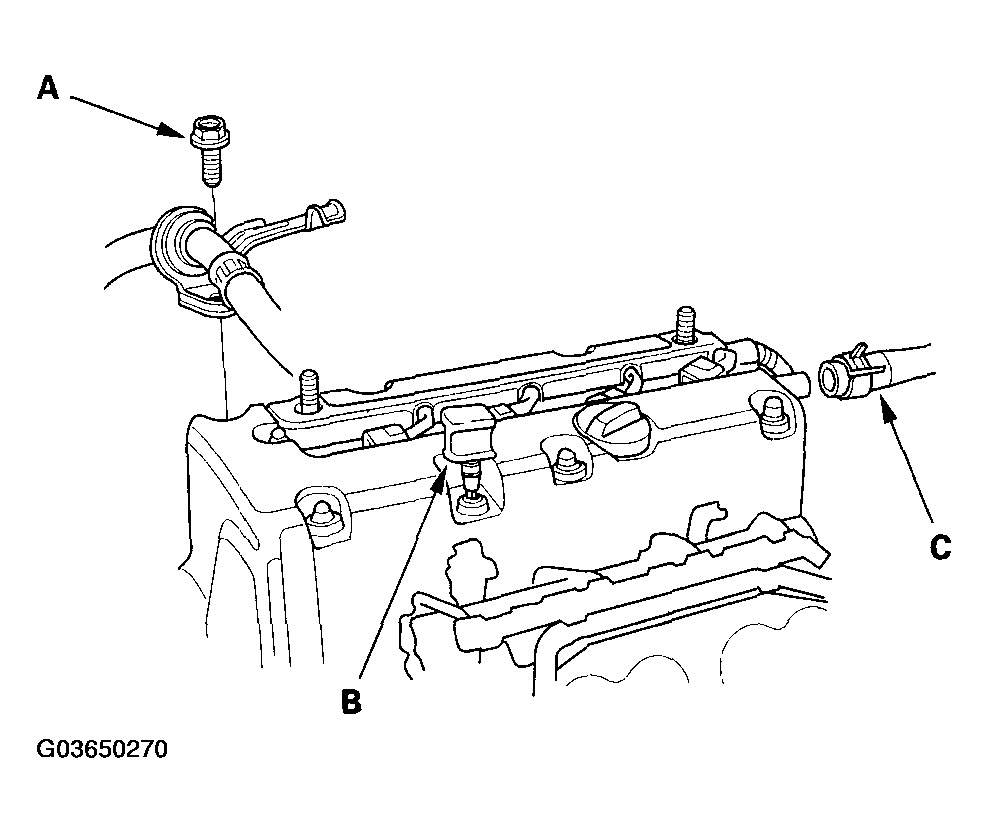

    Fig 1: Removing Power Steering Hose Bracket
    G03650270Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the dipstick (B) and breather hose (C).
  5. Remove the cylinder head cover.

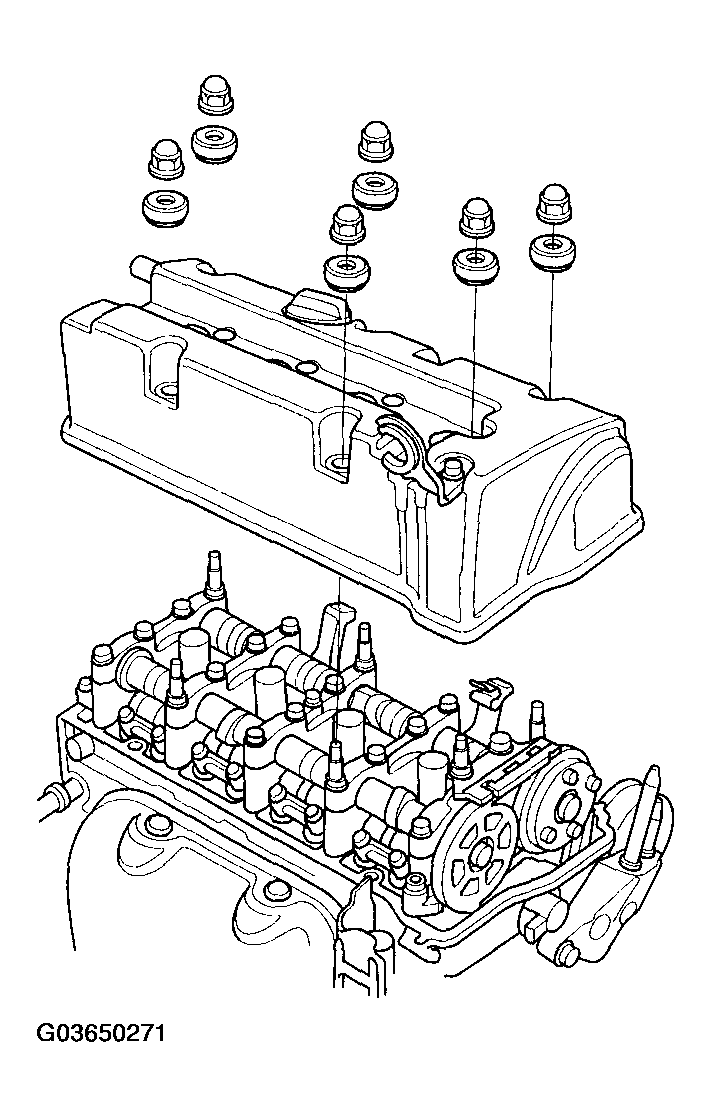

    Fig 2: Removing Cylinder Head Cover
    G03650271Courtesy of AMERICAN HONDA MOTOR CO., INC.
