Select/Reset Switch Test

  1. Remove the instrument panel (see INSTRUMENT PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the 5P connector (A) from the select/reset switch (B).

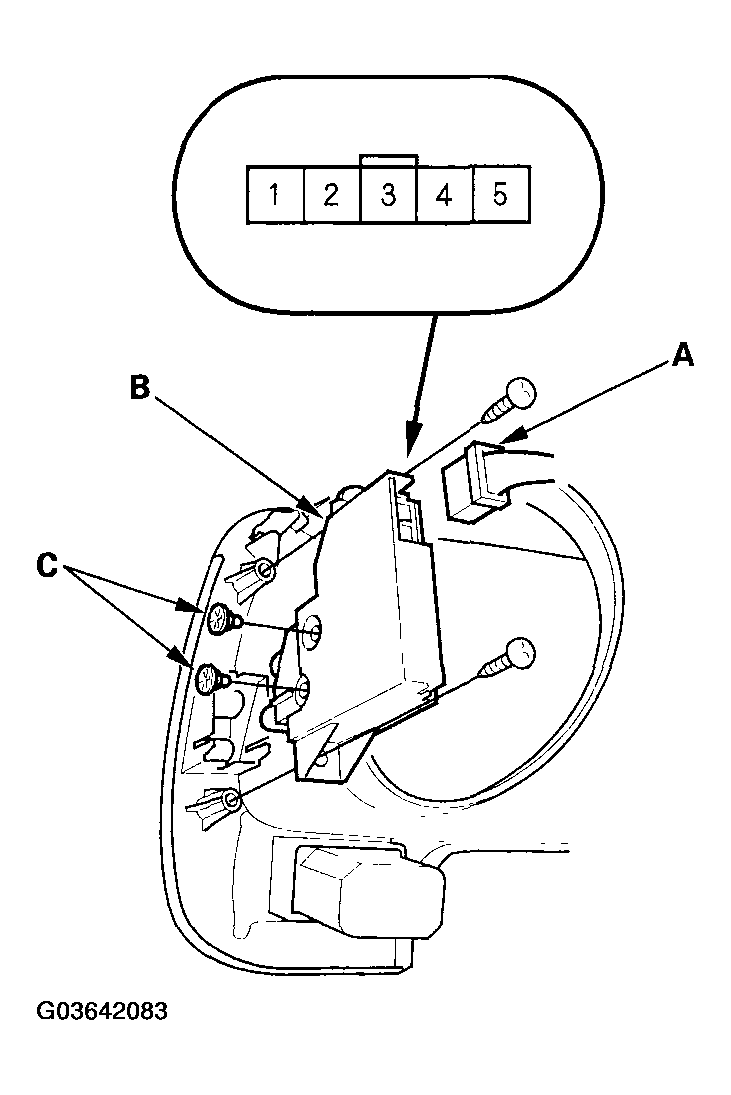

    Fig 1: Disconnecting 5P Connector From Select/Reset Switch
    G03642083Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the terminals in each switch position according to Fig 2 .
    Fig 2: Checking Continuity Between Terminals In Switch Position Chart
    G03642084Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the continuity is not as specified, replace the bulb(s) (C) or remove the two screws, and replace the switch.
