'03 Model

NOTE: For '04-06 models, always replace the gauge as an assembly.
  1. Remove the gauge assembly (see GAUGE ASSEMBLY REPLACEMENT  ).
  2. Remove the cover (A) from the back side of the gauge assembly (B).

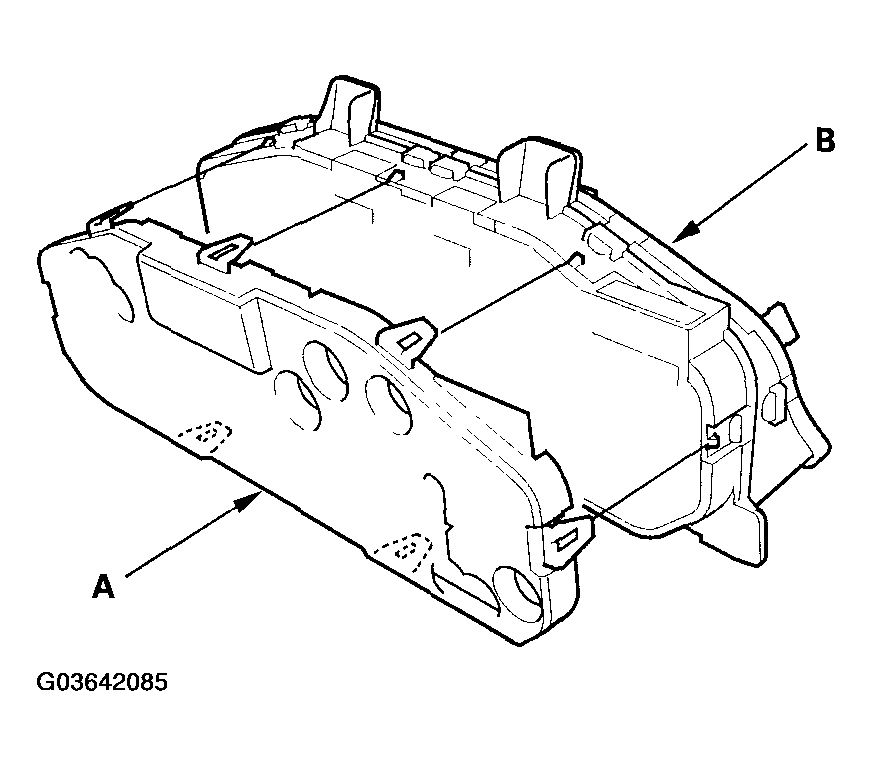

    Fig 1: Removing Cover From Back Side Of Gauge Assembly
    G03642085Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the meter lens and visor (A) from the gauge assembly (B).

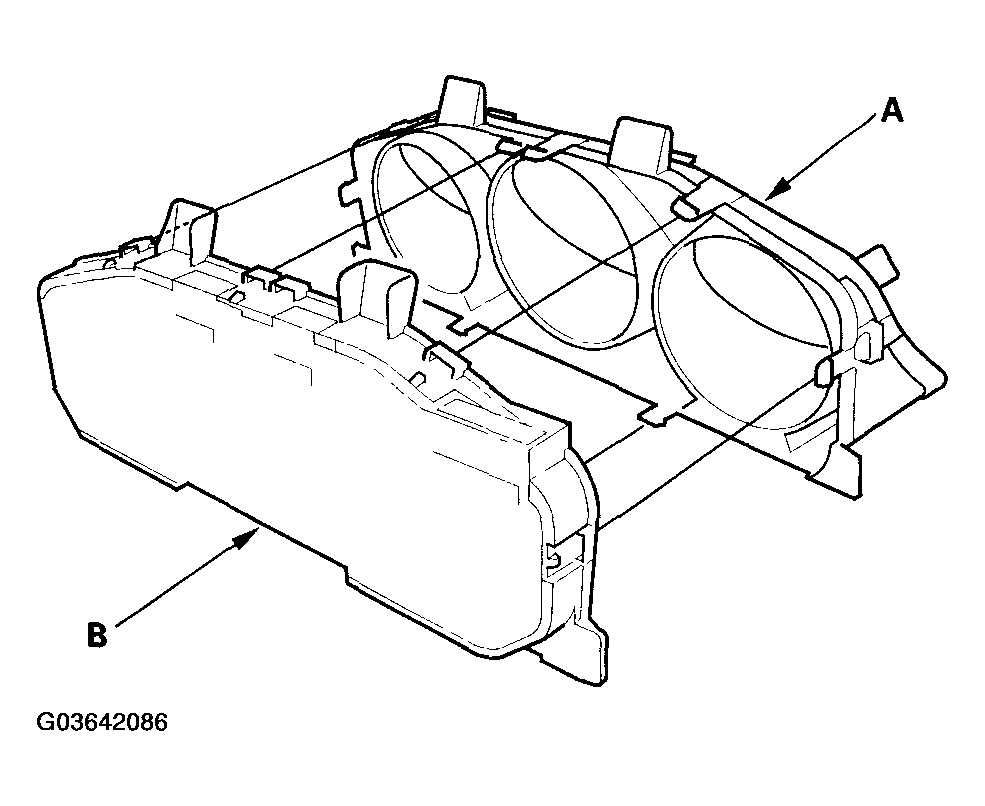

    Fig 2: Removing Meter Lens And Visor From Gauge Assembly
    G03642086Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Pry up the tabs with a screwdriver.

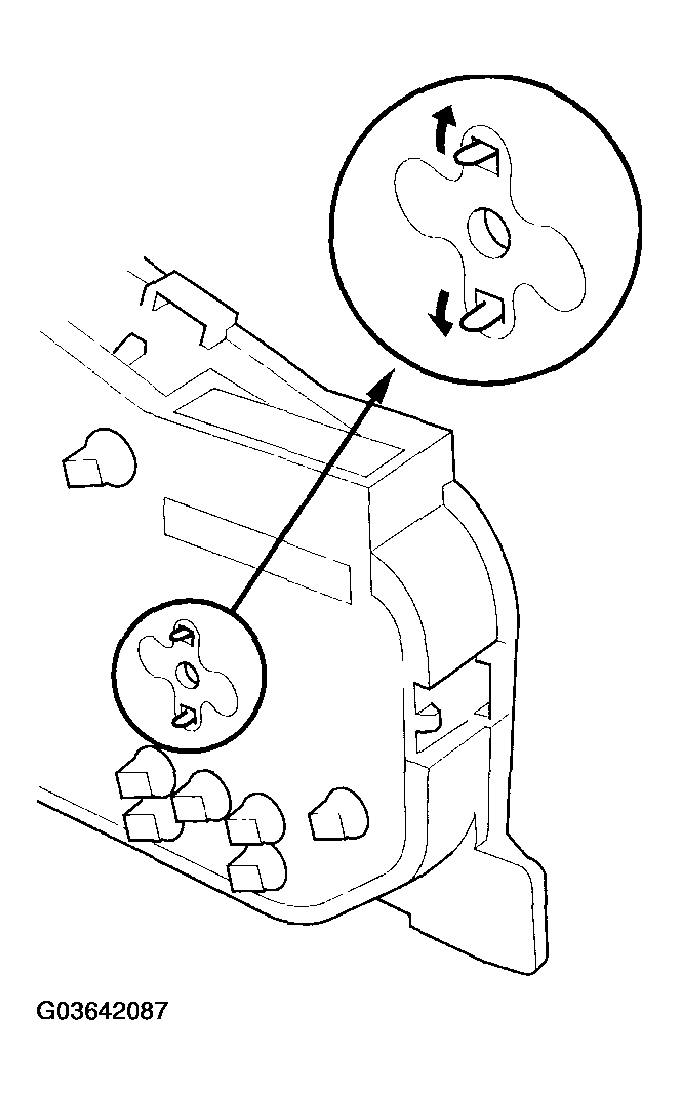

    Fig 3: Prying Tabs With Screwdriver
    G03642087Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the meter assembly.

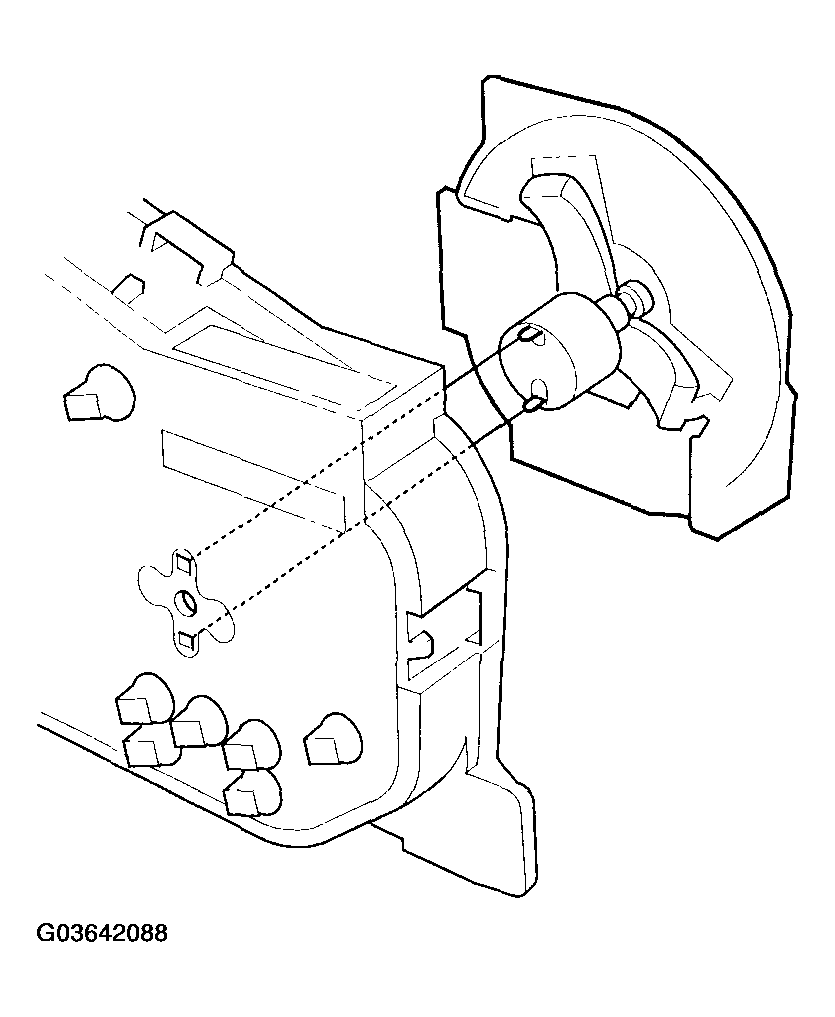

    Fig 4: Removing Meter Assembly
    G03642088Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Install the parts in the reverse order of removal.
